Swagelok Co.
Long Automatic Tube Butt Weld VCR® Gland
Material: 316L SS, VCR Size: 3/4”, Connection 2: Tube OD 18 mm, Cleaning Process: Standard process
Swagelok® VCR gland with a long auto-tube butt weld on one end.
Cleaning Process:
·
VCR Size
3/4”
·
Connection 2
Tube OD 18 mm
·
Material
316L SS
·
Material Specification
ASME SA479, ASTM A276
·
Nominal Wall Thickness
1.5 mm
·
Cleaning Process Remarks
Standard Cleaning and Packaging (SC-10). Components are cleaned to remove oils, grease and loose particles.
·

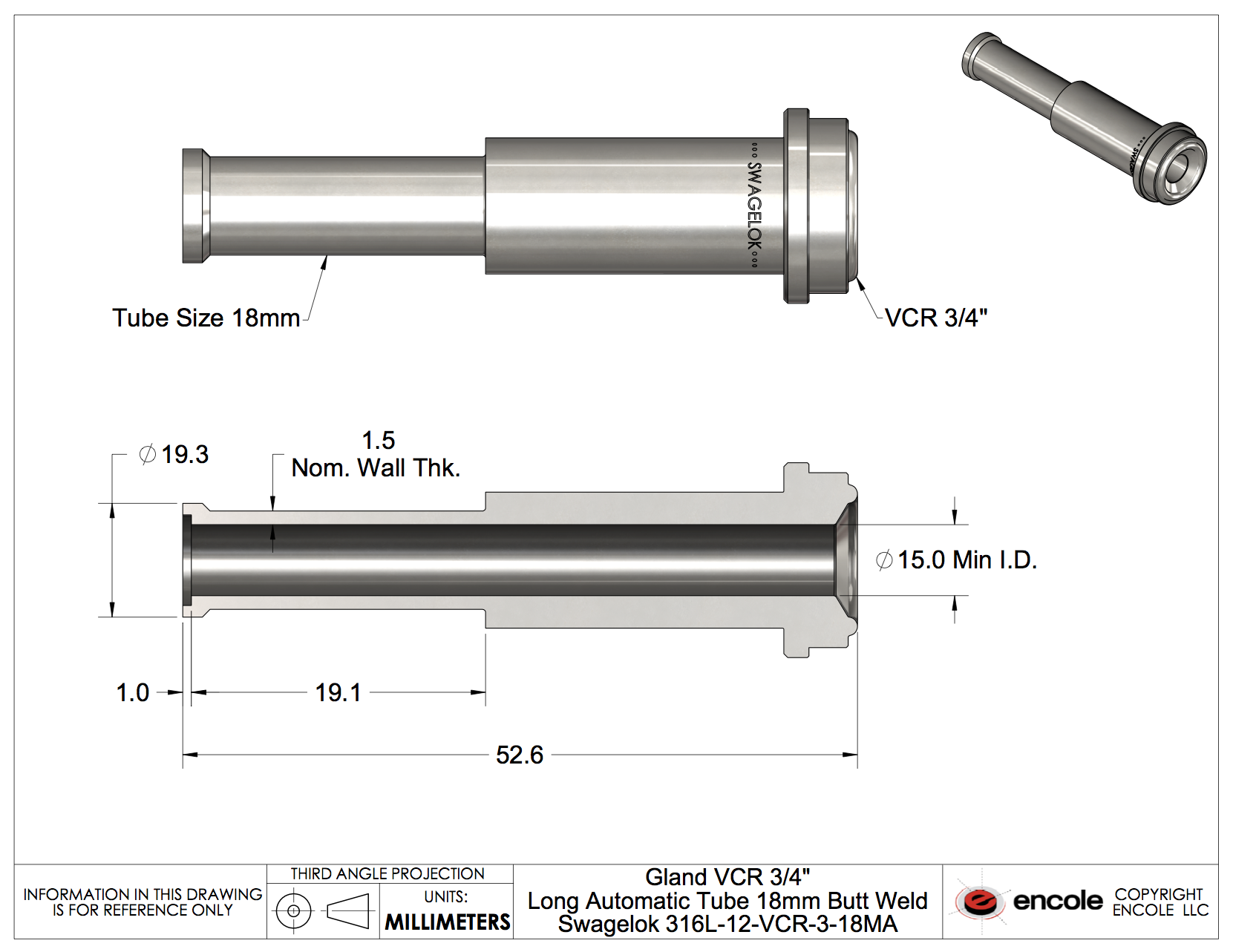

The information in this Drawing and 3-D models is provided for reference only.
Details
Product Drawings and CAD Models Disclaimer
Manufacturing processes and resulting tolerances may result in variations in the specifications provided. Many manufacturers consider their GD&T proprietary and do not provide this to Encole. While we believe the information to be generally correct, it is subject to change without notice and is not guaranteed. Drawings and CAD models are prepared by the Original Manufacturers or CAD expert contibutors or Encole staff.
Part number: 1017E909
Manufacturer's part number:
316L-12-VCR-3-18MA
316L-12-VCR-3-18MA
Manufacturer:
Swagelok Co.
Swagelok Co.
