VCR® Female Nut
Material: 316 SS, VCR Size: 1/4”, Tube Opening Diameter: 0.36”
Swagelok® VCR female nut to fit over a male VCR end.

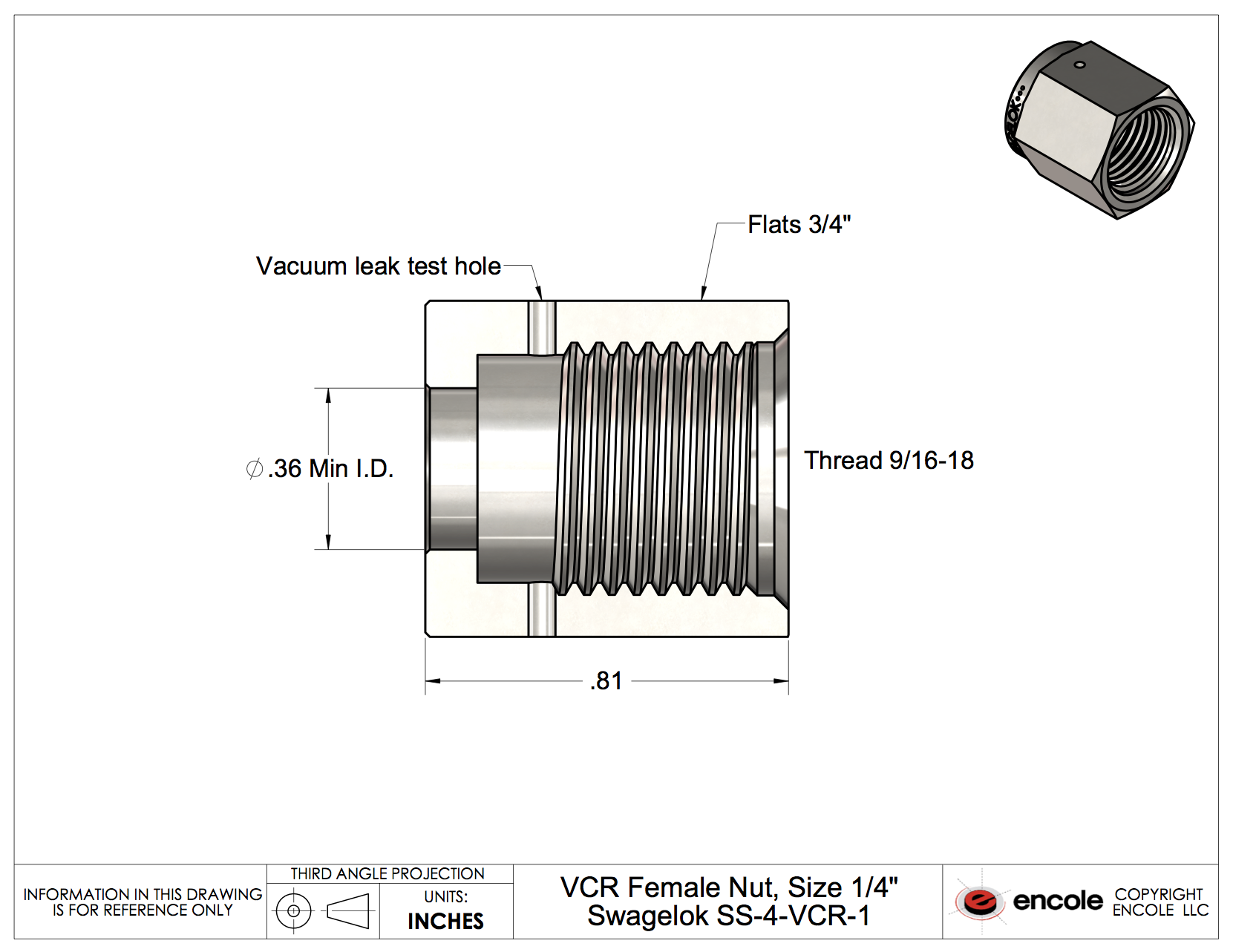

Product Drawings and CAD Models Disclaimer
Manufacturing processes and resulting tolerances may result in variations in the specifications provided. Many manufacturers consider their GD&T proprietary and do not provide this to Encole. While we believe the information to be generally correct, it is subject to change without notice and is not guaranteed. Drawings and CAD models are prepared by the Original Manufacturers or CAD expert contibutors or Encole staff.
