Swagelok Co.
VCR® Short Male Nut
Material: 316 SS, VCR Size: 1/4”, Length: 0.54”
Swagelok® VCR nut to form a swivel male VCR connection. For use with short gland.
·
VCR Size
1/4”
·
Material
316 SS
·
Length
·
Material Specification
ASME SA479, ASTM A276

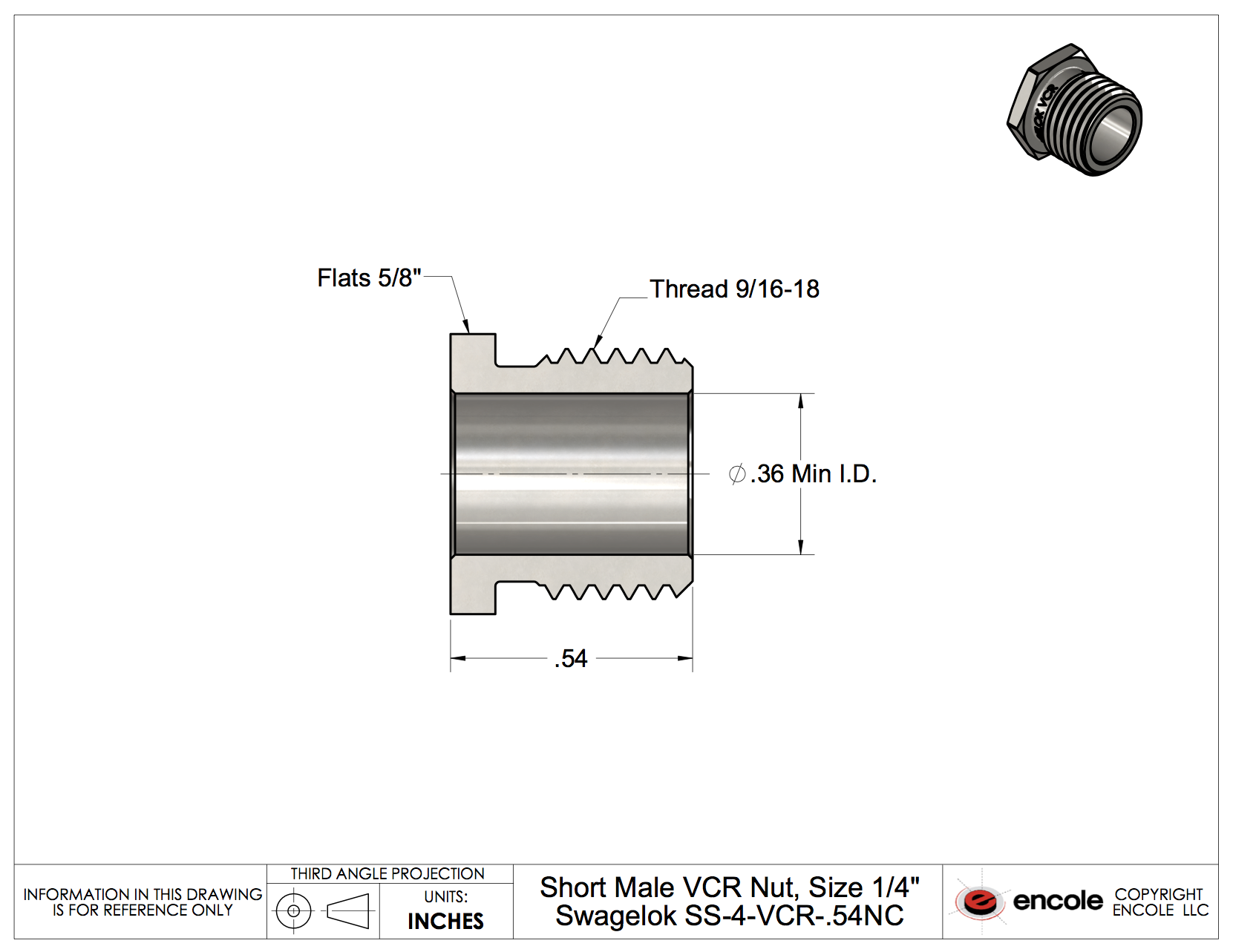

The information in this Drawing and 3-D models is provided for reference only.
Details
Product Drawings and CAD Models Disclaimer
Manufacturing processes and resulting tolerances may result in variations in the specifications provided. Many manufacturers consider their GD&T proprietary and do not provide this to Encole. While we believe the information to be generally correct, it is subject to change without notice and is not guaranteed. Drawings and CAD models are prepared by the Original Manufacturers or CAD expert contibutors or Encole staff.
Part number: 1051E201
Manufacturer's part number:
SS-4-VCR-4-.54NC
SS-4-VCR-4-.54NC
Manufacturer:
Swagelok Co.
Swagelok Co.
Price: $ Contact Manufacturer
Supplier:
Swagelok Co.
Sohon, OH
Tel.: 510.933.2500
