Swagelok Co.

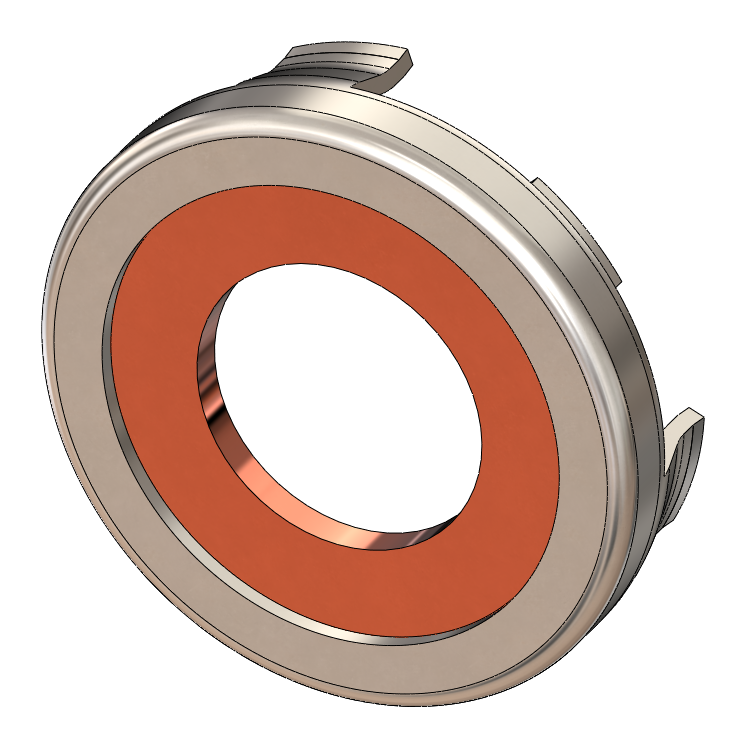

VCR® Gasket Retainer Assembly
Material: Copper, VCR Size: 1”, Plating Option: Unplated
Swagelok® VCR retained gasket.
·
VCR Size
1”
·
Material
Copper
·
Plating Option
Unplated
·
Material Specification
ASTM B152
·
Gasket Remarks
Retainer and the gasket must be used as an inseparable assembly.

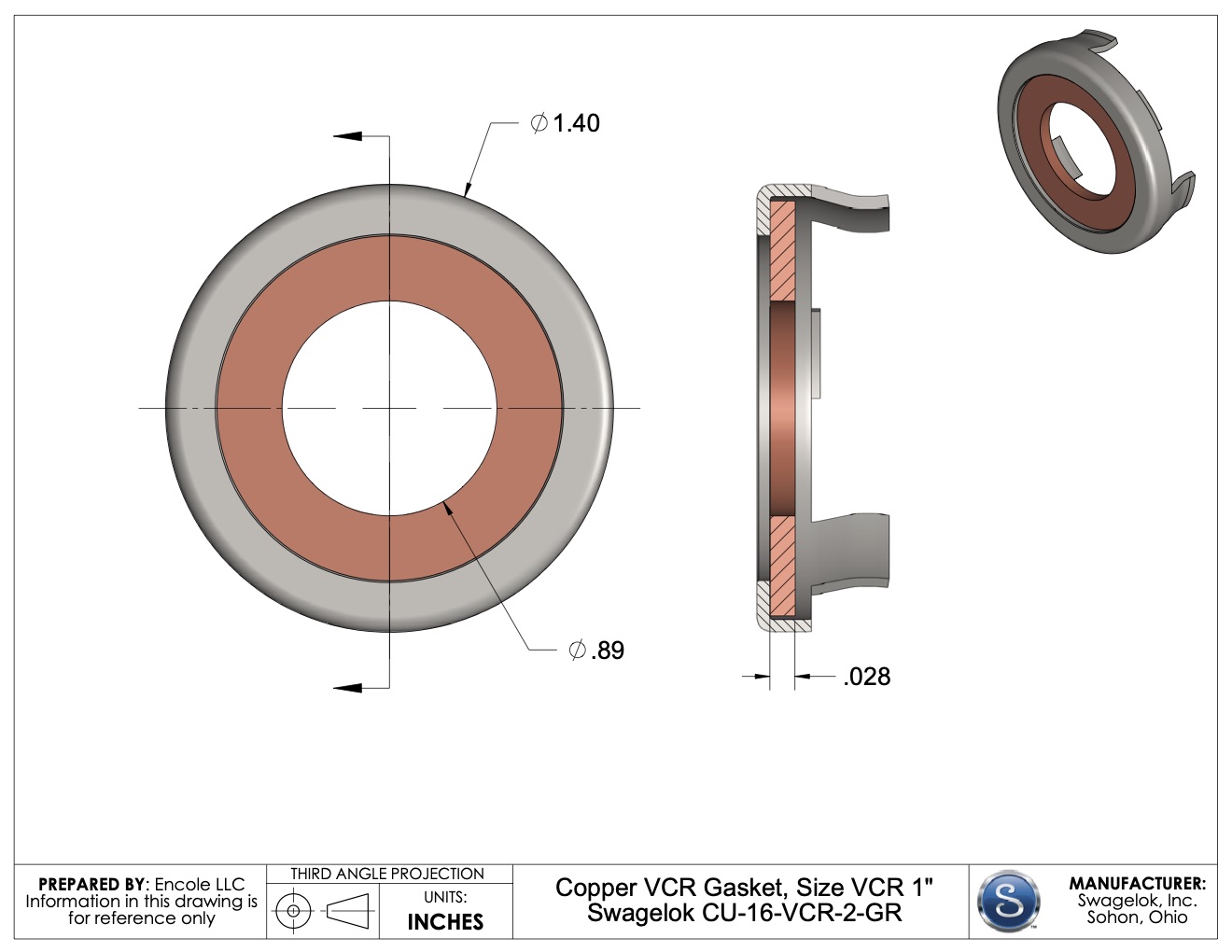

The information in this Drawing and 3-D models is provided for reference only.
Details
Product Drawings and CAD Models Disclaimer
Manufacturing processes and resulting tolerances may result in variations in the specifications provided. Many manufacturers consider their GD&T proprietary and do not provide this to Encole. While we believe the information to be generally correct, it is subject to change without notice and is not guaranteed. Drawings and CAD models are prepared by the Original Manufacturers or CAD expert contibutors or Encole staff.
Part number: 1058E20020
Manufacturer's part number:
CU-16-VCR-2-GR-VS
CU-16-VCR-2-GR-VS
Manufacturer:
Swagelok Co.
Swagelok Co.
Price: $ Contact Manufacturer
Supplier:
Swagelok Co.
Sohon, OH
Tel.: 510.933.2500
