Swagelok Co.
NPT to Female BSPT (Tapered Thread) Pipe Fitting Adapter
Material: 316 SS, Nominal Pipe Size: NPT 3/8”, Connection 2: BSPT 3/8”
Swagelok® male NPT to male ISO/BSPT (tapered thread) pipe fitting adapter. The ISO/BSPT tapered thread conforms to the British Whitworth Standard geometry. Always use a pipe thread sealant for tapered threads. Swagelok® recommends SWAK(™) anaerobic or PTFE-FREE thread sealant, or PTFE tape.
·
Nominal Pipe Size
NPT 3/8”
·
Connection 2
BSPT 3/8”
·
Material
316 SS
·
Material Specification
ASTM A276, ASME SA479, EN 1.14401
·
NPT Thread Specification
ASME B1.20.1, SAE AS71051
·
BSPT Thread Specification
ISO 7/1, BS EN 10226-1, JIS B0203
·
Pressure Rating
5300 psi (365 bar)

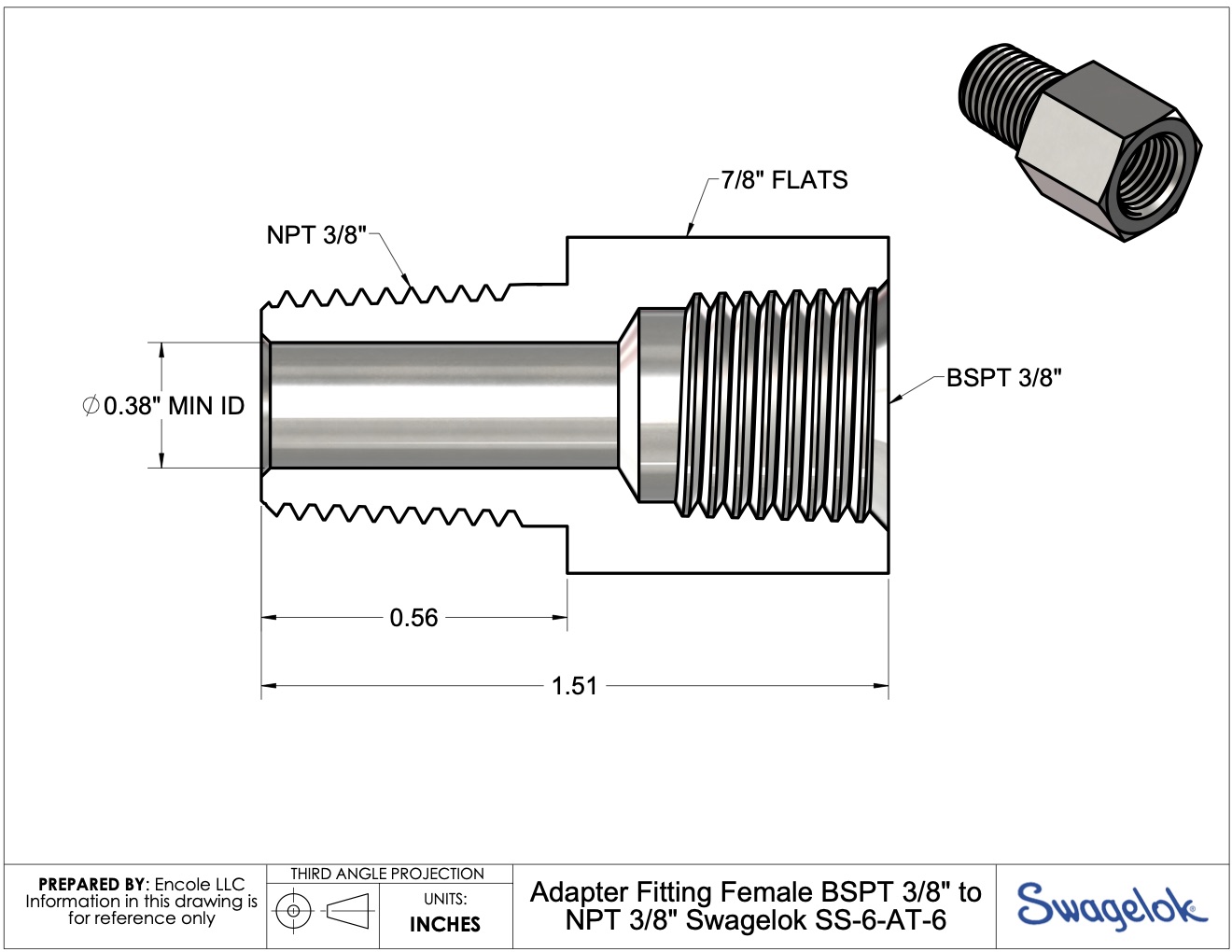

The information in this Drawing and 3-D models is provided for reference only.
Details
Product Drawings and CAD Models Disclaimer
Manufacturing processes and resulting tolerances may result in variations in the specifications provided. Many manufacturers consider their GD&T proprietary and do not provide this to Encole. While we believe the information to be generally correct, it is subject to change without notice and is not guaranteed. Drawings and CAD models are prepared by the Original Manufacturers or CAD expert contibutors or Encole staff.
Part number: 1070E602
Manufacturer's part number:
SS-6-AT-6
SS-6-AT-6
Manufacturer:
Swagelok Co.
Swagelok Co.
Price: $ Contact Manufacturer
