Swagelok Co.

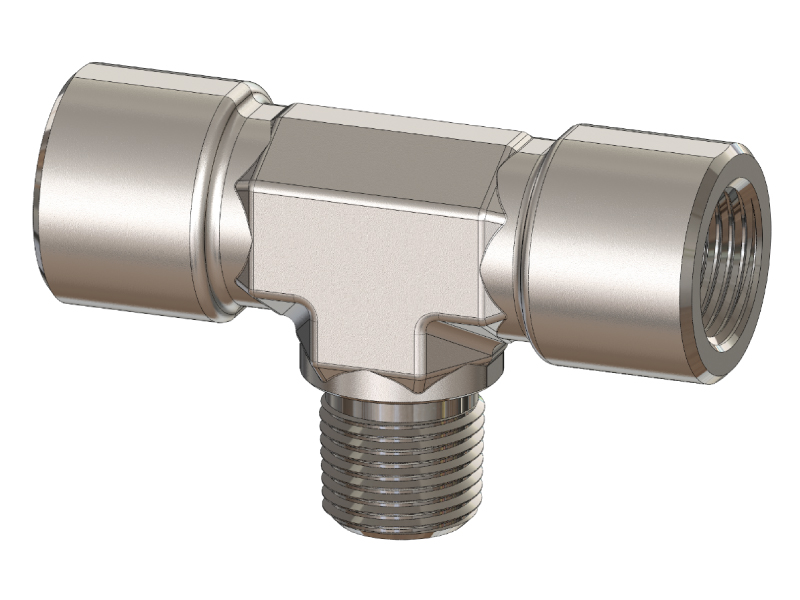

Branch Male and Run Female NPT Pipe Fitting Tee
Material: 316 SS, Nominal Pipe Size: NPT 1/8”
Swagelok® pipe fitting tee with two identical female NPT ends on the run (in-line of the tee) and a male NPT end on the branch (perpendicular to the run). Always use a pipe thread sealant for tapered threads. Swagelok® recommends SWAK(™) anaerobic or PTFE-FREE thread sealant, or PTFE tape.
·
Nominal Pipe Size
NPT 1/8”
·
Material
316 SS
·
Material Specification
ASTM A276, ASME SA479, EN 1.14401
·
Thread Specification
ASME B1.20.1, SAE AS71051
·
Pressure Rating
6200 psi (427 bar)

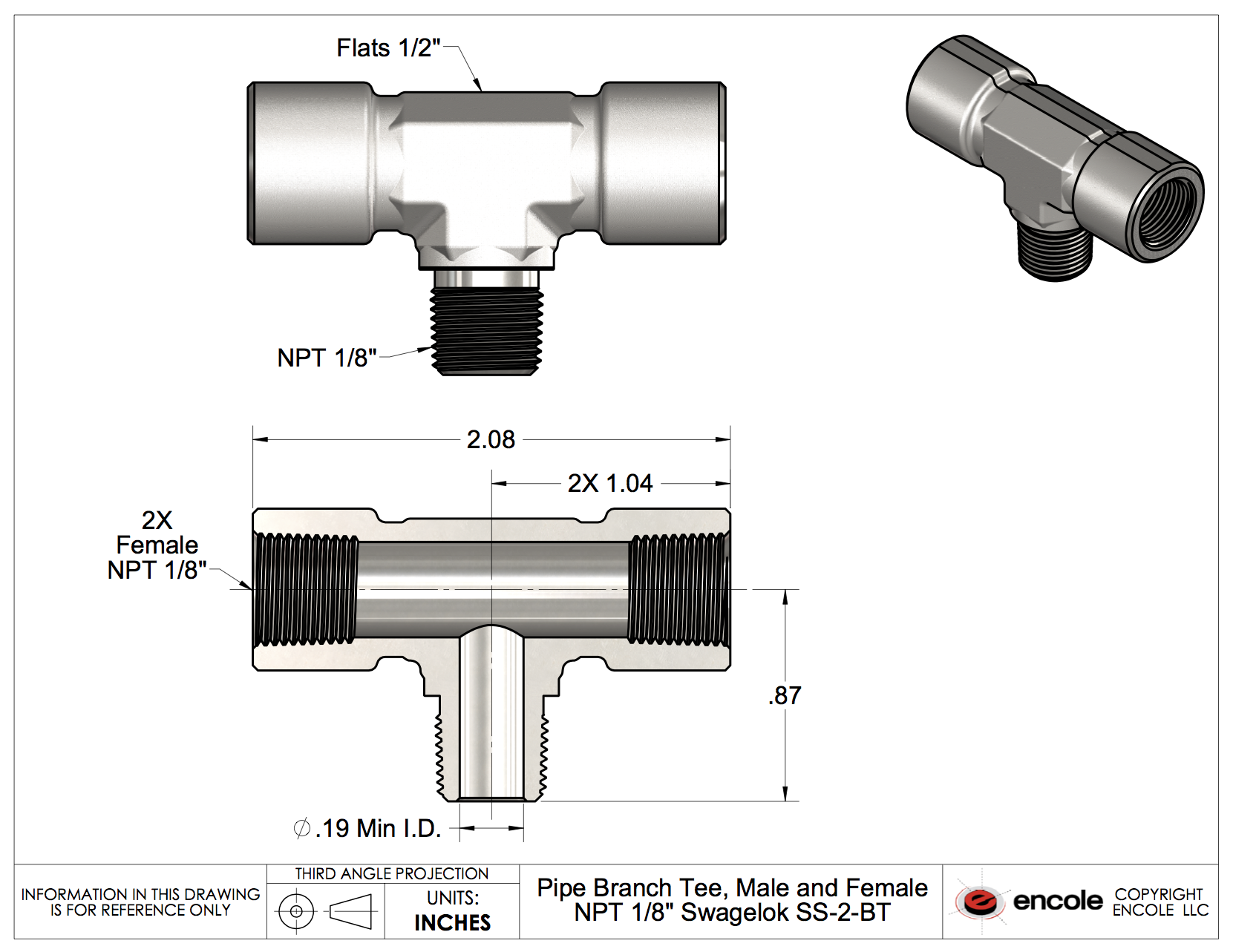

The information in this Drawing and 3-D models is provided for reference only.
Details
Product Drawings and CAD Models Disclaimer
Manufacturing processes and resulting tolerances may result in variations in the specifications provided. Many manufacturers consider their GD&T proprietary and do not provide this to Encole. While we believe the information to be generally correct, it is subject to change without notice and is not guaranteed. Drawings and CAD models are prepared by the Original Manufacturers or CAD expert contibutors or Encole staff.
Part number: 1092E401
Manufacturer's part number:
SS-2-BT
SS-2-BT
Manufacturer:
Swagelok Co.
Swagelok Co.
Price: $ Contact Manufacturer
Supplier:
Swagelok Co.
Sohon, OH
Tel.: 510.933.2500
