Flow Indicator ASME B16.5 with NPT Threaded Connections, Plain Style
ASME Class: Class 300, Pipe Size: 1/2 inch, Housing Material: Carbon Steel SA516-70, Window Material: Metaglas® Fused Window , Sealing Gasket: PTFE Gylon 3504, Bolting Material: SAE Gr. 5 Carbon Steel, Shield Option: No Shield

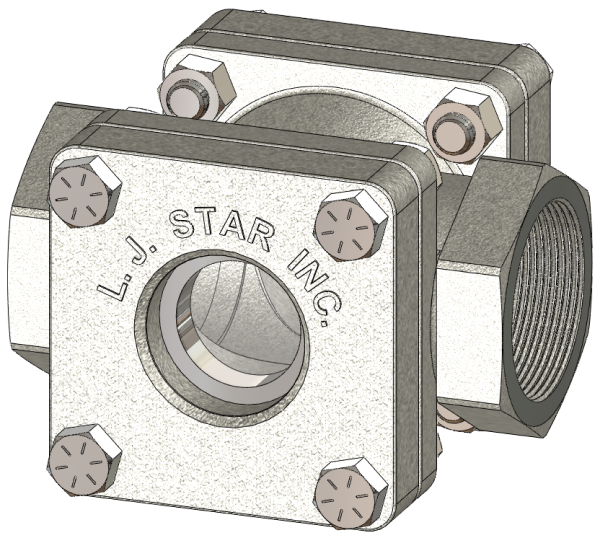

Visual flow indicator with NPT threaded female ports. Thread form complies with the ASME B1.20.1 National Taper Thread standard. Designed with front and back windows for back-lighting making it easy to see flow variations inside any pipeline, even when used with dark liquids. There are no inserts between the two windows, this flow indicators are best suited for non-homogeneous fluids to see bubbles, color changes and any indication of flow variations within the fluid. This flow indicator is installed in-line of the pipeline between two threaded pipe ends. Allows pipeline view through windows internally sealed to the metal housing with flat gaskets. May be installed in any position to observe flow in any direction. This indicator is usually employed to detect either the presence or absence of solutions, or to observe fluids for turbulence, color or clarity.

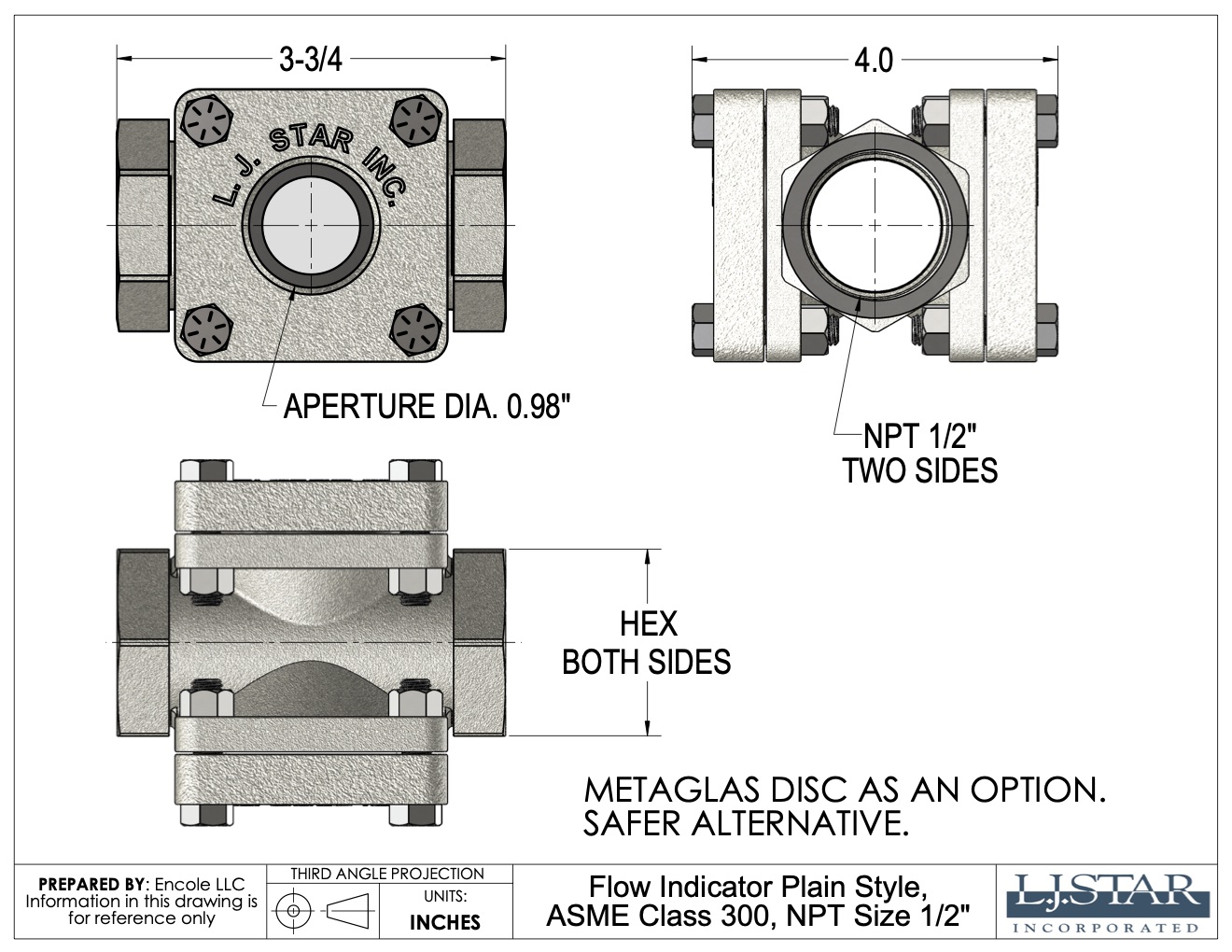

Product Drawings and CAD Models Disclaimer
