Hygienic Clamp to ASME VIII Pressure Vessel Code
Clamp Size: 4”

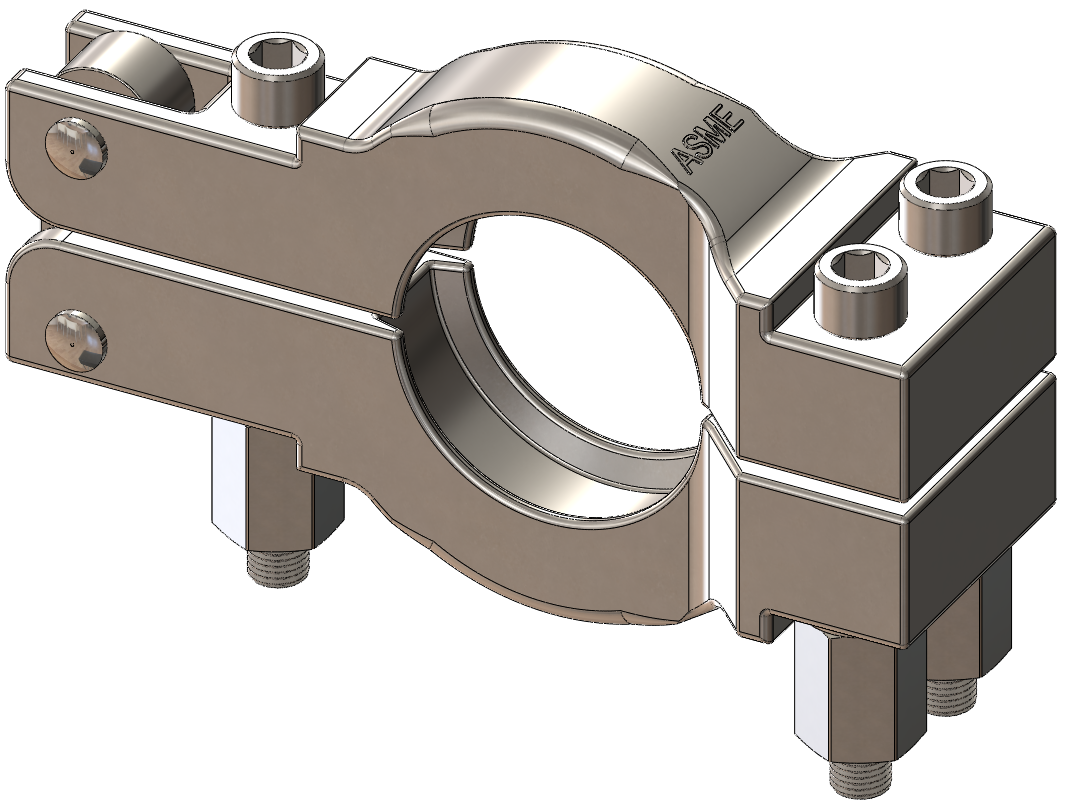

This hygienic ASME clamp is designed for pressure vessels, filter housing and other pressure-intensive applications operating under sterile conditions. The clamp is certified to meet the requirements of ASME Section VIII Appendix 24 of the Pressure Vessel Code. All components of this ASME clamp are made from fully traceable 316 Stainless Steel.

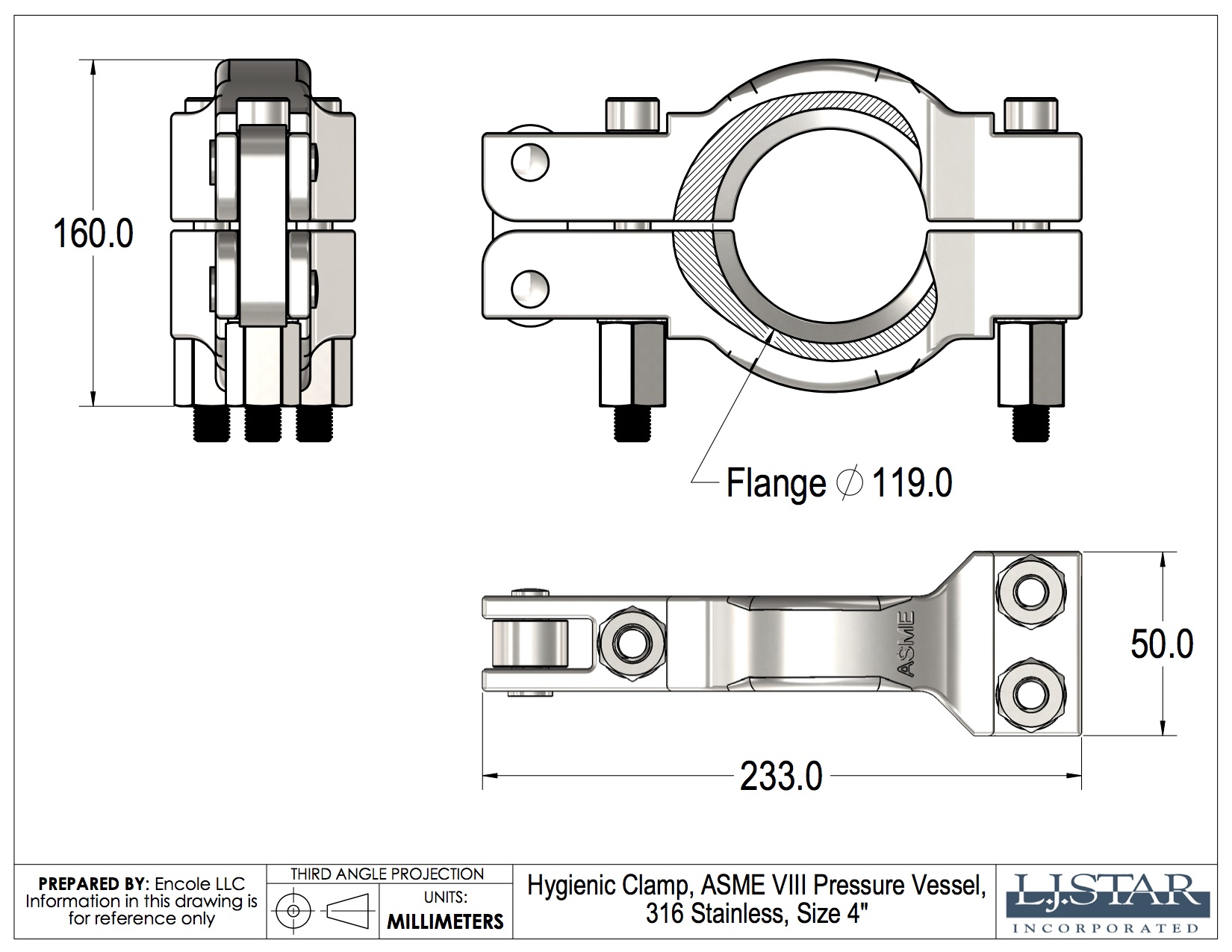

Product Drawings and CAD Models Disclaimer
Manufacturing processes and resulting tolerances may result in variations in the specifications provided. Many manufacturers consider their GD&T proprietary and do not provide this to Encole. While we believe the information to be generally correct, it is subject to change without notice and is not guaranteed. Drawings and CAD models are prepared by the Original Manufacturers or CAD expert contibutors or Encole staff.
C040.6.ASME
