NPT Weld-On Bung, 316 Stainless Steel
Nominal Pipe Size: 2”
Weld-on bung with FNPT threads conforming to ASME B1.20.1. The bung is ready to be welded to a flat wall of the process vessel. For curved surfaces the bung can be machined to fit the curvature. Made in the USA from domestically sourced AISI 316 stainless steel. Can be welded to any 300-series stainless steel. This product is recommended as a matching pair to any NPT sight glasses or fittings.

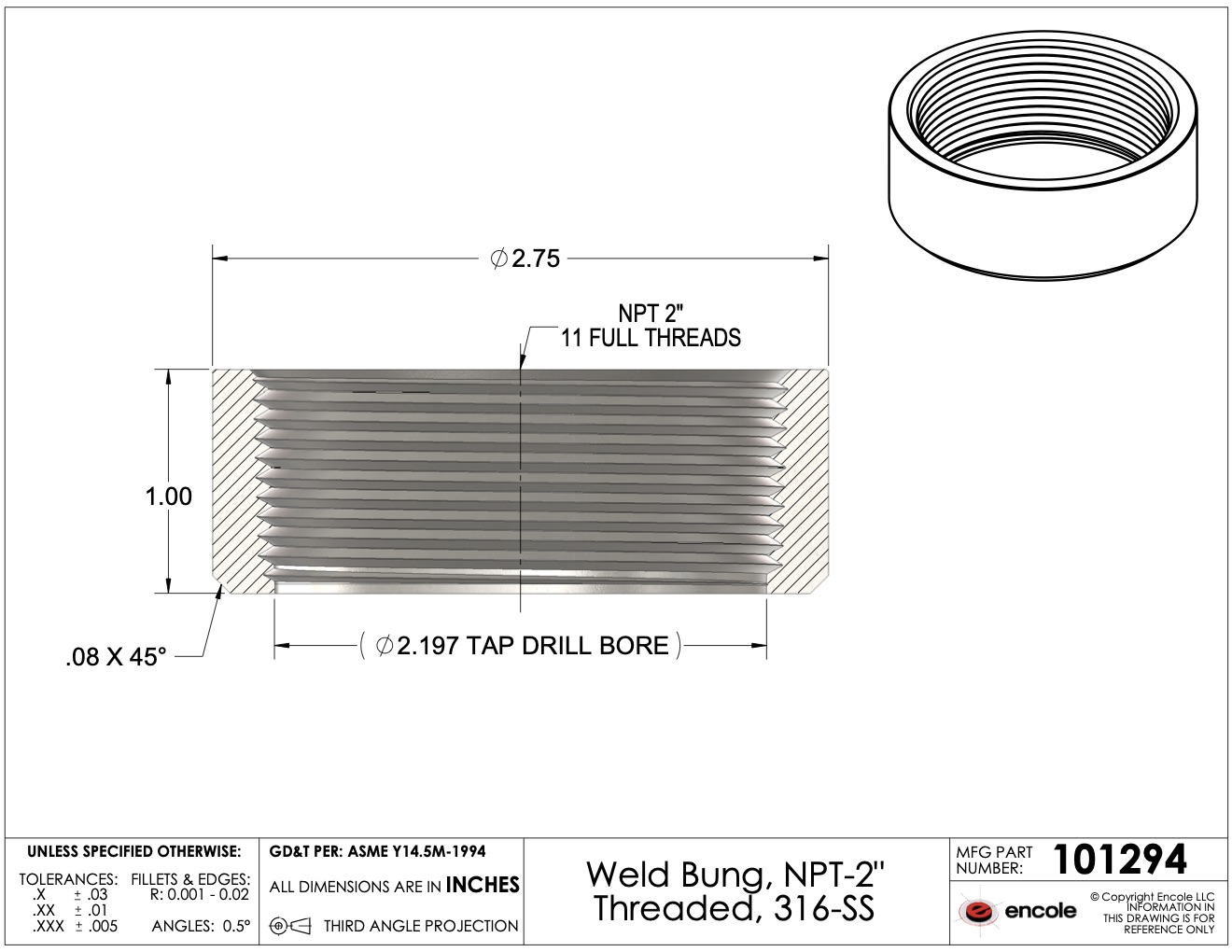

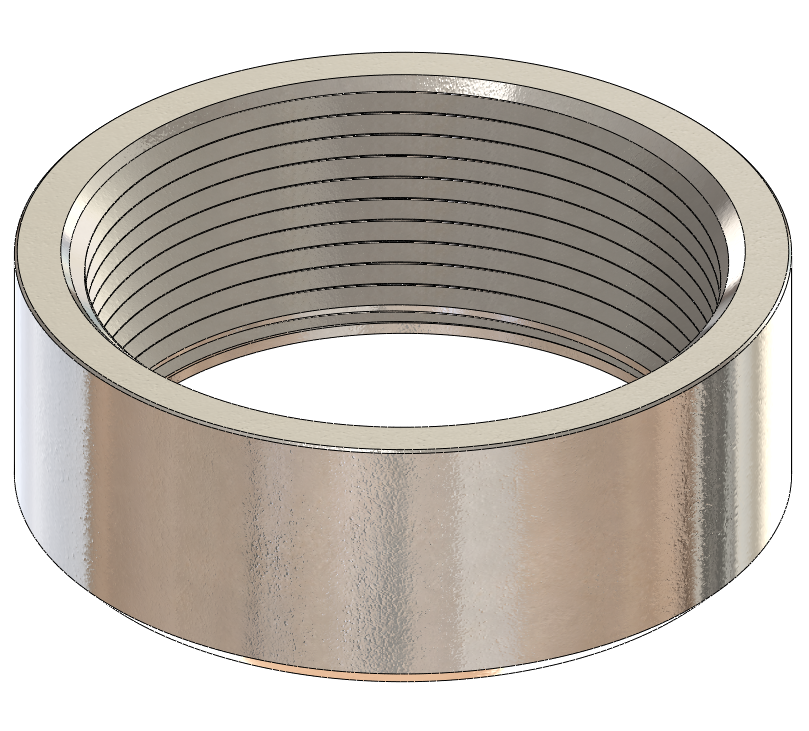

Product Drawings and CAD Models Disclaimer
Manufacturing processes and resulting tolerances may result in variations in the specifications provided. Many manufacturers consider their GD&T proprietary and do not provide this to Encole. While we believe the information to be generally correct, it is subject to change without notice and is not guaranteed. Drawings and CAD models are prepared by the Original Manufacturers or CAD expert contibutors or Encole staff.
