VCR® Nuts, Caps and Plugs

VCR® face seal nuts to make connection between two male VCR ends. Caps and plugs are blank, designed to cap-off or plug male or female VCR ends, respectively.

Swagelok Co.

VCR® Female Nuts

Swagelok® VCR female nuts to fit over a male VCR end. The nut is silver plated. Avoid chemical processes used for cleaning, electropolishing, and passivation that will remove or etch plating. If plating is removed, thread galling may occur preventing a proper seal.

VCR Size	Material	Mfg P/N	Encole P/N	Price
1/8”	316 SS	SS-2-VCR-1	1049E801	Contact Manufacturer
1/4”	316 SS	SS-4-VCR-1	1049E802	Contact Manufacturer
1/2”	316 SS	SS-8-VCR-1	1049E805	Contact Manufacturer
5/8”	316 SS	SS-10-VCR-1	1049E806	Contact Manufacturer
3/4”	316 SS	SS-12-VCR-1	1049E807	Contact Manufacturer
1”	316 SS	SS-16-VCR-1	1049E808	Contact Manufacturer

Swagelok Co.

VCR® Male Nuts

Swagelok® VCR nuts to form a swivel male VCR connection.

VCR Size	Material	Mfg P/N	Encole P/N	Price
1/8”	316 SS	SS-2-VCR-4	1050E701	Contact Manufacturer
1/4”	316 SS	SS-4-VCR-4	1050E702	Contact Manufacturer
1/2”	316 SS	SS-8-VCR-4	1050E704	Contact Manufacturer
5/8”	316 SS	SS-10-VCR-4	1050E705	Contact Manufacturer
3/4”	316 SS	SS-12-VCR-4	1050E706	Contact Manufacturer
1”	316 SS	SS-16-VCR-4	1050E707	Contact Manufacturer

Swagelok Co.

VCR® Short Male Nuts

Swagelok® VCR nuts to form a swivel male VCR connection. For use with short gland.

VCR Size	Material	Mfg P/N	Encole P/N	Price
1/4”	316 SS	SS-4-VCR-4-.54NC	1051E201	Contact Manufacturer

Swagelok Co.

VCR® Plugs

Swagelok® VCR plugs to fit into a female nut VCR connection.

VCR Size	Material	Mfg P/N	Encole P/N	Price
1/8”	316 SS	SS-2-VCR-P	1052E501	Contact Manufacturer
1/4”	316 SS	SS-4-VCR-P	1052E502	Contact Manufacturer
1/2”	316 SS	SS-8-VCR-P	1052E503	Contact Manufacturer
3/4”	316 SS	SS-12-VCR-P	1052E504	Contact Manufacturer
1”	316 SS	SS-16-VCR-P	1052E505	Contact Manufacturer

Swagelok Co.

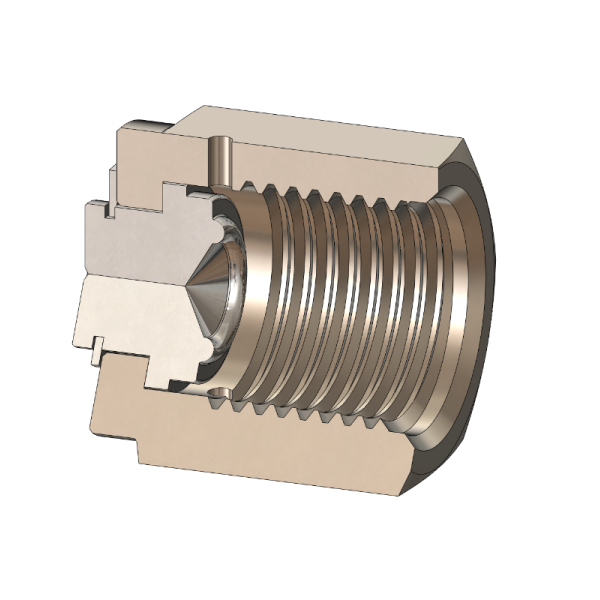

VCR® Caps

Swagelok® VCR caps to fit over a male nut VCR connection. The nut is silver plated. Avoid chemical processes used for cleaning, electropolishing, and passivation that will remove or etch plating. If plating is removed, thread galling may occur preventing a proper seal.

VCR Size	Material	Mfg P/N	Encole P/N	Price
1/8”	316 SS	SS-2-VCR-CP	1053E501	Contact Manufacturer
1/4”	316 SS	SS-4-VCR-CP	1053E502	Contact Manufacturer
1/2”	316 SS	SS-8-VCR-CP	1053E503	Contact Manufacturer
3/4”	316 SS	SS-12-VCR-CP	1053E504	Contact Manufacturer
1”	316 SS	SS-16-VCR-CP	1053E505	Contact Manufacturer
