VCR® Ultra High Polish Metal Seal Fittings

VCR® Ultra High Polish Metal Seal Fittings

Face seal fittings for ultra high purity plumbing lines. Known as VCR, a Swagelok® Company trademark, these fittings the perfect choice for clean rooms, semiconductor reactors and ultra-high vacuum applications. The face of a VCR fitting is burnished to allow Helium leak tight seal with pure metal to metal contact. Metal-to-metal face seal eliminates virtual leaks or outgassing. VCR® stands for Vacuum Coupling Radiation.

Swagelok Co.

Short Tube Butt Weld VCR® Glands

Swagelok® VCR glands with a short tube butt weld on one end.
VCR Size Connection 2 Material Mfg P/N Encole P/N Price
1/8” Tube OD 1/8” 316L VAR 6LV-2-VCR-3S-2TB7 1008E1601 Contact Manufacturer
1/4” Tube OD 1/8” 316L VAR 6LV-4-VCR-3S-2TB7 1008E1602 Contact Manufacturer
1/4” Tube OD 1/4” 316L VAR 6LV-4-VCR-3S-4TB2 1008E1603 Contact Manufacturer
1/2” Tube OD 1/4” 316L VAR 6LV-8-VCR-3S-4TB7 1008E1606 Contact Manufacturer
1/2” Tube OD 3/8” 316L VAR 6LV-8-VCR-3S-6TB2 1008E1607 Contact Manufacturer
1/2” Tube OD 1/2” 316L VAR 6LV-8-VCR-3S-8TB2 1008E1609 Contact Manufacturer
1/4” Tube OD 6 mm 316L VAR 6LV-4-VCR-3S-6MTB7 1008E16012 Contact Manufacturer
1/4” Tube OD 8 mm 316L VAR 6LV-4-VCR-3S-8MTB7 1008E16013 Contact Manufacturer
1/2” Tube OD 10 mm 316L VAR 6LV-8-VCR-3S-10MTB7 1008E16014 Contact Manufacturer
1/2” Tube OD 12 mm 316L VAR 6LV-8-VCR-3S-12MTB7 1008E16015 Contact Manufacturer
3/4” Tube OD 18 mm 316L VAR 6LV-12-VCR-3S-18MTB7 1008E16016 Contact Manufacturer

Swagelok Co.

Long Tube Butt Weld VCR® Glands

Swagelok® VCR glands with a long tube butt weld on one end.
VCR Size Connection 2 Material Mfg P/N Encole P/N Price
1/8” Tube OD 1/8” 316L VAR 6LV-2-VCR-3-2TB7 1015E1801 Contact Manufacturer
1/4” Tube OD 1/4” 316L VAR 6LV-4-VCR-3-4TB2 1015E1802 Contact Manufacturer
1/2” Tube OD 1/4” 316L VAR 6LV-8-VCR-3-4TB7 1015E1806 Contact Manufacturer
1/2” Tube OD 3/8” 316L VAR 6LV-8-VCR-3-6TB2 1015E1807 Contact Manufacturer
1/2” Tube OD 1/2” 316L VAR 6LV-8-VCR-3-8TB2 1015E1809 Contact Manufacturer
3/4” Tube OD 3/4” 316L VAR 6LV-12-VCR-3-12TB7 1015E18012 Contact Manufacturer
1” Tube OD 1” 316L VAR 6LV-16-VCR-3-16TB7 1015E18013 Contact Manufacturer
1/4” Tube OD 6 mm 316L VAR 6LV-4-VCR-3-6MTB7 1015E18014 Contact Manufacturer
1/4” Tube OD 8 mm 316L VAR 6LV-4-VCR-3-8MTB7 1015E18015 Contact Manufacturer
1/2” Tube OD 10 mm 316L VAR 6LV-8-VCR-3-10MTB7 1015E18016 Contact Manufacturer
1/2” Tube OD 12 mm 316L VAR 6LV-8-VCR-3-12MTB7 1015E18017 Contact Manufacturer
3/4” Tube OD 18 mm 316L VAR 6LV-12-VCR-3-18MTB7 1015E18018 Contact Manufacturer

Swagelok Co.

Short Automatic Tube Butt Weld VCR® Glands

Swagelok® VCR glands with a short auto-tube butt weld on one end.
VCR Size Connection 2 Material Mfg P/N Encole P/N Price
1/4” Tube OD 1/4” 316L SS 316L-4-VCR-3AS 1016E701 Contact Manufacturer
1/2” Tube OD 3/8” 316L SS 316L-8-VCR-3AS6 1016E702 Contact Manufacturer
1/2” Tube OD 1/2” 316L SS 316L-8-VCR-3AS 1016E703 Contact Manufacturer
1/4” Tube OD 6 mm 316L SS 316L-4-VCR-3-6MAS 1016E704 Contact Manufacturer
1/4” Tube OD 8 mm 316L SS 316L-4-VCR-3-8MAS 1016E705 Contact Manufacturer
1/2” Tube OD 10 mm 316L SS 316L-8-VCR-3-10MAS 1016E706 Contact Manufacturer
1/2” Tube OD 12 mm 316L SS 316L-8-VCR-3-12MAS 1016E707 Contact Manufacturer

Swagelok Co.

Long Automatic Tube Butt Weld VCR® Glands

Swagelok® VCR glands with a long auto-tube butt weld on one end.
VCR Size Connection 2 Material Mfg P/N Encole P/N Price
1/4” Tube OD 1/4” 316L SS 316L-4-VCR-3A 1017E901 Contact Manufacturer
1/2” Tube OD 1/4” 316L SS 316L-8-VCR-3A4 1017E902 Contact Manufacturer
1/2” Tube OD 3/8” 316L SS 316L-8-VCR-3A6 1017E903 Contact Manufacturer
1/2” Tube OD 1/2” 316L SS 316L-8-VCR-3A 1017E904 Contact Manufacturer
3/4” Tube OD 3/4” 316L SS 316L-12-VCR-3A 1017E905 Contact Manufacturer
1” Tube OD 1” 316L SS 316L-16-VCR-3A 1017E906 Contact Manufacturer
1/4” Tube OD 6 mm 316L SS 316L-4-VCR-3-6MA 1017E907 Contact Manufacturer
1/2” Tube OD 12 mm 316L SS 316L-8-VCR-3-12MA 1017E908 Contact Manufacturer
3/4” Tube OD 18 mm 316L SS 316L-12-VCR-3-18MA 1017E909 Contact Manufacturer

Swagelok Co.

Socket Weld VCR® Glands

Swagelok® VCR glands with a socket weld on one end.
VCR Size Connection 2 Material Mfg P/N Encole P/N Price
1/8” Tube OD 1/16” 316 SS SS-1-VCR-3 1018E801 Contact Manufacturer
1/8” Tube OD 1/8” 316 SS SS-2-VCR-3 1018E802 Contact Manufacturer
1/4” Tube OD 1/4” 316 SS SS-4-VCR-3 1018E803 Contact Manufacturer
1/2” Tube OD 3/8” 316 SS SS-6-VCR-3 1018E804 Contact Manufacturer
1/2” Tube OD 1/2” 316 SS SS-8-VCR-3 1018E805 Contact Manufacturer
5/8” Tube OD 5/8” 316 SS SS-10-VCR-3 1018E806 Contact Manufacturer
3/4” Tube OD 3/4” 316 SS SS-12-VCR-3 1018E807 Contact Manufacturer
1” Tube OD 1” 316 SS SS-16-VCR-3 1018E808 Contact Manufacturer

Swagelok Co.

Short Socket Weld VCR® Glands

Swagelok® VCR short glands with a socket weld on one end.
VCR Size Connection 2 Material Mfg P/N Encole P/N Price
1/4” Tube OD 1/4” 316 SS SS-4-VCR-3-.50LG 1019E201 Contact Manufacturer

Swagelok Co.

Reducing Socket Weld VCR® Glands

Swagelok® VCR glands with a reducing socket weld on one end.
VCR Size Connection 2 Material Mfg P/N Encole P/N Price
1/4” Tube OD 1/8” 316 SS SS-4-VCR-3-2TSW 1020E201 Contact Manufacturer
1/2” Tube OD 1/4” 316 SS SS-8-VCR-3-4TSW 1020E202 Contact Manufacturer

Swagelok Co.

Male Pipe Weld VCR® Glands

Swagelok® VCR glands with a male pipe weld on one end.
VCR Size Connection 2 Material Mfg P/N Encole P/N Price
1/8” Tube OD 1/8” 316 SS SS-2-VCR-3-2MTW 1021E801 Contact Manufacturer
1/4” Tube OD 1/8” 316 SS SS-4-VCR-3-2MTW 1021E802 Contact Manufacturer
1/4” Tube OD 1/4” 316 SS SS-4-VCR-3-4MTW 1021E803 Contact Manufacturer
1/2” Tube OD 1/4” 316 SS SS-8-VCR-3-4MTW 1021E804 Contact Manufacturer
1/2” Tube OD 3/8” 316 SS SS-8-VCR-3-6MTW 1021E806 Contact Manufacturer
3/4” Tube OD 3/4” 316 SS SS-12-VCR-3-12MTW 1021E807 Contact Manufacturer
1” Tube OD 1” 316 SS SS-16-VCR-3-16MTW 1021E808 Contact Manufacturer

Swagelok Co.

Tube Adapter VCR® Glands

Swagelok® VCR gland adapters to compression tube.
VCR Size Connection 2 Material Mfg P/N Encole P/N Price
1/4” Tube OD 1/4” 316 SS SS-4-VCR-3-4TA 1022E301 Contact Manufacturer
1/2” Tube OD 3/8” 316 SS SS-8-VCR-3-6TA 1022E302 Contact Manufacturer
1/2” Tube OD 1/2” 316 SS SS-8-VCR-3-8TA 1022E303 Contact Manufacturer

Swagelok Co.

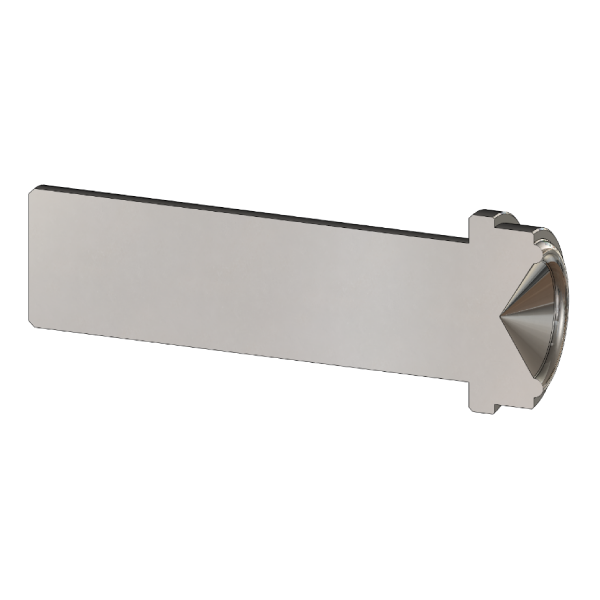

Blind (Undrilled) VCR® Glands

Swagelok® VCR undrilled glands to cap off lines. The gland fits into a nut to blank-off the mating VCR fitting.
VCR Size Material Mfg P/N Encole P/N Price
1/8” 316 SS SS-2-VCR-3-BL 1023E501 Contact Manufacturer
1/4” 316 SS SS-4-VCR-3-BL 1023E502 Contact Manufacturer
1/2” 316 SS SS-8-VCR-3-BL 1023E503 Contact Manufacturer
3/4” 316 SS SS-12-VCR-3-BL 1023E504 Contact Manufacturer
1” 316 SS SS-16-VCR-3-BL 1023E505 Contact Manufacturer

Swagelok Co.

VCR® Fitting Male NPT Connectors

Swagelok® VCR fittings with a male NPT on one end. During installation of the VCR mating components the fitting must remain stationary. These fittings can be assembled only to glands with rotating male of female threaded nut.
VCR Size Connection 2 Material Mfg P/N Encole P/N Price
1/8” NPT 1/16” 316 SS SS-2-VCR-1-1 1024E901 Contact Manufacturer
1/8” NPT 1/8” 316 SS SS-2-VCR-1-2 1024E902 Contact Manufacturer
1/4” NPT 1/8” 316 SS SS-4-VCR-1-2 1024E903 Contact Manufacturer
1/4” NPT 1/4” 316 SS SS-4-VCR-1-4 1024E904 Contact Manufacturer
1/2” NPT 1/4” 316 SS SS-8-VCR-1-4 1024E905 Contact Manufacturer
1/2” NPT 3/8” 316 SS SS-8-VCR-1-6 1024E906 Contact Manufacturer
1/2” NPT 1/2” 316 SS SS-8-VCR-1-8 1024E907 Contact Manufacturer
3/4” NPT 3/4” 316 SS SS-12-VCR-1-12 1024E908 Contact Manufacturer
1” NPT 1” 316 SS SS-16-VCR-1-16 1024E909 Contact Manufacturer

Swagelok Co.

VCR® Fitting Male Bulkhead NPT Connectors

Swagelok® VCR fittings with a male bulkhead NPT on one end.
VCR Size Connection 2 Material Mfg P/N Encole P/N Price
1/4” NPT 1/4” 316 SS SS-4-VCR-A1-4M 1025E201 Contact Manufacturer
1/2” NPT 1/4” 316 SS SS-8-VCR-A1-4M 1025E202 Contact Manufacturer

Swagelok Co.

VCR® Fitting SAE Connectors

Swagelok® VCR fitting with a SAE boss with straight threads on one end. The SAE complies with SAE J514 geometry, fits into J19126-1 port.
VCR Size Connection 2 Material Mfg P/N Encole P/N Price
1/4” SAE-6 316 SS SS-4-VCR-1-00032 1026E301 Contact Manufacturer
1/2” SAE-6 316 SS SS-8-VCR-1-00176 1026E302 Contact Manufacturer
1/2” SAE-10 316 SS SS-8-VCR-1-01081 1026E303 Contact Manufacturer

Swagelok Co.

VCR® Fitting Female NPT Connectors

Swagelok® VCR fittings with a female NPT on one end.
VCR Size Connection 2 Material Mfg P/N Encole P/N Price
1/8” Female NPT 1/16” 316 SS SS-2-VCR-7-1 1027E801 Contact Manufacturer
1/8” Female NPT 1/8” 316 SS SS-2-VCR-7-2 1027E802 Contact Manufacturer
1/4” Female NPT 1/8” 316 SS SS-4-VCR-7-2 1027E803 Contact Manufacturer
1/4” Female NPT 1/4” 316 SS SS-4-VCR-7-4 1027E804 Contact Manufacturer
1/2” Female NPT 3/8” 316 SS SS-8-VCR-7-6 1027E805 Contact Manufacturer
1/2” Female NPT 1/2” 316 SS SS-8-VCR-7-8 1027E806 Contact Manufacturer
3/4” Female NPT 3/4” 316 SS SS-12-VCR-7-12 1027E807 Contact Manufacturer
1” Female NPT 1” 316 SS SS-16-VCR-7-16 1027E808 Contact Manufacturer

Swagelok Co.

VCR® Compression Tube Fittings

Swagelok® VCR fittings with a compression tube socket, with ferrules and a nut on one end.
VCR Size Connection 2 Material Mfg P/N Encole P/N Price
1/4” Tube OD 1/8” 316 SS SS-4-VCR-6-200 1028E401 Contact Manufacturer
1/4” Tube OD 1/4” 316 SS SS-4-VCR-6-400 1028E402 Contact Manufacturer
1/2” Tube OD 3/8” 316 SS SS-8-VCR-6-600 1028E403 Contact Manufacturer
1/2” Tube OD 1/2” 316 SS SS-8-VCR-6-810 1028E404 Contact Manufacturer

Swagelok Co.

VCR® Compression Tube Fitting Bulkhead Connectors

Swagelok® VCR bulkhead fittings with a compression tube socket, with ferrules and a nut on one end.
VCR Size Connection 2 Material Mfg P/N Encole P/N Price
1/4” Tube OD 1/4” 316 SS SS-VCR-4-A1-400 1029E401 Contact Manufacturer
1/2” Tube OD 3/8” 316 SS SS-VCR-8-A1-600 1029E403 Contact Manufacturer
1/2” Tube OD 1/2” 316 SS SS-VCR-8-A1-810 1029E404 Contact Manufacturer

Swagelok Co.

VCR® Union Fittings

Swagelok® VCR union fittings with identical male VCR connections.
VCR Size Material Mfg P/N Encole P/N Price
1/8” 316 SS SS-2-VCR-6-DM 1030E501 Contact Manufacturer
1/4” 316 SS SS-4-VCR-6-DM 1030E502 Contact Manufacturer
1/2” 316 SS SS-8-VCR-6-DM 1030E503 Contact Manufacturer
3/4” 316 SS SS-12-VCR-6-DM 1030E504 Contact Manufacturer
1” 316 SS SS-16-VCR-6-DM 1030E505 Contact Manufacturer

Swagelok Co.

VCR® Reducing Union Fittings

Swagelok® reducing VCR union fittings with male VCR connections of different sizes on the ends.
VCR Size Connection 2 Material Mfg P/N Encole P/N Price
1/4” Male VCR 1/8” 316 SS SS-4-VCR-6-DM-2 1031E201 Contact Manufacturer
1/2” Male VCR 1/4” 316 SS SS-8-VCR-6-DM-4 1031E202 Contact Manufacturer

Swagelok Co.

VCR® Union Bulkhead Fittings

Swagelok® VCR union bulkhead fittings with identical male VCR connections.
VCR Size Material Mfg P/N Encole P/N Price
1/4” 316 SS SS-4-VCR-61 1032E401 Contact Manufacturer
1/2” 316 SS SS-8-VCR-61 1032E403 Contact Manufacturer

Swagelok Co.

VCR® Tube Butt Weld Bulkhead Connectors

Swagelok® VCR bulkhead fittings with a tube butt weld on one end.
VCR Size Connection 2 Material Mfg P/N Encole P/N Price
1/4” Pipe Weld 1/4” 316L VAR 6LV-4-VCR-61-4TB7 1033E301 Contact Manufacturer
1/4” Pipe Weld 3/8” 316L VAR 6LV-4-HVCR-61-6TB7 1033E303 Contact Manufacturer

Swagelok Co.

Female VCR® Coupling Fittings

Swagelok® VCR couplings with identical female threads to fit male VCR ends.
VCR Size Material Mfg P/N Encole P/N Price
1/8” 316 SS SS-2-VCR-CG 1034E501 Contact Manufacturer
1/4” 316 SS SS-4-VCR-CG 1034E502 Contact Manufacturer
1/2” 316 SS SS-8-VCR-CG 1034E503 Contact Manufacturer
3/4” 316 SS SS-12-VCR-CG 1034E504 Contact Manufacturer
1” 316 SS SS-16-VCR-CG 1034E505 Contact Manufacturer

Swagelok Co.

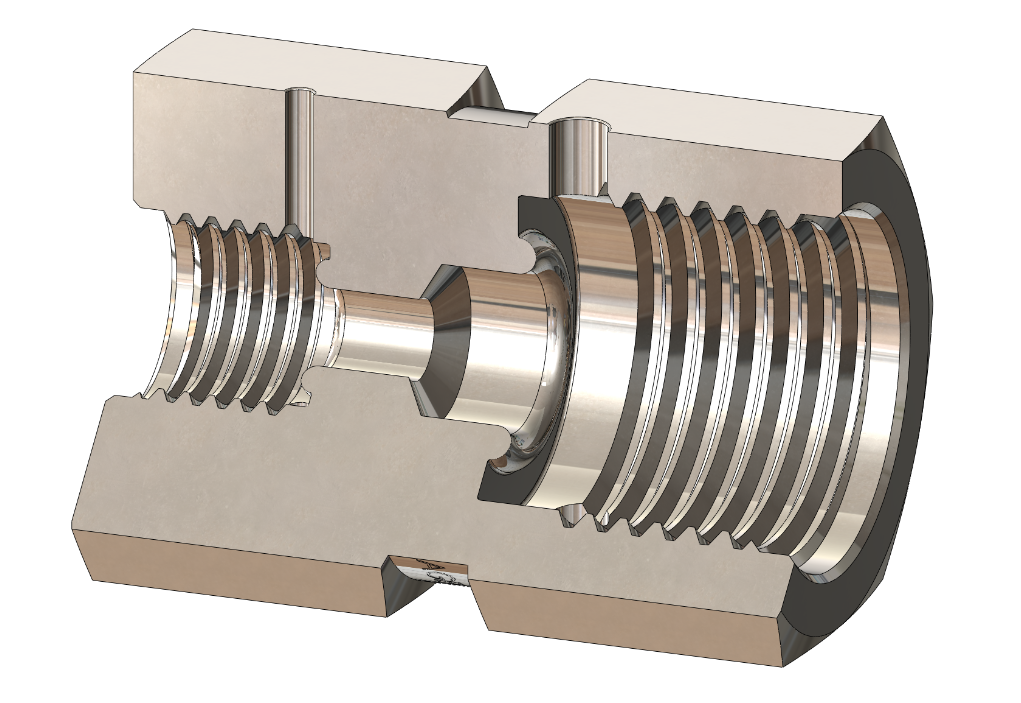

Female VCR® Reducing Union Fittings

Swagelok® reducing VCR union fittings with female VCR connections of different sizes on the ends.
VCR Size Connection 2 Material Mfg P/N Encole P/N Price
1/4” Female VCR 1/8” 316 SS SS-4-VCR-6-DF-2 1035E201 Contact Manufacturer
1/2” Female VCR 1/4” 316 SS SS-8-VCR-6-DF-4 1035E202 Contact Manufacturer

Swagelok Co.

VCR® Reducing Adapters from Smaller Male VCR to Larger Female VCR

Swagelok® reducing VCR adapters from a female VCR to a male VCR of different sizes on the ends.
VCR Size Connection 2 Material Mfg P/N Encole P/N Price
1/8” Female VCR 1/4” 316 SS SS-2-VCR-7-4VCRF 1036E201 Contact Manufacturer
1/4” Female VCR 1/2” 316 SS SS-4-VCR-7-8VCRF 1036E202 Contact Manufacturer

Swagelok Co.

VCR® Reducing Bushings from Larger Male VCR to Female VCR

Swagelok® reducing VCR bushing from a female VCR to a male VCR of different sizes on the ends.
VCR Size Connection 2 Material Mfg P/N Encole P/N Price
1/4” Female VCR 1/8” 316 SS SS-4-VCR-7-2VCRF 1037E201 Contact Manufacturer
1/2” Female VCR 1/4” 316 SS SS-8-VCR-7-4VCRF 1037E202 Contact Manufacturer

Swagelok Co.

VCR® Fitting Male NPT Elbows

Swagelok® VCR elbow fittings with a male NPT on one end.
VCR Size Connection 2 Material Mfg P/N Encole P/N Price
1/4” NPT 1/8” 316 SS SS-4-VCR-2-2 1038E401 Contact Manufacturer
1/4” NPT 1/4” 316 SS SS-4-VCR-2-4 1038E402 Contact Manufacturer
1/2” NPT 3/8” 316 SS SS-8-VCR-2-6 1038E403 Contact Manufacturer
1/2” NPT 1/2” 316 SS SS-8-VCR-2-8 1038E404 Contact Manufacturer

Swagelok Co.

VCR® Union Elbow Fittings

Swagelok® VCR union elbow fittings with identical male VCR connections.
VCR Size Material Mfg P/N Encole P/N Price
1/8” 316 SS SS-2-VCR-9 1039E601 Contact Manufacturer
1/4” 316 SS SS-4-VCR-9 1039E602 Contact Manufacturer
1/2” 316 SS SS-8-VCR-9 1039E604 Contact Manufacturer
3/4” 316 SS SS-12-VCR-9 1039E605 Contact Manufacturer
1” 316 SS SS-16-VCR-9 1039E606 Contact Manufacturer

Swagelok Co.

VCR® Union Tees

Swagelok® VCR union tee fittings with identical male VCR connections.
VCR Size Material Mfg P/N Encole P/N Price
1/8” 316 SS SS-2-VCR-T 1040E601 Contact Manufacturer
1/4” 316 SS SS-4-VCR-T 1040E602 Contact Manufacturer
1/2” 316 SS SS-8-VCR-T 1040E604 Contact Manufacturer
3/4” 316 SS SS-12-VCR-T 1040E605 Contact Manufacturer
1” 316 SS SS-16-VCR-T 1040E606 Contact Manufacturer

Swagelok Co.

VCR® Union Crosses

Swagelok® VCR union cross fittings with identical male VCR connections.
VCR Size Material Mfg P/N Encole P/N Price
1/8” 316 SS SS-2-VCR-CS 1041E501 Contact Manufacturer
1/4” 316 SS SS-4-VCR-CS 1041E502 Contact Manufacturer
1/2” 316 SS SS-8-VCR-CS 1041E503 Contact Manufacturer
3/4” 316 SS SS-12-VCR-CS 1041E504 Contact Manufacturer
1” 316 SS SS-16-VCR-CS 1041E505 Contact Manufacturer

Swagelok Co.

Female VCR® to Male NPT Connectors

Swagelok® female VCR connectors with a male NPT on one end. The female VCR nut is silver plated. Avoid chemical processes used for cleaning, electropolishing, and passivation that will remove or etch plating. If plating is removed, thread galling may occur preventing a proper seal.
VCR Size Connection 2 Material Mfg P/N Encole P/N Price
1/4” NPT 1/8” 316 SS SS-4-WVCR-1-2 1042E401 Contact Manufacturer
1/4” NPT 1/4” 316 SS SS-4-WVCR-1-4 1042E402 Contact Manufacturer
1/2” NPT 3/8” 316 SS SS-8-WVCR-1-6 1042E403 Contact Manufacturer
1/2” NPT 1/2” 316 SS SS-8-WVCR-1-8 1042E404 Contact Manufacturer

Swagelok Co.

Female VCR® to Female NPT Connectors

Swagelok® female VCR connectors with a female NPT on one end. The female VCR nut is silver plated. Avoid chemical processes used for cleaning, electropolishing, and passivation that will remove or etch plating. If plating is removed, thread galling may occur preventing a proper seal.
VCR Size Connection 2 Material Mfg P/N Encole P/N Price
1/4” NPT 1/4” 316 SS SS-4-WVCR-7-4 1043E301 Contact Manufacturer
1/2” NPT 3/8” 316 SS SS-8-WVCR-7-6 1043E302 Contact Manufacturer
1/2” NPT 1/2” 316 SS SS-8-WVCR-7-8 1043E303 Contact Manufacturer

Swagelok Co.

Female VCR® to Compression Tube Socket Connectors

Swagelok® female VCR connectors with a compression tube socket with ferrules and a nut on one end. The female VCR nut is silver plated. Avoid chemical processes used for cleaning, electropolishing, and passivation that will remove or etch plating. If plating is removed, thread galling may occur preventing a proper seal.
VCR Size Connection 2 Material Mfg P/N Encole P/N Price
1/4” Tube OD 1/4” 316 SS SS-4-WVCR-6-400 1044E301 Contact Manufacturer
1/4” Tube OD 3/8” 316 SS SS-4-WVCR-6-600 1044E302 Contact Manufacturer
1/2” Tube OD 1/2” 316 SS SS-8-WVCR-6-810 1044E303 Contact Manufacturer

Swagelok Co.

Rotating Female VCR® Unions

Swagelok® VCR unions with a identical rotating female VCR connections on the ends. The nuts are silver plated. Avoid chemical processes used for cleaning, electropolishing, and passivation that will remove or etch plating. If plating is removed, thread galling may occur preventing a proper seal.
VCR Size Material Mfg P/N Encole P/N Price
1/4” 316 SS SS-4-WVCR-6-DF 1045E201 Contact Manufacturer
1/2” 316 SS SS-8-WVCR-6-DF 1045E202 Contact Manufacturer

Swagelok Co.

Tube Weld VCR® Glands, High-Flow Connections

Swagelok® VCR glands with a tube butt weld on one end. These glands are designed for high flow use, compatible with 1/4" VCR connections. For uniform flow, use 1/4" side load retainer style gasket part number: Material-4-VCR-2-ZC-VS
VCR Size Connection 2 Material Mfg P/N Encole P/N Price
1/4” Tube OD 3/8” 316L VAR 6LV-4-HVCR-3-.60SR 1054E301 Contact Manufacturer

Swagelok Co.

VCR® Body Tube Welds, High-Flow Connections

Swagelok® VCR body with a tube butt weld on one end. This body is designed for high flow use, compatible with 1/4" VCR connections.
VCR Size Connection 2 Material Mfg P/N Encole P/N Price
1/4” Tube OD 3/8” 316L VAR 6LV-4-HVCR-1-6TB7 1055E101 Contact Manufacturer

Swagelok Co.

Automatic Tube Weld VCR® Body, High-Flow Connections

Swagelok® VCR body with an automatic tube butt weld on one end. This body is designed for high flow use, compatible with 1/4" VCR connections.
VCR Size Connection 2 Material Mfg P/N Encole P/N Price
1/4” Tube OD 3/8” 316L 316L-4-HVCR-1A6 1056E101 Contact Manufacturer

Swagelok Co.

VCR® Non-Retained Gaskets

Swagelok® VCR nonretained gaskets.
VCR Size Material Mfg P/N Encole P/N Price
1/8” Nickel NI-2-VCR-2-VS 1057E3001 Contact Manufacturer
1/4” Nickel NI-4-VCR-2-VS 1057E3002 Contact Manufacturer
1/2” Nickel NI-8-VCR-2-VS 1057E3003 Contact Manufacturer
5/8” Nickel NI-10-VCR-2-VS 1057E3004 Contact Manufacturer
3/4” Nickel NI-12-VCR-2-VS 1057E3005 Contact Manufacturer
1” Nickel NI-16-VCR-2-VS 1057E3006 Contact Manufacturer
1/8” 316L SS-2-VCR-2-VS 1057E30013 Contact Manufacturer
1/4” 316L SS-4-VCR-2-VS 1057E30014 Contact Manufacturer
1/2” 316L SS-8-VCR-2-VS 1057E30015 Contact Manufacturer
5/8” 316L SS-10-VCR-2-VS 1057E30016 Contact Manufacturer
3/4” 316L SS-12-VCR-2-VS 1057E30017 Contact Manufacturer
1” 316L SS-16-VCR-2-VS 1057E30018 Contact Manufacturer
1/8” Copper CU-2-VCR-2-VS 1057E30025 Contact Manufacturer
1/4” Copper CU-4-VCR-2-VS 1057E30026 Contact Manufacturer
1/2” Copper CU-8-VCR-2-VS 1057E30027 Contact Manufacturer
5/8” Copper CU-10-VCR-2-VS 1057E30028 Contact Manufacturer
3/4” Copper CU-12-VCR-2-VS 1057E30029 Contact Manufacturer
1” Copper CU-16-VCR-2-VS 1057E30030 Contact Manufacturer

Swagelok Co.

VCR® Gasket Retainer Assemblies

Swagelok® VCR retained gaskets.
VCR Size Material Mfg P/N Encole P/N Price
1/4” Nickel NI-4-VCR-2-GR-VS 1058E2001 Contact Manufacturer
1/2” Nickel NI-8-VCR-2-GR-VS 1058E2002 Contact Manufacturer
3/4” Nickel NI-12-VCR-2-GR-VS 1058E2003 Contact Manufacturer
1” Nickel NI-16-VCR-2-GR-VS 1058E2004 Contact Manufacturer
1/4” 316L SS-4-VCR-2-GR-VS 1058E2009 Contact Manufacturer
1/2” 316L SS-8-VCR-2-GR-VS 1058E20010 Contact Manufacturer
3/4” 316L SS-12-VCR-2-GR-VS 1058E20011 Contact Manufacturer
1” 316L SS-16-VCR-2-GR-VS 1058E20012 Contact Manufacturer
1/4” Copper CU-4-VCR-2-GR-VS 1058E20017 Contact Manufacturer
1/2” Copper CU-8-VCR-2-GR-VS 1058E20018 Contact Manufacturer
3/4” Copper CU-12-VCR-2-GR-VS 1058E20019 Contact Manufacturer
1” Copper CU-16-VCR-2-GR-VS 1058E20020 Contact Manufacturer

Loading...
