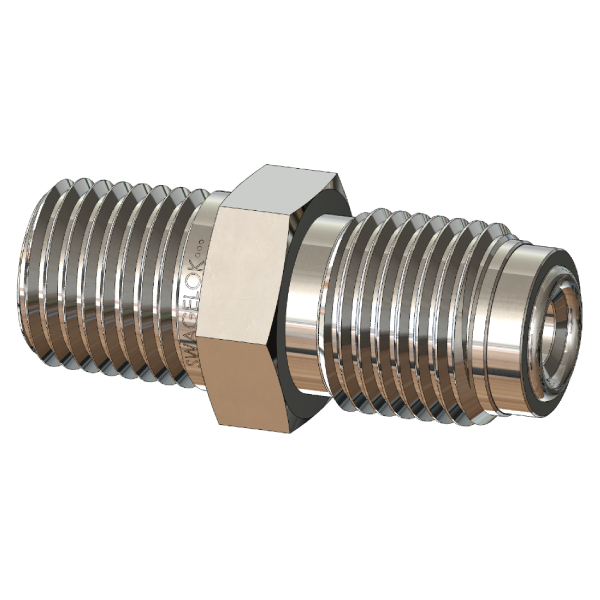

VCR® Fitting Male NPT Connector
Material: 316 SS, VCR Size: 1”, Connection 2: NPT 1”, Cleaning Process: Standard process
Swagelok® VCR fittings with a male NPT on one end. During installation of the VCR mating components the fitting must remain stationary. This fitting can be assembled only to glands with rotating male of female threaded nut.
Cleaning Process:
·
VCR Size
1”
·
Connection 2
NPT 1”
·
Material
316 SS
·
Material Specification
ASME SA479, ASTM A276
·
Gasket Remarks
·
Cleaning Process Remarks
Standard Cleaning and Packaging (SC-10). Components are cleaned to remove oils, grease and loose particles.
·

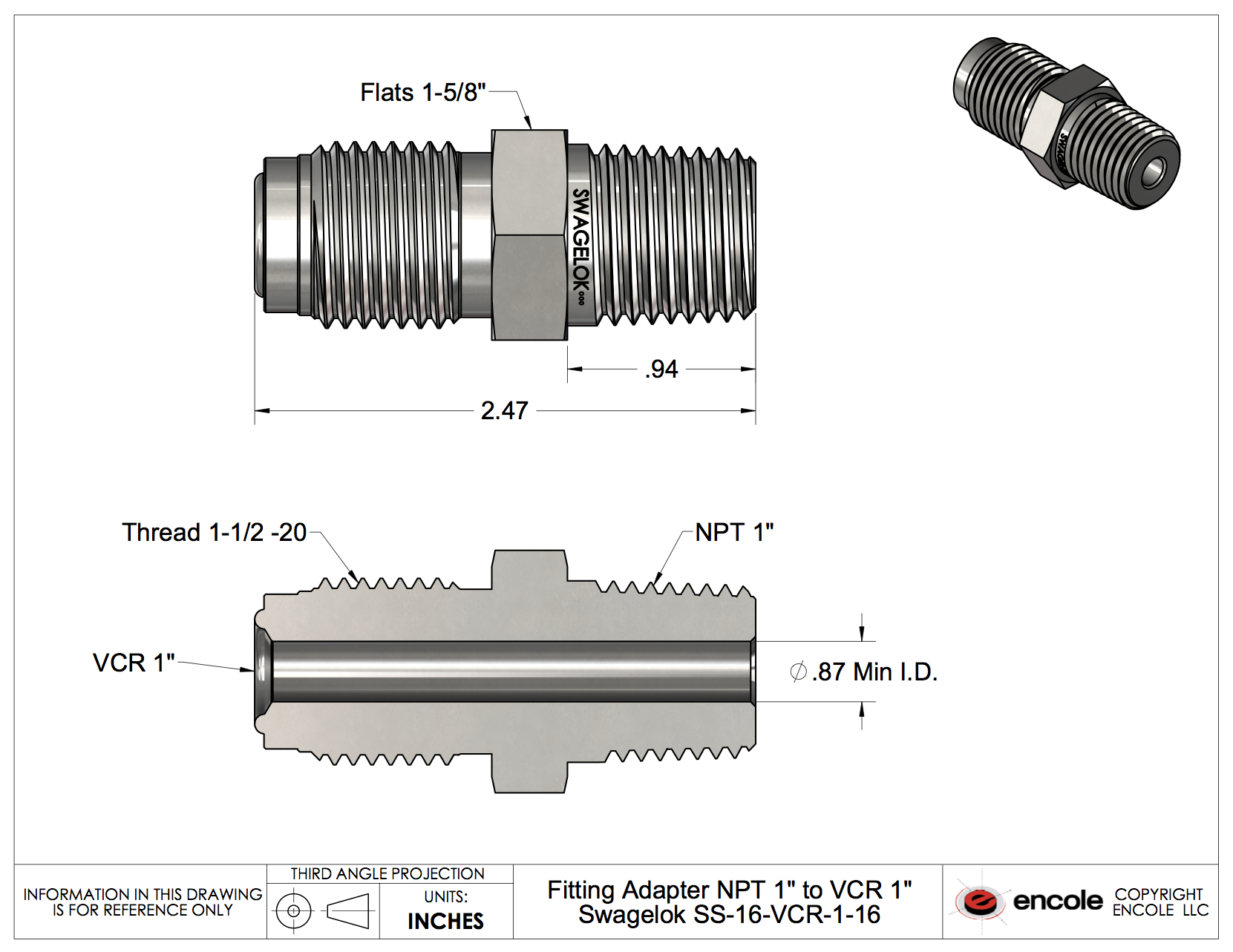

The information in this Drawing and 3-D models is provided for reference only.
Details
Product Drawings and CAD Models Disclaimer
Manufacturing processes and resulting tolerances may result in variations in the specifications provided. Many manufacturers consider their GD&T proprietary and do not provide this to Encole. While we believe the information to be generally correct, it is subject to change without notice and is not guaranteed. Drawings and CAD models are prepared by the Original Manufacturers or CAD expert contibutors or Encole staff.
Part number: 1024E909
Manufacturer's part number:
SS-16-VCR-1-16
SS-16-VCR-1-16
Manufacturer:
Swagelok Co.
Swagelok Co.
Price: $ Contact Manufacturer
