Swagelok Co.

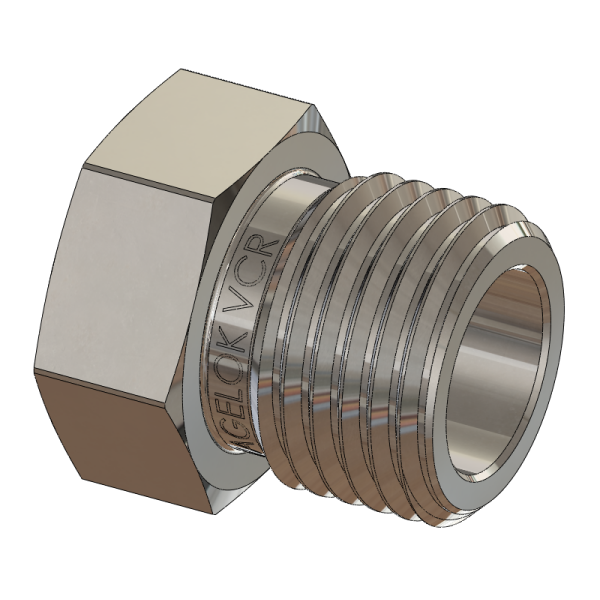

VCR® Male Nut
Material: 316 SS, VCR Size: 3/4”, Tube Opening Diameter: 0.89”
Swagelok® VCR nut to form a swivel male VCR connection.
·
VCR Size
3/4”
·
Material
316 SS
·
Tube Opening Diameter
0.89”
·
Material Specification
ASME SA479, ASTM A276
·
High Flow Connections
·
Geometry Remarks

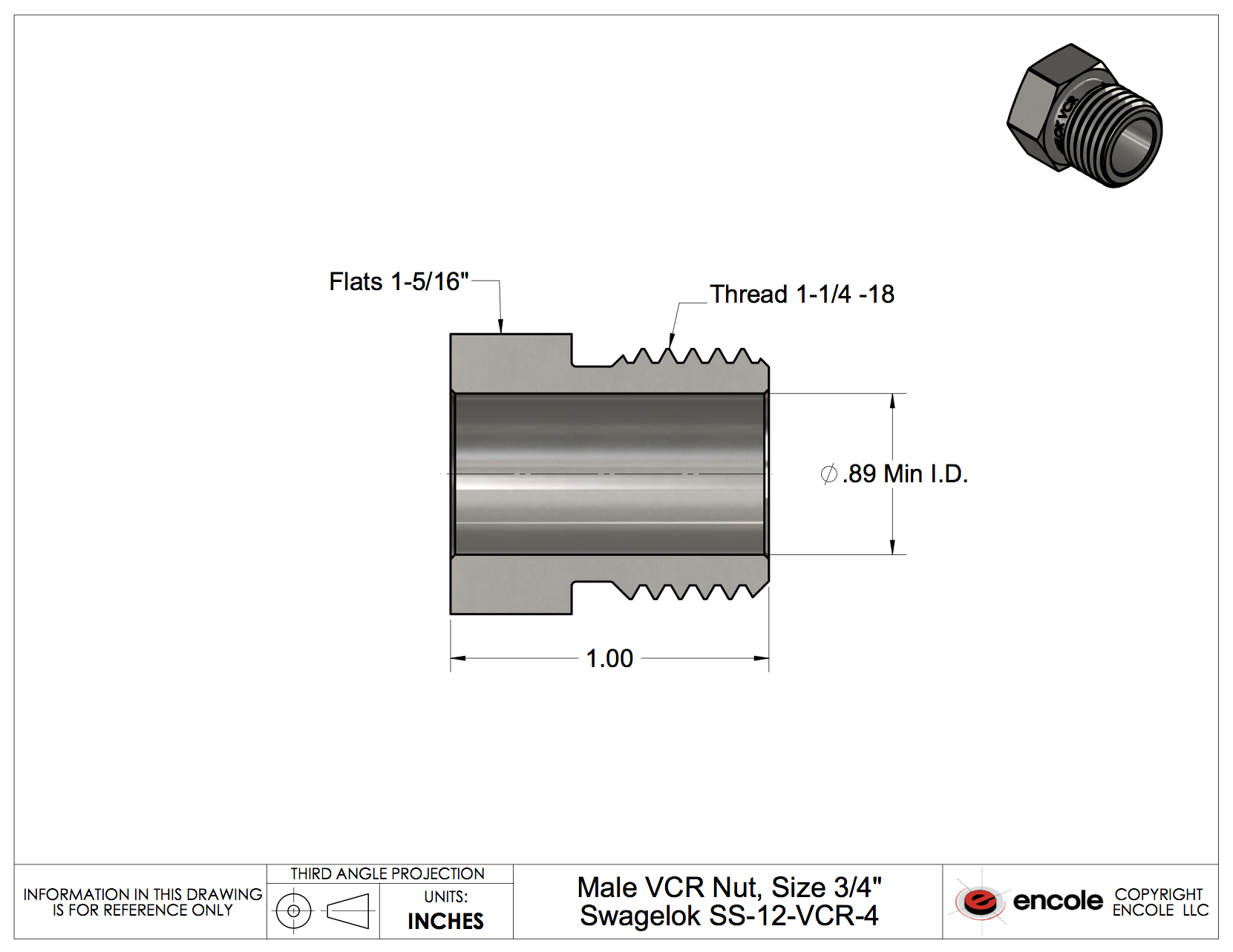

The information in this Drawing and 3-D models is provided for reference only.
Details
Product Drawings and CAD Models Disclaimer
Manufacturing processes and resulting tolerances may result in variations in the specifications provided. Many manufacturers consider their GD&T proprietary and do not provide this to Encole. While we believe the information to be generally correct, it is subject to change without notice and is not guaranteed. Drawings and CAD models are prepared by the Original Manufacturers or CAD expert contibutors or Encole staff.
Part number: 1050E706
Manufacturer's part number:
SS-12-VCR-4
SS-12-VCR-4
Manufacturer:
Swagelok Co.
Swagelok Co.
Price: $ Contact Manufacturer
Supplier:
Swagelok Co.
Sohon, OH
Tel.: 510.933.2500
