Tube Weld VCR® Gland, High-Flow Connections
Material: 316L VAR, VCR Size: 1/4”, Connection 2: Tube OD 3/8”, Length: 0.60”, Cleaning Process: Standard process

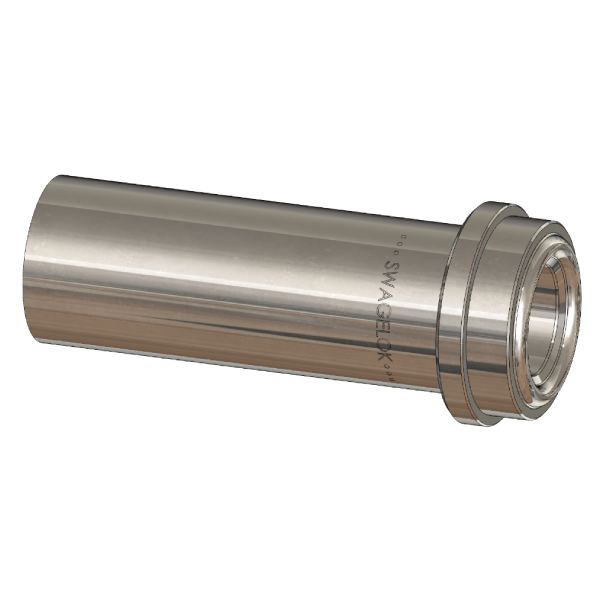

Swagelok® VCR gland with a tube butt weld on one end. This gland is designed for high flow use, compatible with 1/4" VCR connections. For uniform flow, use 1/4" side load retainer style gasket part number: Material-4-VCR-2-ZC-VS
Cleaning Process:
·
VCR Size
1/4”
·
Connection 2
Tube OD 3/8”
·
Material
316L VAR
·
Length
·
Material Specification
SEMI F20-0305 High Purity
·
Surface Finish
Roughness average of 10 microinch (0.25 micrometer) Ra.
·
Nominal Wall Thickness
0.035”
·
Cleaning Process Remarks
Standard Cleaning and Packaging (SC-10). Components are cleaned to remove oils, grease and loose particles.
·

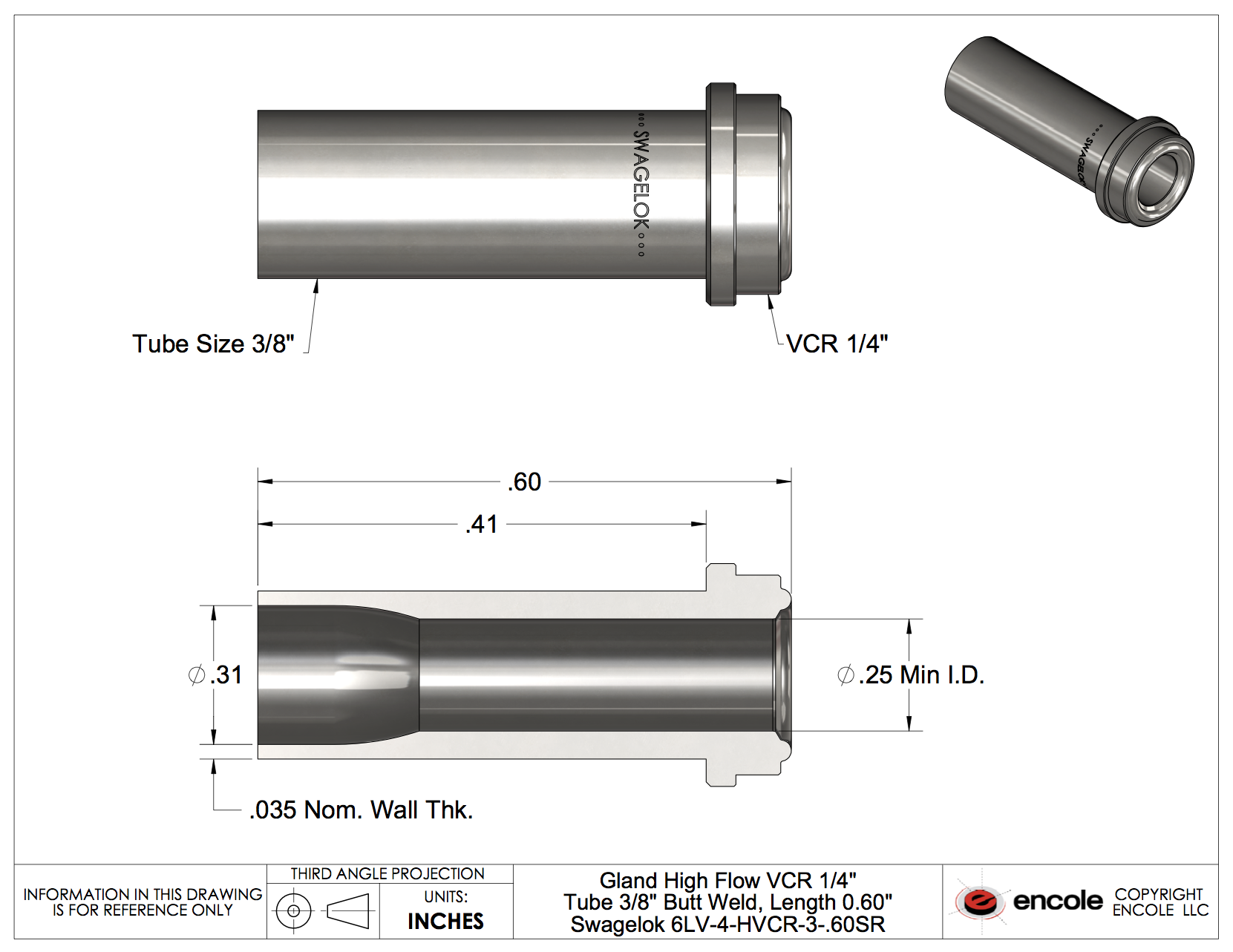

The information in this Drawing and 3-D models is provided for reference only.
Details
Product Drawings and CAD Models Disclaimer
Manufacturing processes and resulting tolerances may result in variations in the specifications provided. Many manufacturers consider their GD&T proprietary and do not provide this to Encole. While we believe the information to be generally correct, it is subject to change without notice and is not guaranteed. Drawings and CAD models are prepared by the Original Manufacturers or CAD expert contibutors or Encole staff.
Part number: 1054E301
Manufacturer's part number:
6LV-4-HVCR-3-.60SR
