Male SAE J514 to Female NPT Pipe Fitting Adapter
Material: 316 SS, Nominal Pipe Size: SAE-12, Connection 2: Female NPT 3/4”

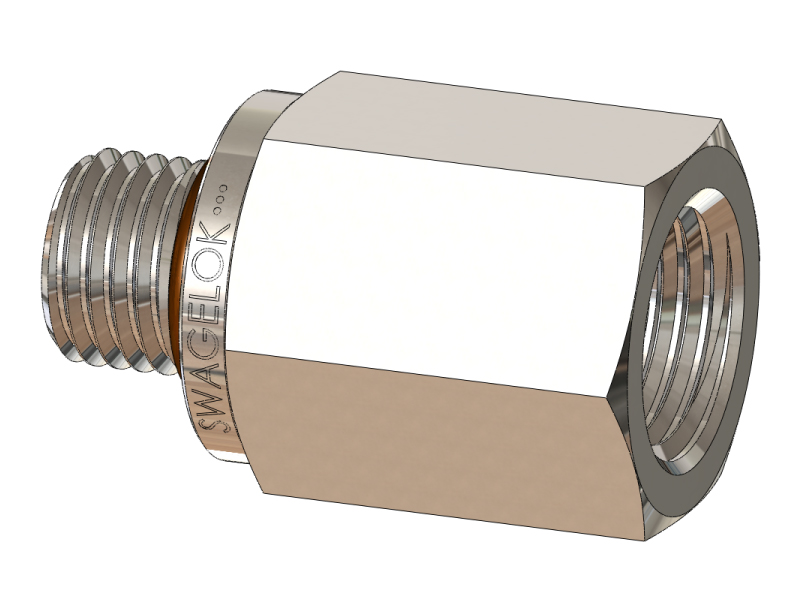

Swagelok® SAE to female NPT pipe fitting adapter. The SAE end conforms to the SAE J514 geometry designed to fit into J1926/1 port.
·
Nominal Pipe Size
SAE-12
·
Connection 2
Female NPT 3/4”
·
Material
316 SS
·
Material Specification
ASTM A276, ASME SA479, EN 1.14401
·
O-Ring Material
O-ring material is durometer 90 fluorocarbon FKM.
·
SAE/MS Thread Specification
ASME B1.1
·
Pressure Rating
3626 psi (249 bar)
·
NPT Thread Specification
ASME B1.20.1, SAE AS71051

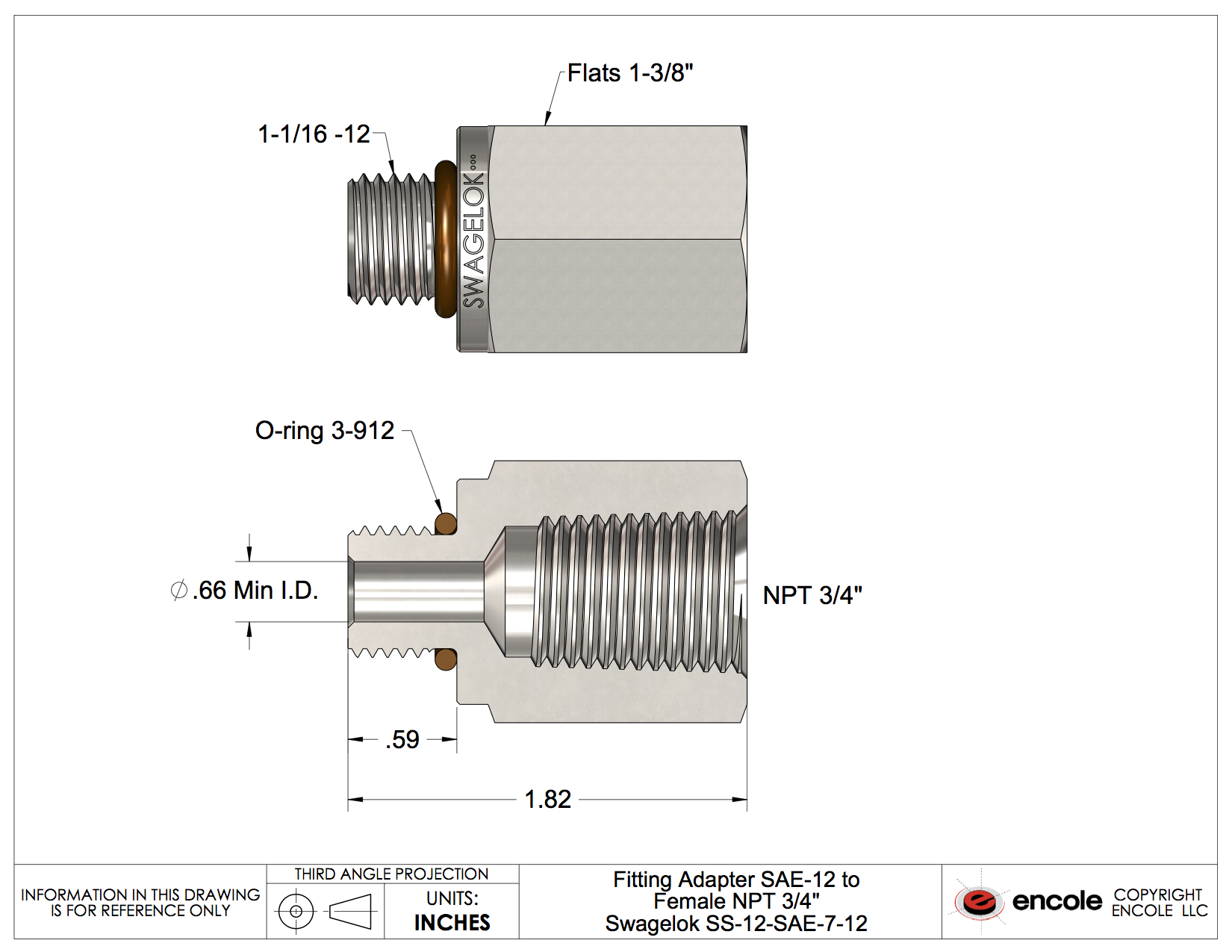

The information in this Drawing and 3-D models is provided for reference only.
Details
Product Drawings and CAD Models Disclaimer
Manufacturing processes and resulting tolerances may result in variations in the specifications provided. Many manufacturers consider their GD&T proprietary and do not provide this to Encole. While we believe the information to be generally correct, it is subject to change without notice and is not guaranteed. Drawings and CAD models are prepared by the Original Manufacturers or CAD expert contibutors or Encole staff.
Part number: 1072E504
Manufacturer's part number:
SS-12-SAE-7-12
SS-12-SAE-7-12
Manufacturer:
Swagelok Co.
Swagelok Co.
Price: $ Contact Manufacturer
