SAE J514 to JIC (AN Flare) Pipe Fitting Adapter
Material: 316 SS, Nominal Pipe Size: SAE-8, Connection 2: AN-8, Tube Flare 1/2”

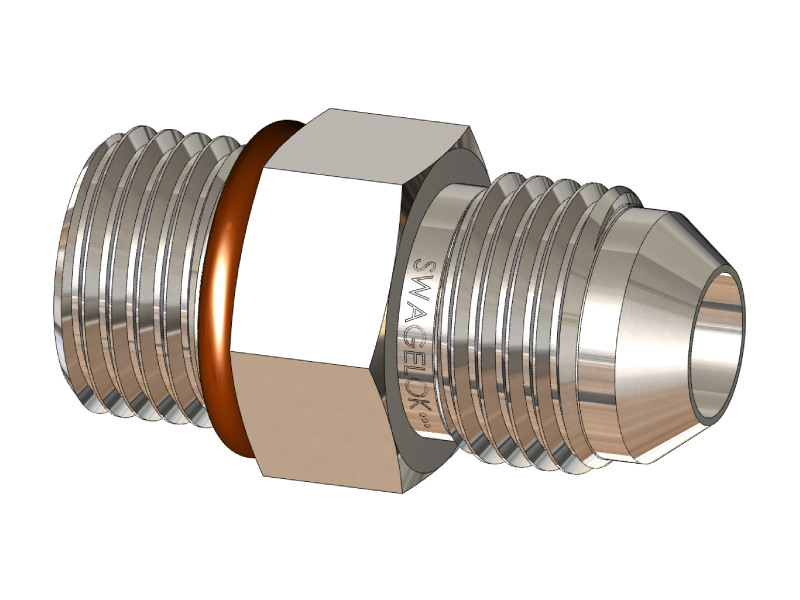

Swagelok® SAE to AN flare pipe fitting adapter. The SAE end conforms to the SAE J514 geometry designed to fit into J1926/1 port.
·
Nominal Pipe Size
SAE-8
·
Connection 2
AN-8, Tube Flare 1/2”
·
Material
316 SS
·
Material Specification
ASTM A276, ASME SA479, EN 1.14401
·
O-Ring Material
O-ring material is durometer 90 fluorocarbon FKM.
·
SAE/MS Thread Specification
ASME B1.1
·
Pressure Rating
4568 psi (314 bar)
The information in this Drawing and 3-D models is provided for reference only.
Details
Product Drawings and CAD Models Disclaimer
Manufacturing processes and resulting tolerances may result in variations in the specifications provided. Many manufacturers consider their GD&T proprietary and do not provide this to Encole. While we believe the information to be generally correct, it is subject to change without notice and is not guaranteed. Drawings and CAD models are prepared by the Original Manufacturers or CAD expert contibutors or Encole staff.
Part number: 1073E503
Manufacturer's part number:
SS-8-SAE-1-8AN
SS-8-SAE-1-8AN
Manufacturer:
Swagelok Co.
Swagelok Co.
Price: $ Contact Manufacturer
