NPT-Threaded High Pressure Sight Glass, Quartz Window, 316L Steel Housing
Thread: NPT 1

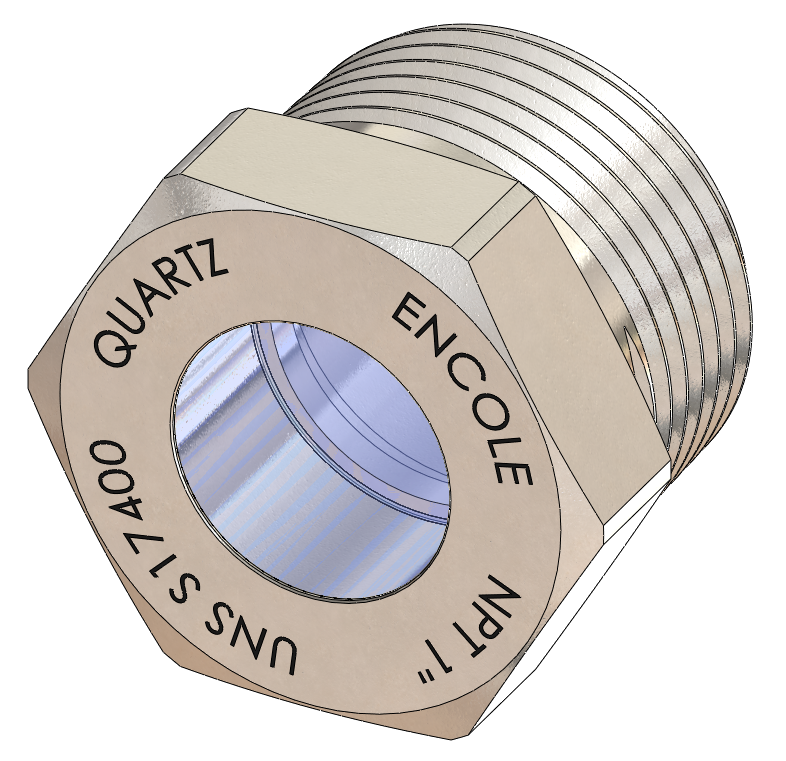

Sight window with NPT threads conforming to ASME B1.20.1. For visual inspection, machine vision, laser sensors, in use with all common hydraulic oils, refrigerants, pharmaceutical processing equipment.This sight glass is an ideal choice for applications requiring no compromises in optical clarity. The window is flat on both sides, and precisely polished to surface quality of 40-20 S-D per MIL-O-13830. Because the window material is quartz, this sight glass can be used in applications requiring extended transmission ranges. Specifically, this window transmits over 50 percent of light from 217 to 3600 nm wavelengths. Quartz window is sealed into the housing with non-outgassing quartz-filled bond forming a single-piece part. This sight glass has a long working life under severe temperature swings and prolonged exposures to UV light.

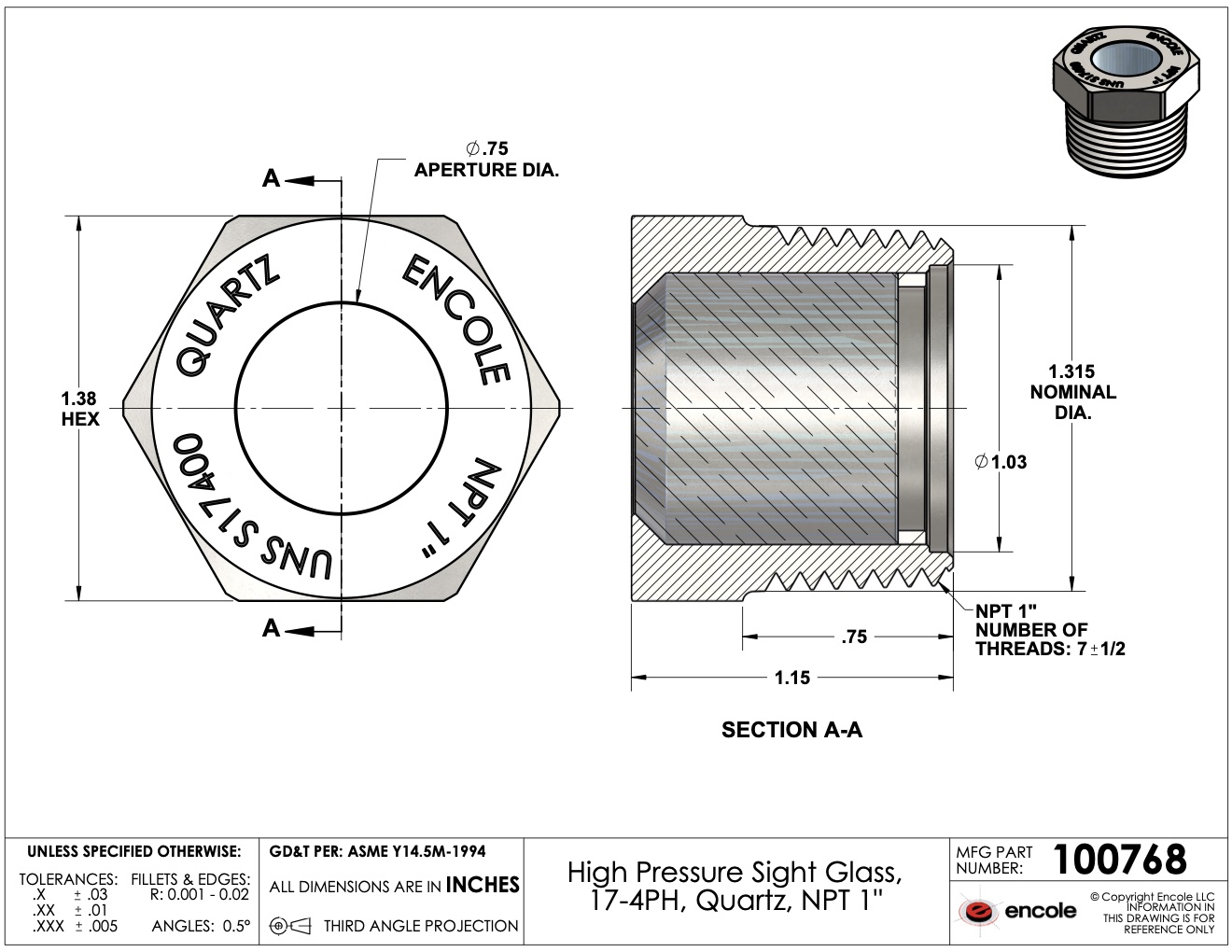

Product Drawings and CAD Models Disclaimer
Manufacturing processes and resulting tolerances may result in variations in the specifications provided. Many manufacturers consider their GD&T proprietary and do not provide this to Encole. While we believe the information to be generally correct, it is subject to change without notice and is not guaranteed. Drawings and CAD models are prepared by the Original Manufacturers or CAD expert contibutors or Encole staff.
