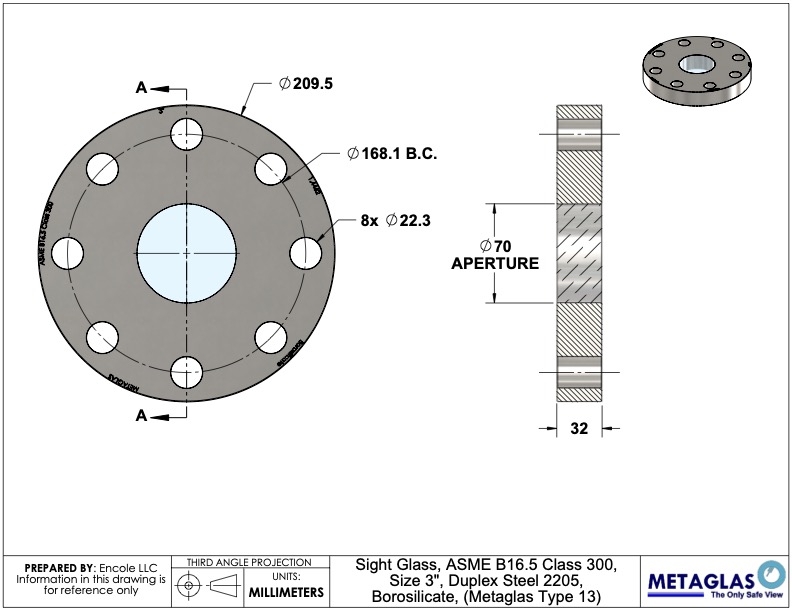

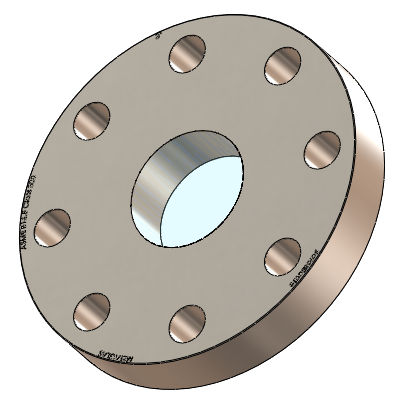

ASME B16.5 - Flanged Sight Glass, Borosilicate Windows
ASME Class: 300, Nominal Pipe Size: 3 inch, Housing Material: Duplex 2205
Sight window for corrosion resistant applications. Flange conforms to the standard ASME B16.5 geometry. Suitable configuration for flue gas scrubber systems, cooling towers, incinerators, geothermal wells, deep/shallow sea water applications, biofuels, food, and pharmaceutical processing equipment. Requires parallel mounting flat face and full gasket. Fusing glass to metal creates a hermetically sealed single-piece part. The advantage of this construction is high strength of the glass, which ensures safety of operation, even during cycling operating temperatures common with equipment starts and stops. The part is easy to install, and has a long working life without maintenance.
Product Drawings and CAD Models Disclaimer
Manufacturing processes and resulting tolerances may result in variations in the specifications provided. Many manufacturers consider their GD&T proprietary and do not provide this to Encole. While we believe the information to be generally correct, it is subject to change without notice and is not guaranteed. Drawings and CAD models are prepared by the Original Manufacturers or CAD expert contibutors or Encole staff.
Met-13A-30-3S
