Metaglas, Herberts Industrieglas GmbH & Co. KG

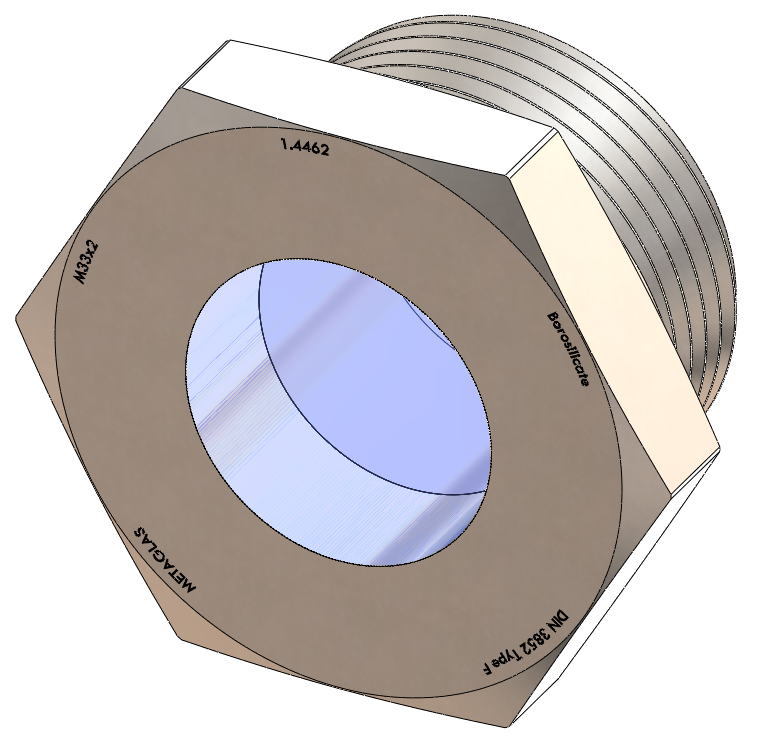

Metric Threaded Sight Glass, Borosilicate Fused to Metal Housing
Thread: M33 x 2, Housing Material: Duplex 2205
Sight window with straight metric threads sealing with an O-ring. Female connection port conforming to DIN 3852 Type F. For visual inspection, machine vision, optical sensors, in use with all common hydraulic oils, refrigeration, water heaters, and compressed air applications. Fusing glass to metal creates a hermetically sealed single-piece part. The advantage of this construction is high strength of the glass, which ensures safety of operation, even during cycling operating temperatures common with equipment starts and stops. The part is easy to install, and has a long working life without maintenance.

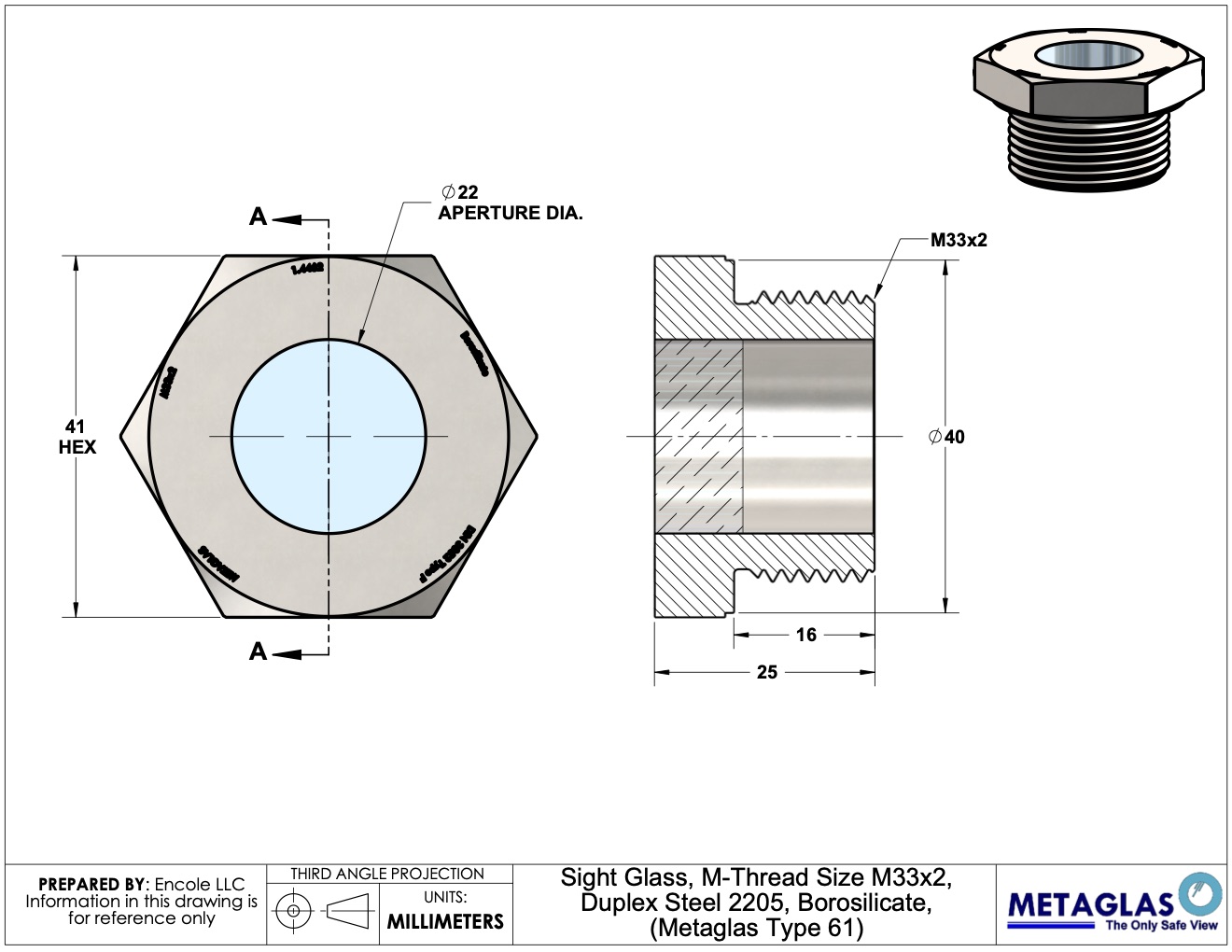

Product Drawings and CAD Models Disclaimer
Manufacturing processes and resulting tolerances may result in variations in the specifications provided. Many manufacturers consider their GD&T proprietary and do not provide this to Encole. While we believe the information to be generally correct, it is subject to change without notice and is not guaranteed. Drawings and CAD models are prepared by the Original Manufacturers or CAD expert contibutors or Encole staff.
Met-61-M33x2S
