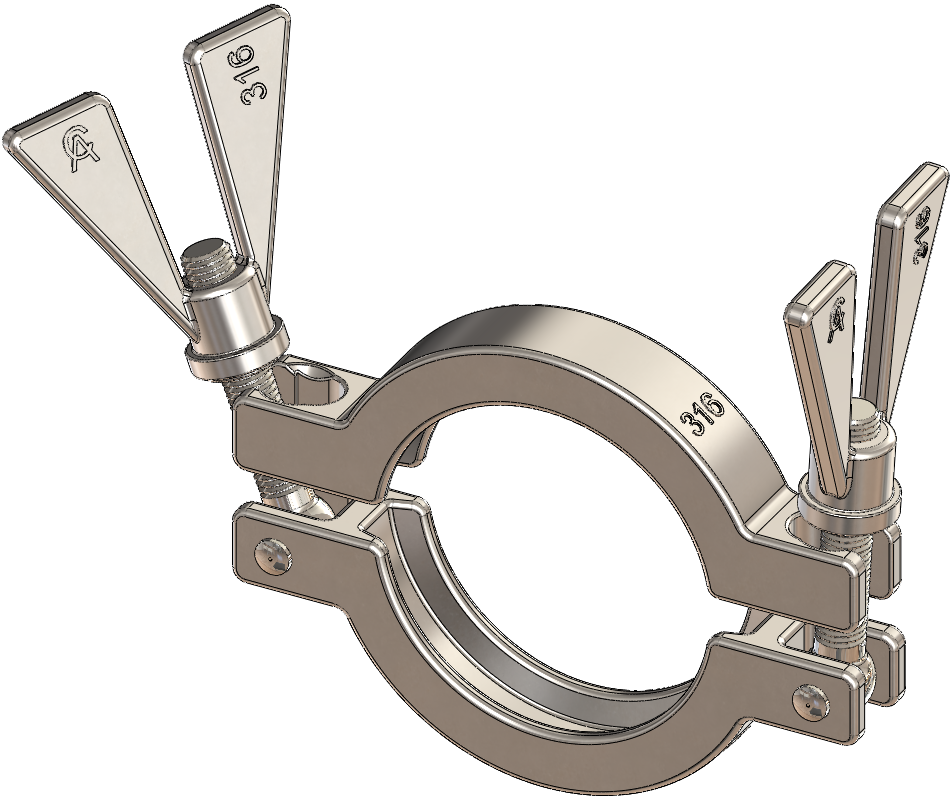

Hygienic Metric Clamp, SH Type 2 , 316 Stainless Steel, Wing Nut
Clamp Size: ISO-300
SH Metric Clamp in 316 Stainless Steel. Double wing nuts for move even clamping force distribution.
·
Clamp Size
ISO-300
·
Max Operating Pressure
60 psi
·
Clamp Material
AISI 316 Stainless
·
Max Operating Temp.
450 F

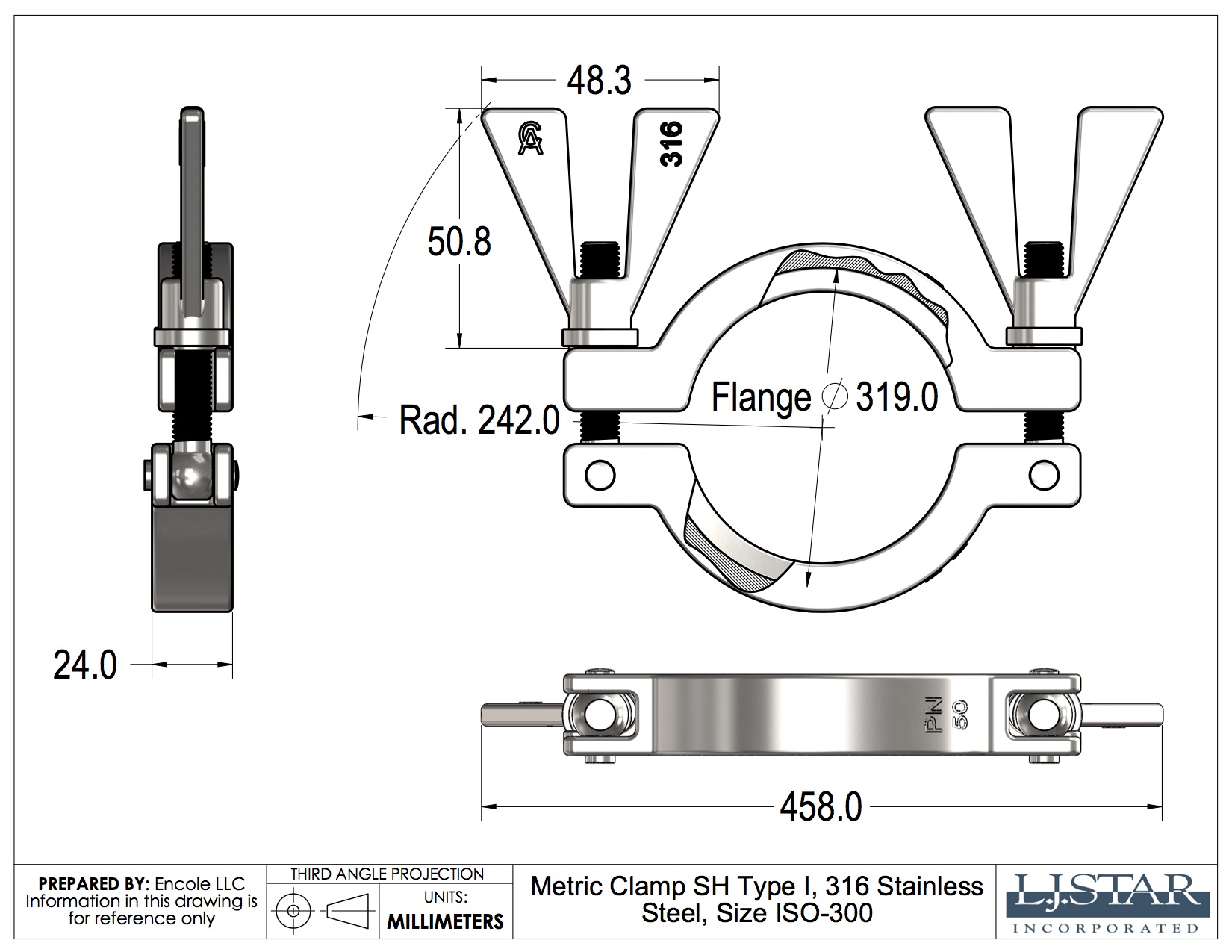

The information in this Drawing and 3-D models is provided for reference only.
Details
Product Drawings and CAD Models Disclaimer
Manufacturing processes and resulting tolerances may result in variations in the specifications provided. Many manufacturers consider their GD&T proprietary and do not provide this to Encole. While we believe the information to be generally correct, it is subject to change without notice and is not guaranteed. Drawings and CAD models are prepared by the Original Manufacturers or CAD expert contibutors or Encole staff.
Part number: 808E202
Manufacturer's part number:
CLSH-1258
CLSH-1258
Manufacturer:
L.J. Star, Inc
L.J. Star, Inc
Price: $ 395.15 each
Supplier:
L.J. Star, Inc
Twinsburg, OH
Tel.: (330) 405-3040
