Check-All Valve
Brass Housing Universal Low Pressure Check Valve, Female NPT
Inlet: 2” Female NPT, Housing Material: Brass, Cracking Pressure: 3.50 psi, Spring Material: 316 SS, Seat Material: Aflas, Spring Encapsulation Option: Standard

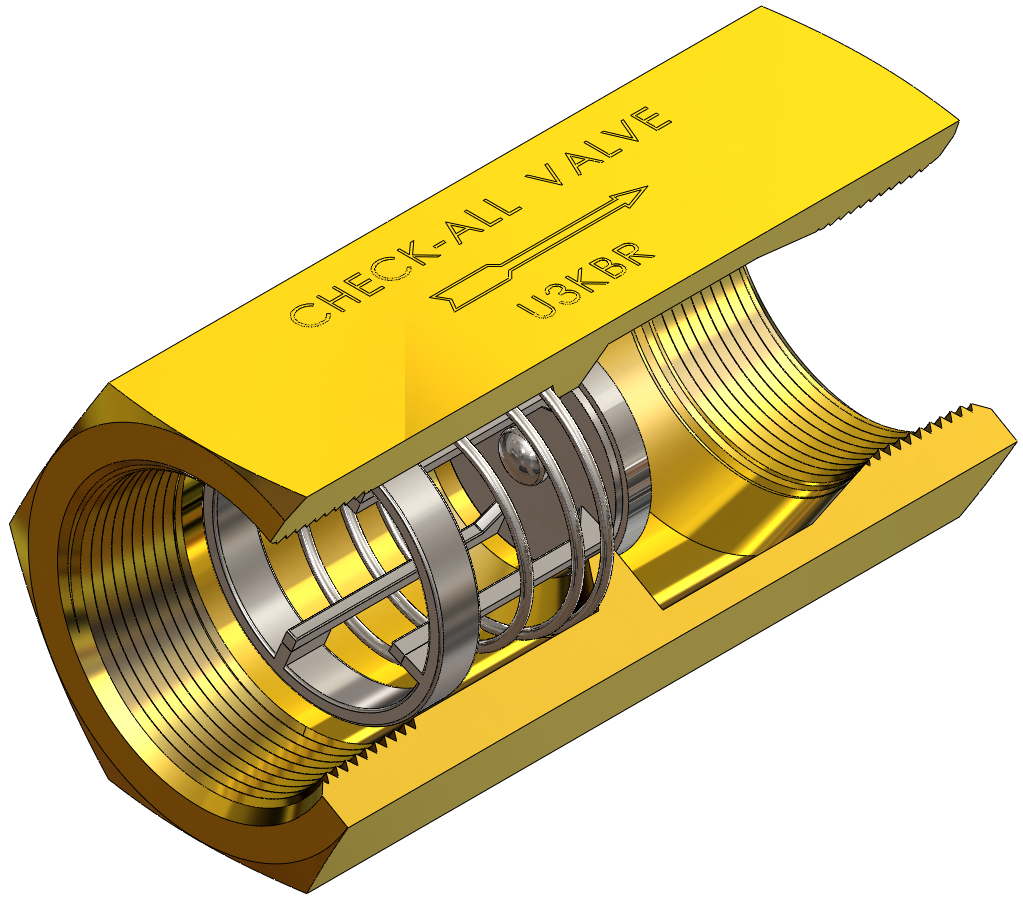

Brass housing check valve in a single-piece body construction. The body of the valve is machined from a bar stock for a compact design. The valve is designed for a minimum pressure drop. Connections are female NPT threads conforming to ASME B1.20.1. This valve can be used a low pressure relief valve or vacuum breaker by choosing the desired spring settings. Once set, the cracking pressure remains consistent over the life of the valve without requiring maintenance. PED 2014/68/EU Compliant. NOTE: If the ultimate destination of this valve is to the European Union, please include that at the time of purchase so the required arrangement can be made. For reference: indicate the type of media (gas or liquid) and the danger presented by the media (Group 1 - flammable, toxic and/or oxidizing, or Group 2 - non-dangerous).
Seat Material:
Spring Encapsulation Option:

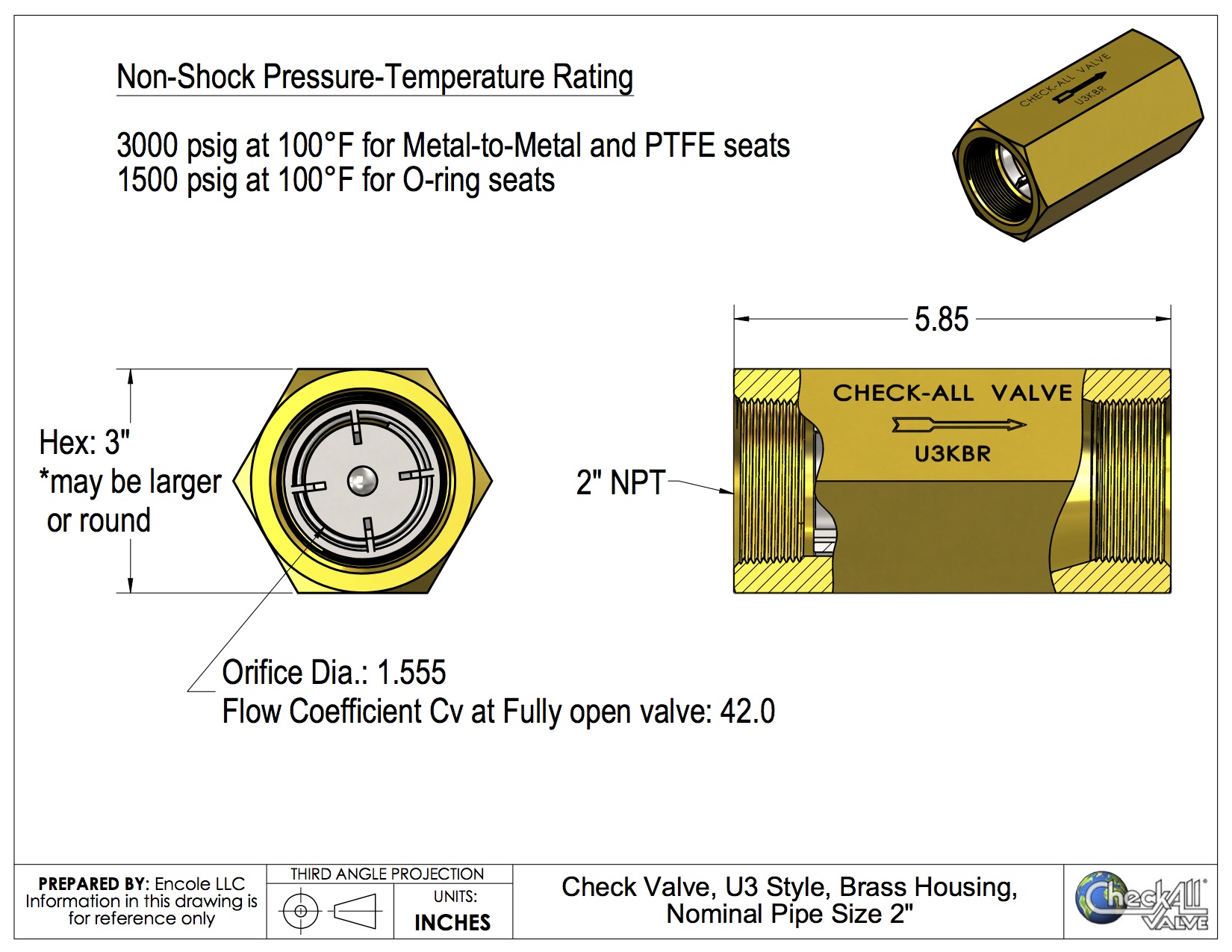

Product Drawings and CAD Models Disclaimer
Manufacturing processes and resulting tolerances may result in variations in the specifications provided. Many manufacturers consider their GD&T proprietary and do not provide this to Encole. While we believe the information to be generally correct, it is subject to change without notice and is not guaranteed. Drawings and CAD models are prepared by the Original Manufacturers or CAD expert contibutors or Encole staff.
U3KBRAS3.50SS
