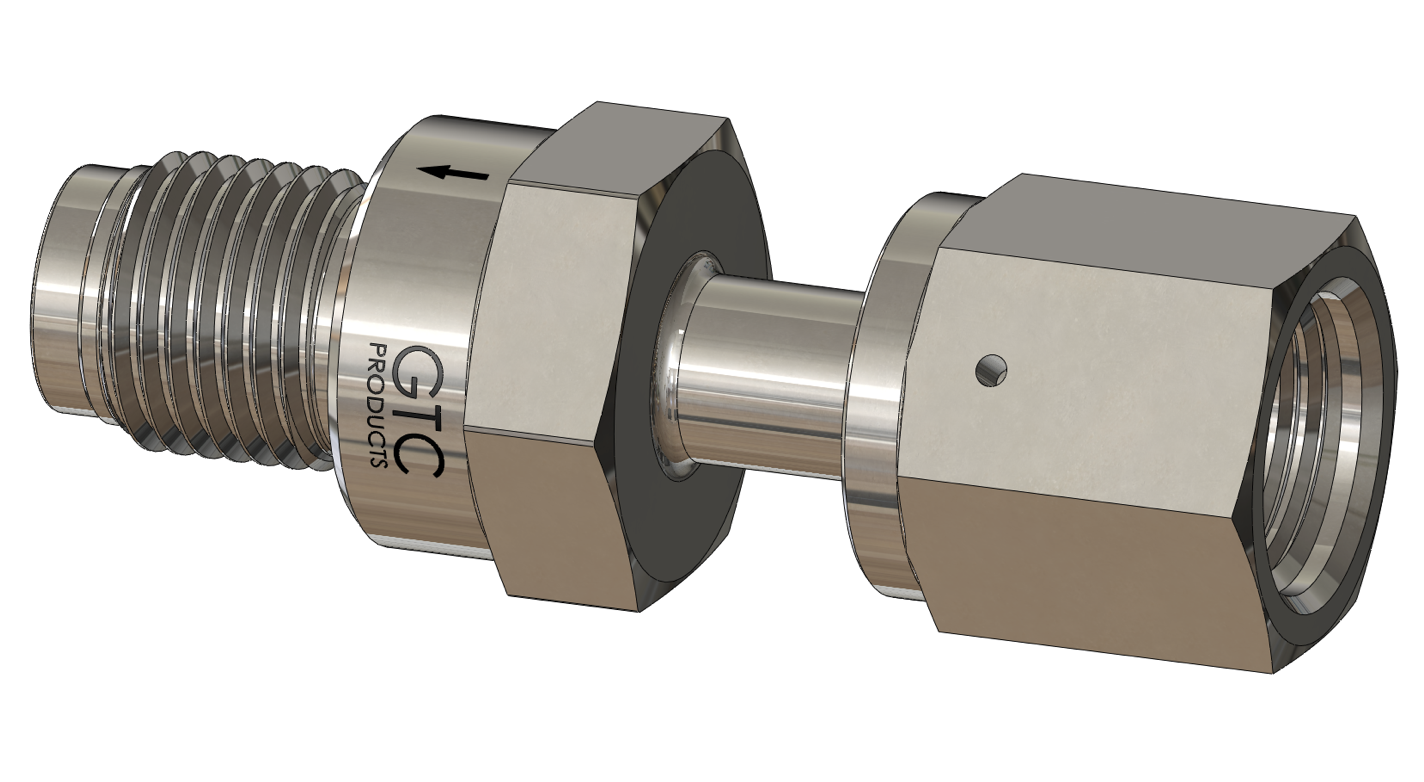

Ultra High Purity Check Valve, Female VCR to Male VCR, Electropolished 316L VAR SS
Inlet: VCR 1/4” Female, Outlet: VCR 1/4”
Inlet connection is a female VCR® fitting, the outlet connection is a fixed male VCR® Swagelok fitting. This ultra high purity check valve is made from electropolished 316L stainless steel body having no internal spring. Typical uses are vacuum lines in Class 10,000 semiconductor fabs. This valve has a springless design with all welded construction ensuring chatter-free operation. An ideal choice for applications with requirements for particle-free generation, such as in vacuum reactor vessels, photonics, medical and pharmaceutical equipment. The valve is assembled and tested in the GTC Products, Texas USA facility.

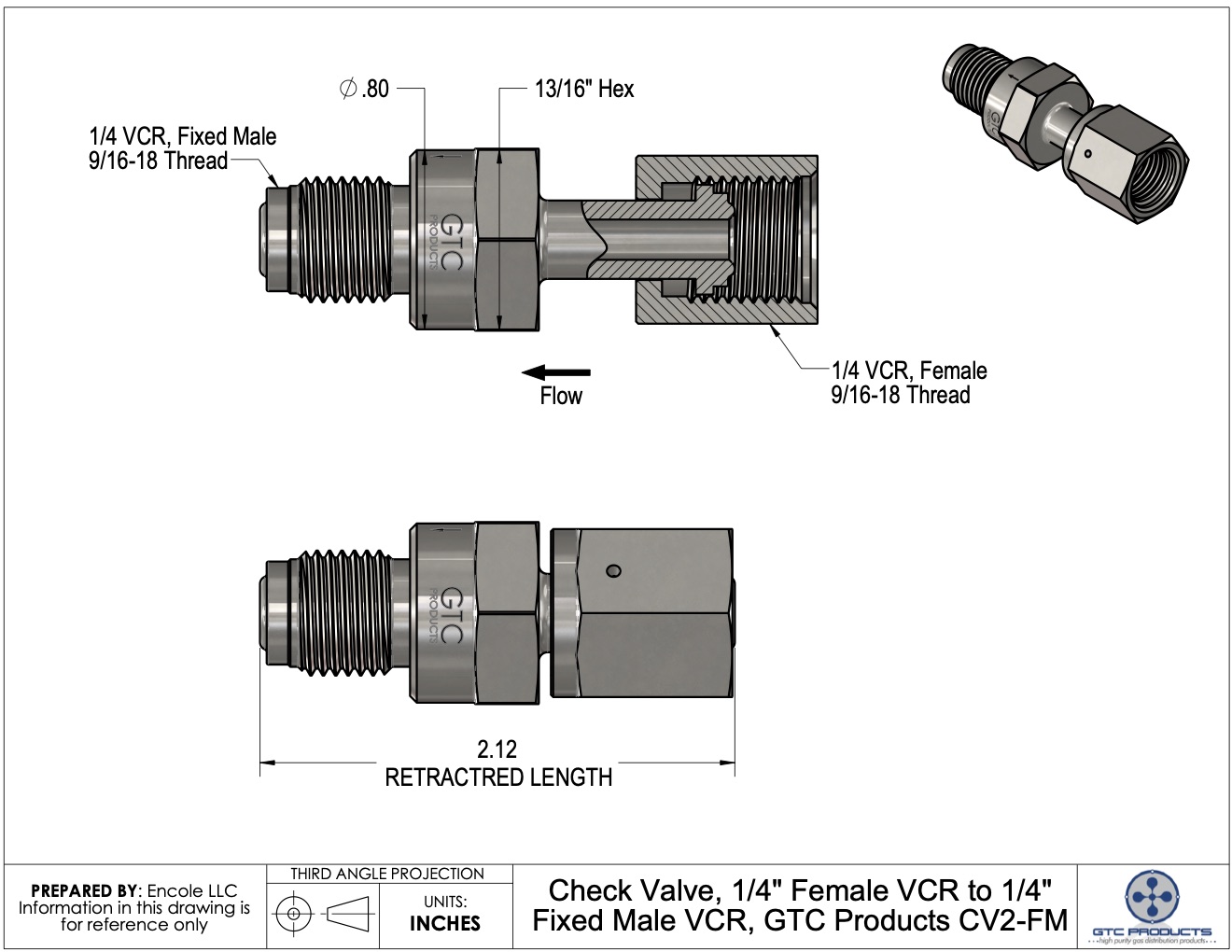

Product Drawings and CAD Models Disclaimer
Manufacturing processes and resulting tolerances may result in variations in the specifications provided. Many manufacturers consider their GD&T proprietary and do not provide this to Encole. While we believe the information to be generally correct, it is subject to change without notice and is not guaranteed. Drawings and CAD models are prepared by the Original Manufacturers or CAD expert contibutors or Encole staff.
CV2-FM
