Flow Indicator ASME B16.5 with NPT Threaded Connections, Drip Tube Style
ASME Class: Class 150, Pipe Size: 1 inch, Housing Material: Stainless Steel 316, Window Material: Metaglas® Fused Window , Sealing Gasket: PTFE Gylon 3504, Bolting Material: SAE Gr. 5 Carbon Steel, Shield Option: No Shield
Drip tube visual flow indicator with NPT threaded female ports. Best suited for vertical lines with downward flow direction. Thread form complies with the ASME B1.20.1 standard, in carbon steel housing. Designed with front and back windows for backlighting making it easy to see flow variations inside any pipeline, even when used with dark liquids. These units are particularly recommended for applications having low or intermittent flow rates, such as distillation process. This flow indicator is installed in-line of the pipeline between two threaded pipe ends. The windows are internally sealed to the metal housing with flat gaskets. Standard safety and maintenance features include: Independently bolted glass retainers.

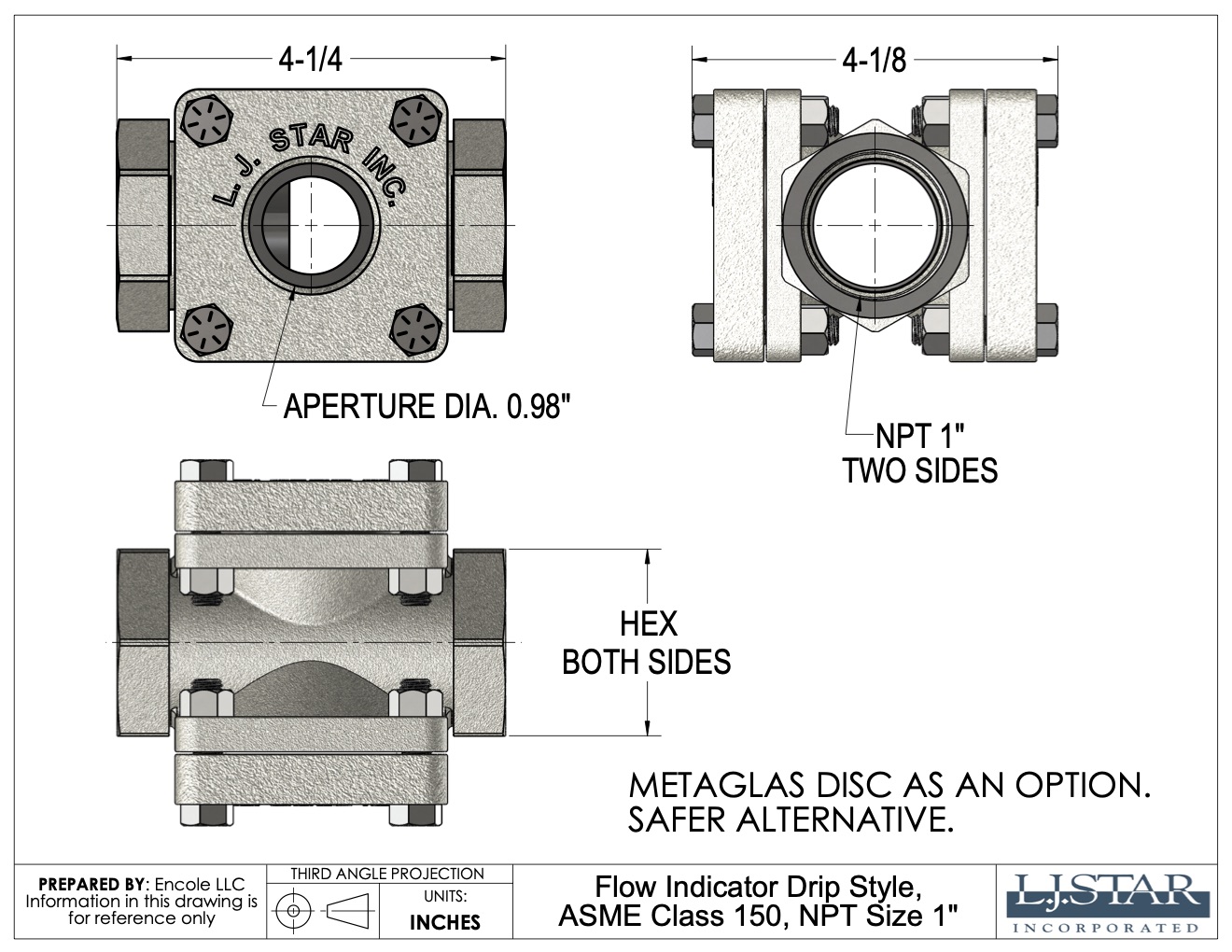

Product Drawings and CAD Models Disclaimer
Manufacturing processes and resulting tolerances may result in variations in the specifications provided. Many manufacturers consider their GD&T proprietary and do not provide this to Encole. While we believe the information to be generally correct, it is subject to change without notice and is not guaranteed. Drawings and CAD models are prepared by the Original Manufacturers or CAD expert contibutors or Encole staff.
