Flapper Paddle Style Flow Indicator with Flanged ASME B16.5 Connections
ASME Class: Class 150, Pipe Size: 1-1/2 inch, Housing Material: Stainless Steel 316, Window Material: Tempered Borosilicate Glass, Sealing Gasket: PTFE Gylon 3504, Lining Option: No Lining, Bolting Material: SAE Gr. 5 Carbon Steel, Shield Option: No Shield
Flapper-style visual flow indicator with ASME B16.5 flanged connections. Recommended for monitoring either horizontal or vertical lines with upward flow. The flapper position indicates current flow rate. Flapper style indicators are the appropriate choice for use with clear and semi-opaque solutions. Designed with front and back windows for backlighting making it easy to see flow variations inside any pipeline. This flow indicator is installed in-line of the pipe between two mating ANSI RF flanges. This model offers pipeline view through windows internally sealed to the metal housing with flat gaskets. Standard Safety and Maintenance Features include independently bolted glass retainers.

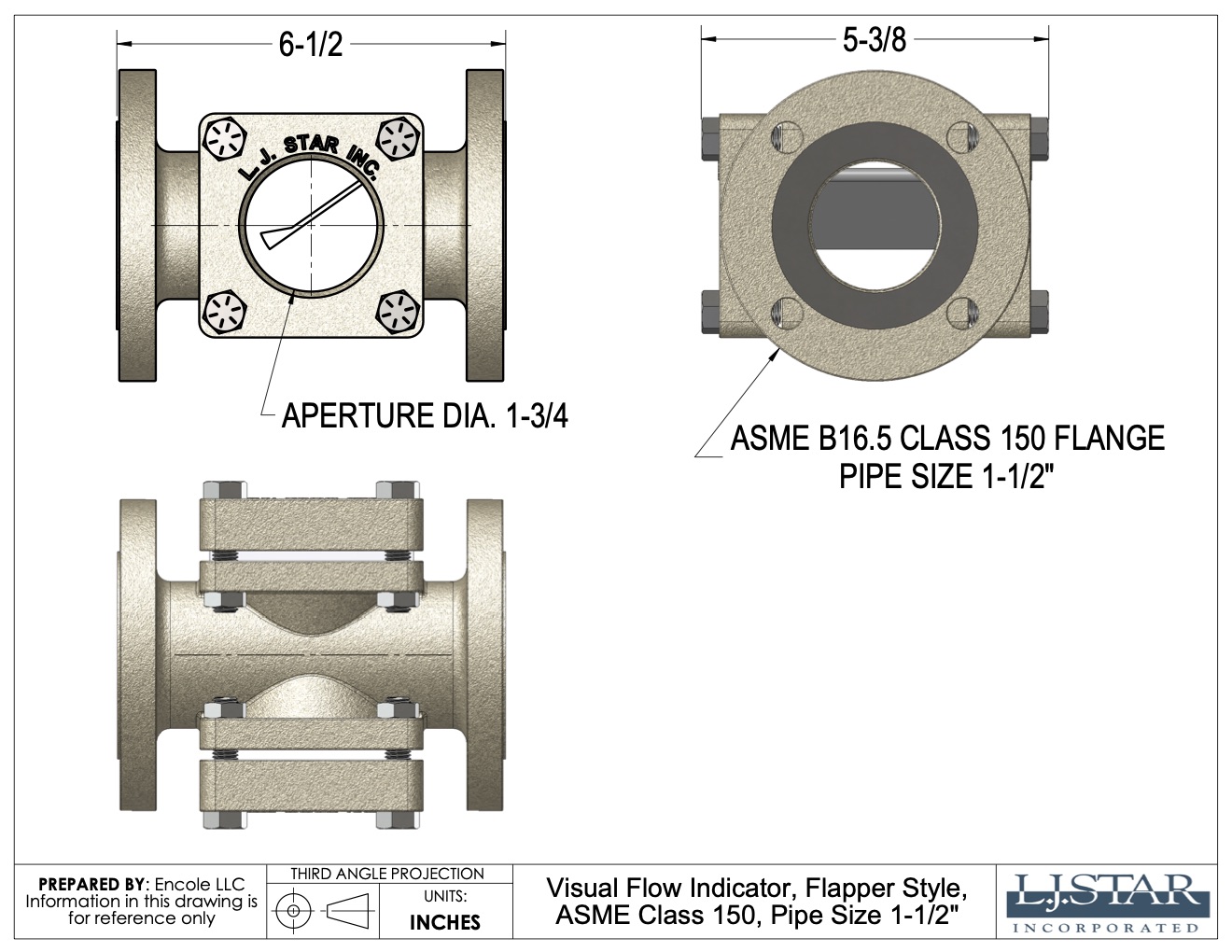

Product Drawings and CAD Models Disclaimer
Manufacturing processes and resulting tolerances may result in variations in the specifications provided. Many manufacturers consider their GD&T proprietary and do not provide this to Encole. While we believe the information to be generally correct, it is subject to change without notice and is not guaranteed. Drawings and CAD models are prepared by the Original Manufacturers or CAD expert contibutors or Encole staff.
