Full View Flow Indicators for Sterile Service
Clamp Size: 1/2 inch, Sealing Gasket: EPDM, Housing Material: Stainless Steel 316L
Full view flow indicators with KF flanges for sterile service. The flow indicator provides unobstructed 360-degree view of the process pipeline flow. This is a super efficient indicator for a quick observation inside a pipeline carrying fluids or powders. One benefit of this flow indicator is the fully exposed glass tube protected from pipe stress by precision fasteners between the heads clamping on the tie rod shoulders instead of the tube. The glass tube remains stress-free and can carry higher operating pressure. The glass is internally sealed with flush-style O-ring seals minimizing traps for bacteria or residues. Connections are Swagelock TS biopharm fittings. Use with SH- or SHX--type clamps featuring controlled gasket compression to prevent gasket extrusion and fluid holdup. All seals are USP Class VI and FDA compliant. Standard materials of construction are 316L Stainless Steel with full material traceability (ASME BPE Standards), Borosilicate glass, EPDM O-rings.

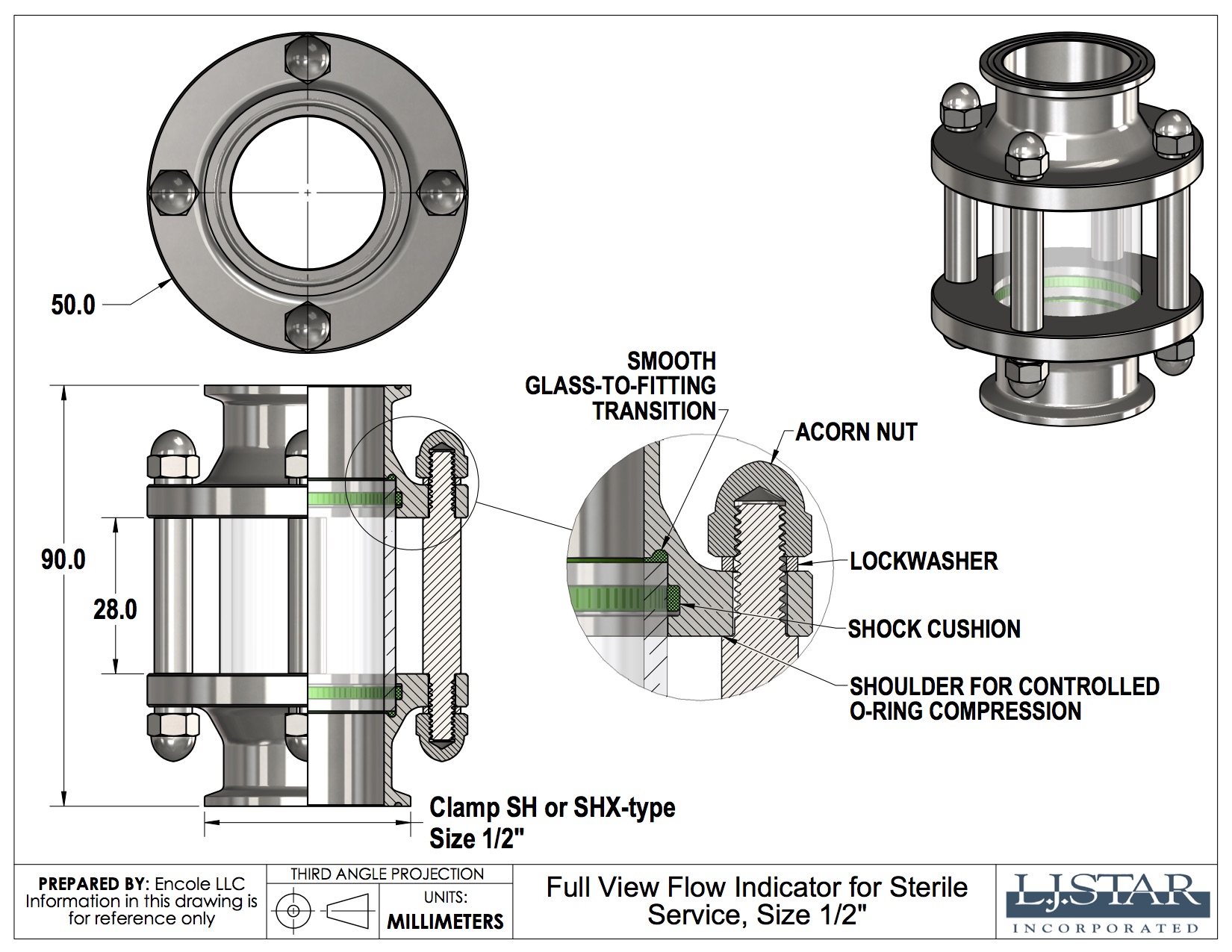

Product Drawings and CAD Models Disclaimer
Manufacturing processes and resulting tolerances may result in variations in the specifications provided. Many manufacturers consider their GD&T proprietary and do not provide this to Encole. While we believe the information to be generally correct, it is subject to change without notice and is not guaranteed. Drawings and CAD models are prepared by the Original Manufacturers or CAD expert contibutors or Encole staff.
