Swagelok Co.
Bulkhead Straight Tube Fitting Union, Metric
Material: 316 SS, Tube OD: 12 mm, Packaging Option: Standard packaging
Compression tube fitting in a bulkhead body, where the two ends have identical metric size. This fitting is designed to go through a wall, such as a side wall of a plumbing module.
Packaging Option:
·
Tube OD
12 mm
·
Material
316 SS
·
Material Standards
ASTM A276, ASME SA479, EN 1.14401
·

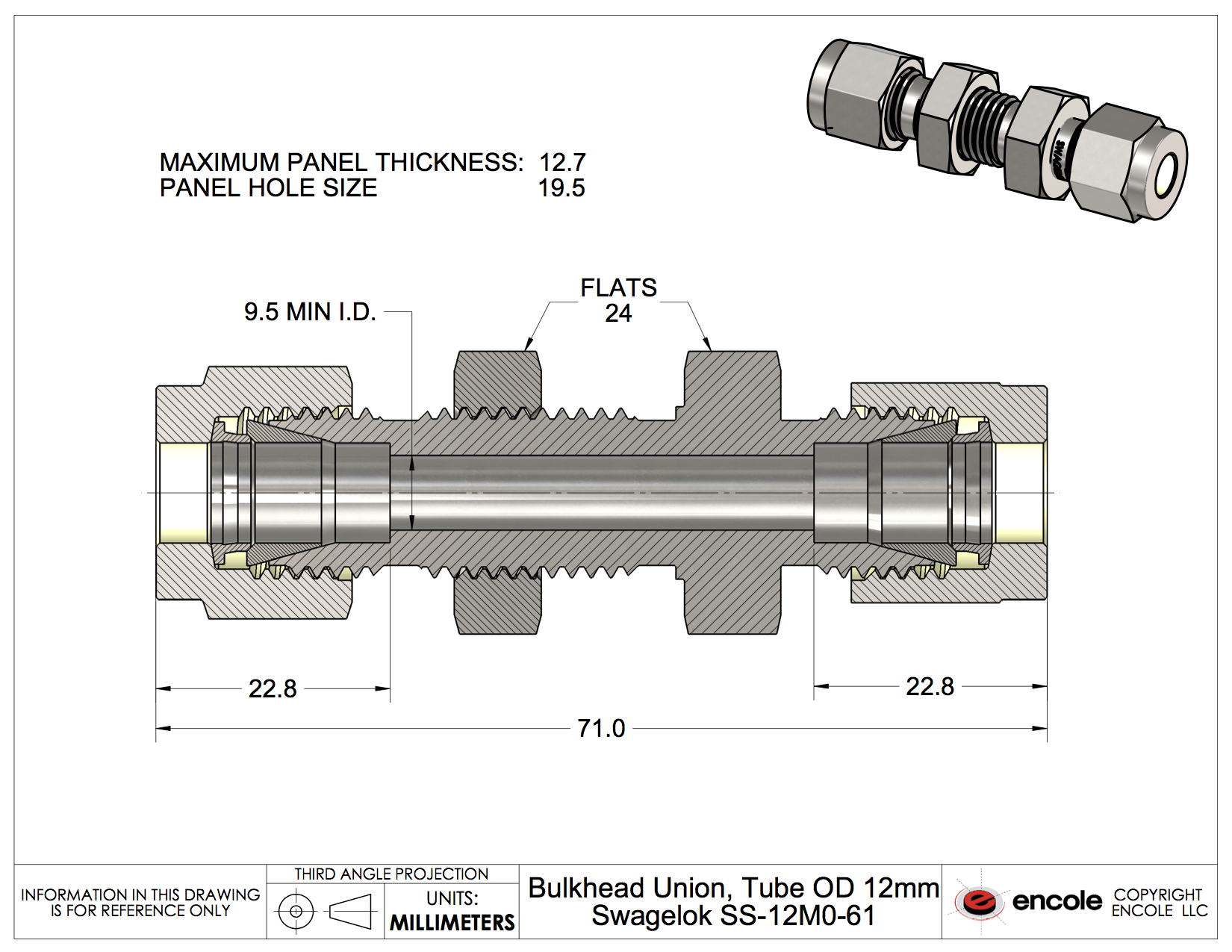

The information in this Drawing and 3-D models is provided for reference only.
Details
Product Drawings and CAD Models Disclaimer
Manufacturing processes and resulting tolerances may result in variations in the specifications provided. Many manufacturers consider their GD&T proprietary and do not provide this to Encole. While we believe the information to be generally correct, it is subject to change without notice and is not guaranteed. Drawings and CAD models are prepared by the Original Manufacturers or CAD expert contibutors or Encole staff.
Part number: 915E1506
Manufacturer's part number:
SS-12M0-61
SS-12M0-61
Manufacturer:
Swagelok Co.
Swagelok Co.
Price: $ Contact Manufacturer
Supplier:
Swagelok Inc.
Sohon, OH
Tel.: 510.933.2500
