Swagelok Co.

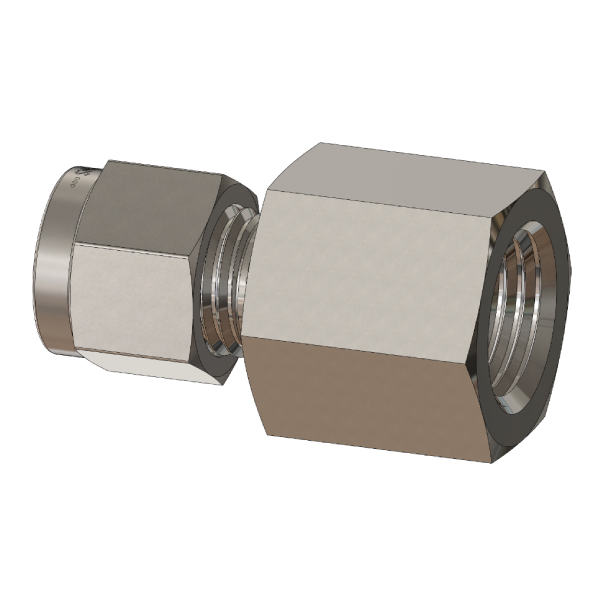

BSPT Tapered Thread Female Connector Tube Fitting
Material: 316 SS, Tube OD: 1/2”, Connection 2: Female BSPT 1/2”, Packaging Option: Standard packaging
Female connector with standard size compression tube socket on one end and a female BSPT, (Tapered Thread) port on the other end. The BSPT conforms to the British Whitworth Standard.
Packaging Option:
·
Tube OD
1/2”
·
Connection 2
Female BSPT 1/2”
·
Material
316 SS
·
Material Standards
ASTM A276, ASME SA479, EN 1.14401
·
Thread Specifications
ISO 7, BS EN 10116-1, JIS B0203
·

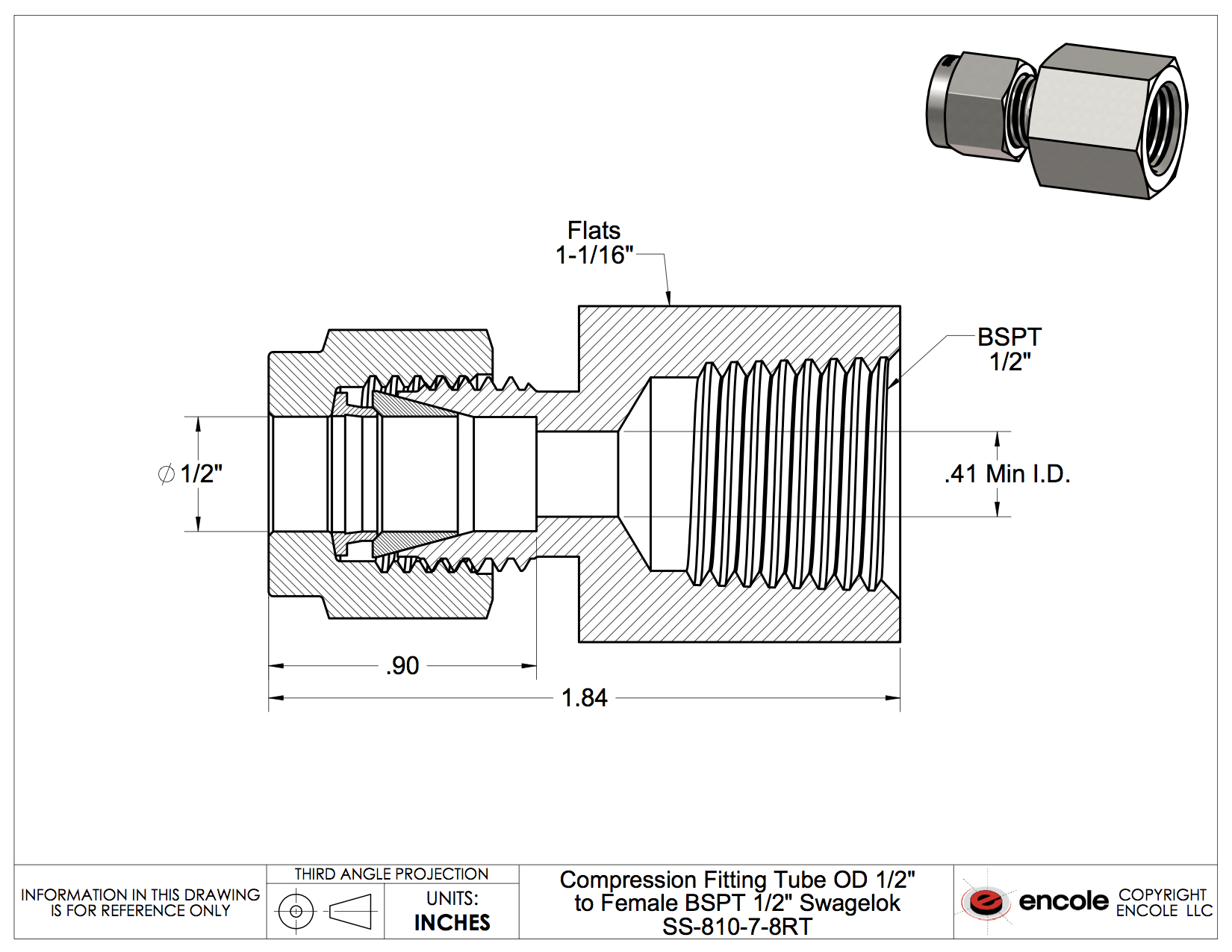

The information in this Drawing and 3-D models is provided for reference only.
Details
Product Drawings and CAD Models Disclaimer
Manufacturing processes and resulting tolerances may result in variations in the specifications provided. Many manufacturers consider their GD&T proprietary and do not provide this to Encole. While we believe the information to be generally correct, it is subject to change without notice and is not guaranteed. Drawings and CAD models are prepared by the Original Manufacturers or CAD expert contibutors or Encole staff.
Part number: 937E11011
Manufacturer's part number:
SS-810-7-8RT
SS-810-7-8RT
Manufacturer:
Swagelok Co.
Swagelok Co.
Price: $ Contact Manufacturer
Supplier:
Swagelok Inc.
Sohon, OH
Tel.: 510.933.2500
