Swagelok Co.
Female BSPT (Tapered Thread) Tube Fitting Connector, Metric
Material: 316 SS, Tube OD: 25 mm, Connection 2: Female BSPT 1”, Packaging Option: Standard packaging
Tube fitting connector with a metric size compression tube socket on one end and a female tapered thread port on the other end. The thread complies with the British Whitworth Standard, BSPT.
Packaging Option:
·
Tube OD
25 mm
·
Connection 2
Female BSPT 1”
·
Material
316 SS
·
Material Standards
ASTM A276, ASME SA479, EN 1.14401
·
Thread Specifications
ISO 7, BS EN 10226-1, JIS B0203
·

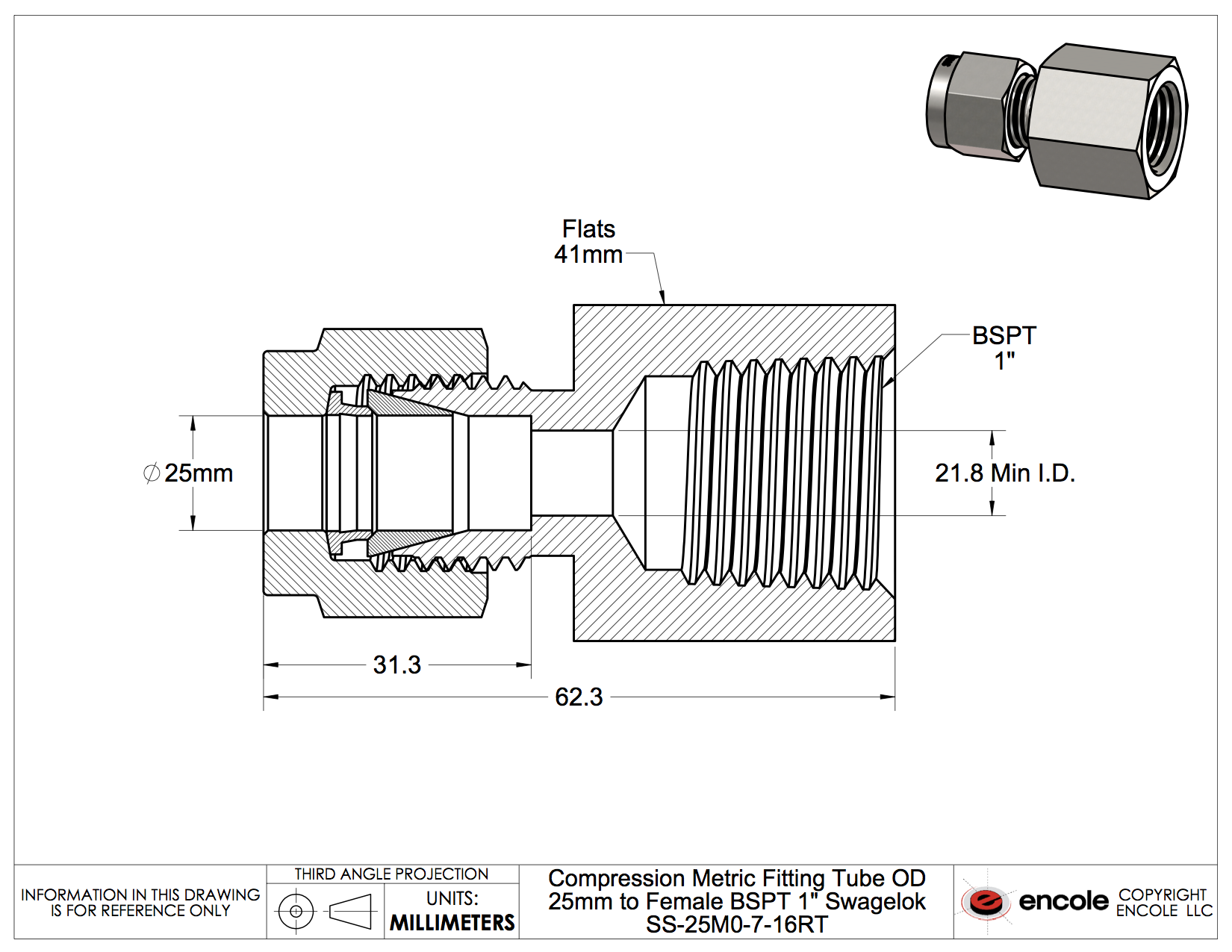

The information in this Drawing and 3-D models is provided for reference only.
Details
Product Drawings and CAD Models Disclaimer
Manufacturing processes and resulting tolerances may result in variations in the specifications provided. Many manufacturers consider their GD&T proprietary and do not provide this to Encole. While we believe the information to be generally correct, it is subject to change without notice and is not guaranteed. Drawings and CAD models are prepared by the Original Manufacturers or CAD expert contibutors or Encole staff.
Part number: 938E26026
Manufacturer's part number:
SS-25M0-7-16RT
SS-25M0-7-16RT
Manufacturer:
Swagelok Co.
Swagelok Co.
Price: $ Contact Manufacturer
Supplier:
Swagelok Inc.
Sohon, OH
Tel.: 510.933.2500
