Positionable SAE/MS Straight Thread 90-Degree Tube Fitting Elbow
Material: 316 SS, Tube OD: 1-1/4”, Connection 2: Thread 1 5/8-12, Packaging Option: Standard packaging

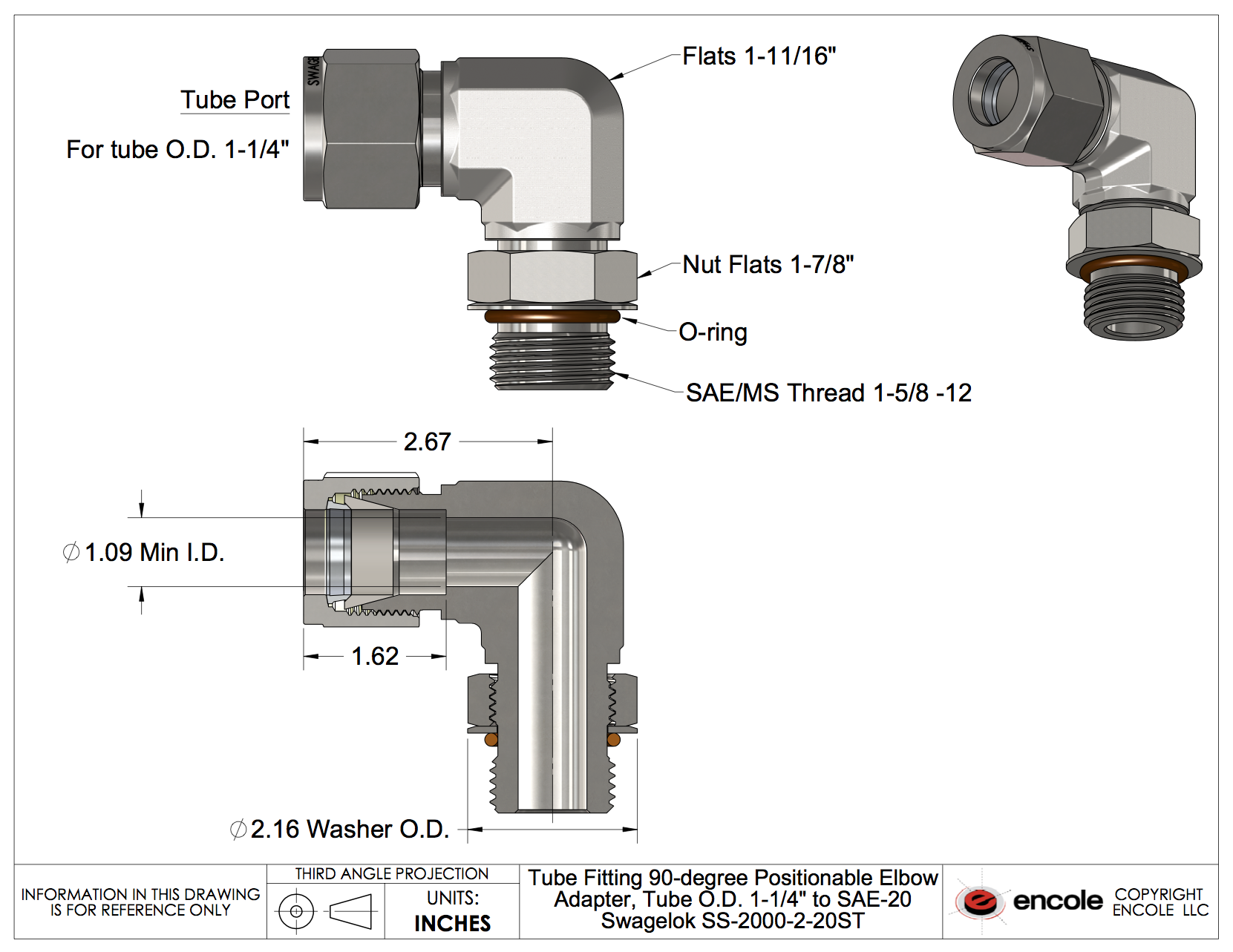

90-degree tube fitting elbow with a straight SAE/MS thread. The fitting can be freely rotated around the bore axis and secured with the included nut and a washer. The kit comes with a 70-durometer Buna-N O-ring.
Packaging Option:
·
Tube OD
1-1/4”
·
Connection 2
Thread 1 5/8-12
·
Material
316 SS
·
Material Standards
ASTM A182, ASME SA182, EN 1.4401
·
Thread Specifications
ASME B1.1
·
O-ring
Included O-ring is 70 durometer Buna-N.
·
The information in this Drawing and 3-D models is provided for reference only.
Details
Product Drawings and CAD Models Disclaimer
Manufacturing processes and resulting tolerances may result in variations in the specifications provided. Many manufacturers consider their GD&T proprietary and do not provide this to Encole. While we believe the information to be generally correct, it is subject to change without notice and is not guaranteed. Drawings and CAD models are prepared by the Original Manufacturers or CAD expert contibutors or Encole staff.
Part number: 966E15013
Manufacturer's part number:
SS-2000-2-20ST
SS-2000-2-20ST
