Swagelok Co.
Tube Fitting Adapter, SAE J514
Material: 316 SS, Tube OD: 5/8”, Connection 2: SAE-10

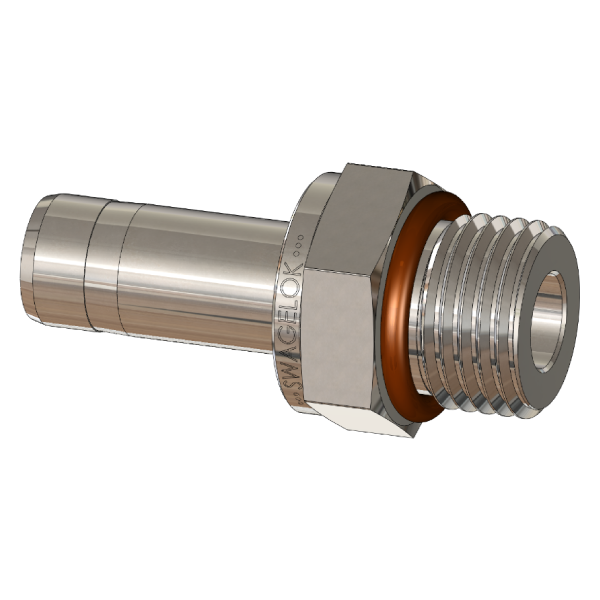

Tube fitting SAE adapter, where one end is compression tube stub and the other end is a SAE J514 male boss.
·
Tube OD
5/8”
·
Connection 2
SAE-10
·
Material
316 SS
·
Packaging Option
·
Material Standards
ASTM A276, ASME SA479, EN 1.14401
·
Thread Specifications
ASME B1.1
·
SAE Standard
Fitting has standard geometry conforming to SAE J514 male boss. Fits into SAE J1926/1 and ISO 11926-1 female port.
·
O-ring
Included O-ring is 70 durometer Buna-N.
Included O-ring is 70 durometer Buna-N.
·
Packaging Remarks

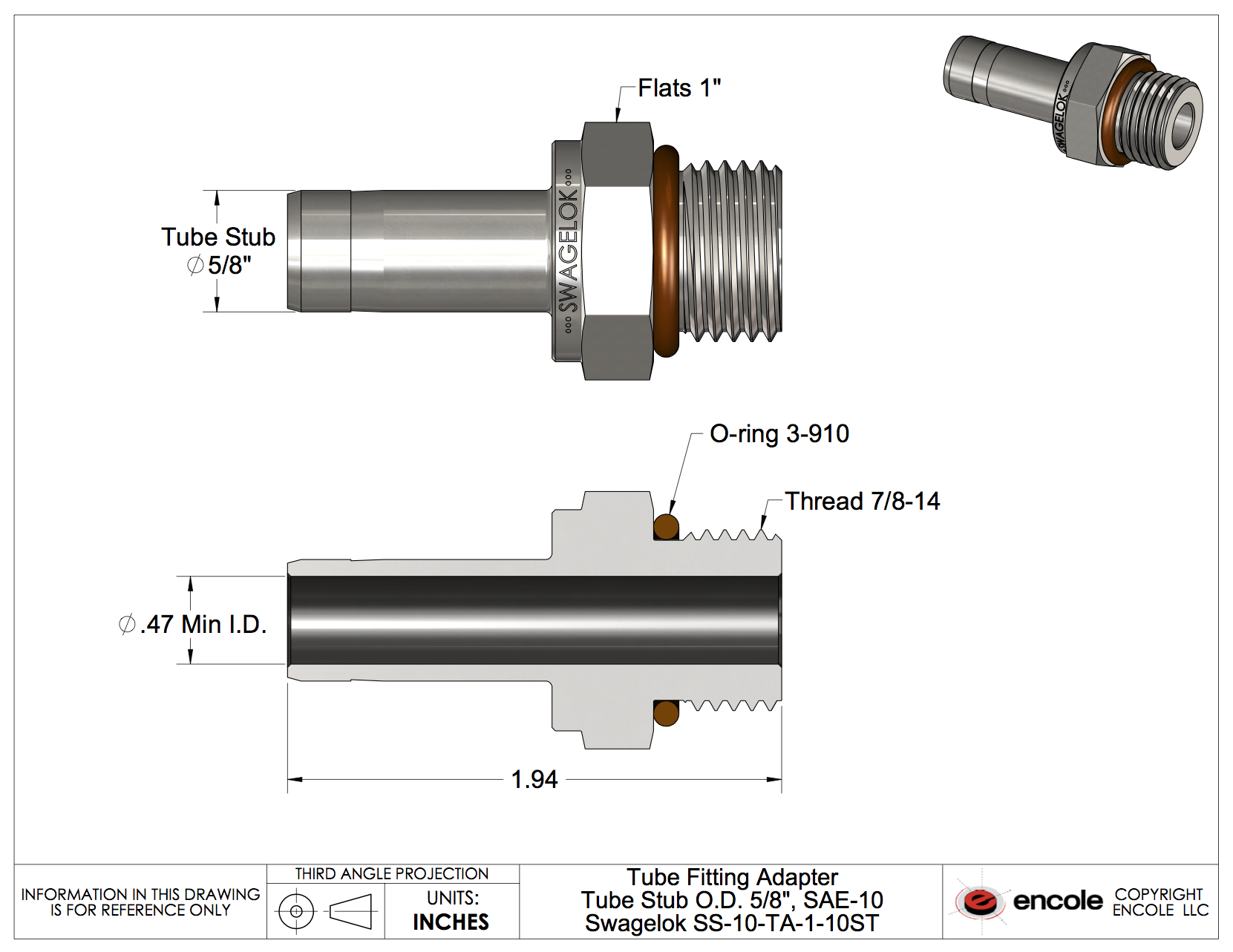

The information in this Drawing and 3-D models is provided for reference only.
Details
Product Drawings and CAD Models Disclaimer
Manufacturing processes and resulting tolerances may result in variations in the specifications provided. Many manufacturers consider their GD&T proprietary and do not provide this to Encole. While we believe the information to be generally correct, it is subject to change without notice and is not guaranteed. Drawings and CAD models are prepared by the Original Manufacturers or CAD expert contibutors or Encole staff.
Part number: 994E29015
Manufacturer's part number:
SS-10-TA-1-10ST
SS-10-TA-1-10ST
Manufacturer:
Swagelok Co.
Swagelok Co.
Price: $ Contact Manufacturer
Supplier:
Swagelok Inc.
Sohon, OH
Tel.: 510.933.2500
