Sanitary Clamps

Stainless Steel Sanitary clamps made specifically for the Biotech and Pharmaceutical Industries.

L.J. Star, Inc

Hygienic Clamps, SH Type I, 316 Stainless Steel, Wing Nut

Hygienic Clamps, SH Type I, 316 Stainless Steel, Wing Nut
SH Type I Clamps, standard in 316 Stainless Steel, the most popular clamp for sanitary piping systems. These clamps incorporate a two-pin hinge allowing for a more uniform compression of the gasket.
The clamps come standard with a stainless steel wing nut. A unique feature of SH Type I clamps is their latch safety. The gate-style opening combined with the stepped eyebolt prevent accidental bumping-off of the bolt.
Clamp Size Clamp Material Max Operating Pressure Max Operating Temp Mfg P/N Encole P/N Price
3/4 AISI 316 870 psi 450 F C005.6.SH1 169A1000 $66.00 per package of 4
1-1/2 AISI 316 870 psi 450 F C010.6.SH1 169A1001 $73.00 per package of 4
2 AISI 316 870 psi 450 F C020.6.SH1 169A1002 $87.68 per package of 4
2-1/2 AISI 316 870 psi 450 F C025.6.SH1 169A1003 $107.92 per package of 4
3 AISI 316 696 psi 450 F C030.6.SH1 169A1004 $116.40 per package of 4
3-1/2 AISI 316 696 psi 450 F C035.6.SH1 169A1005 $77.26 per package of 2
4 AISI 316 610 psi 450 F C040.6.SH1 169A1006 $80.56 per package of 2
4-1/2 AISI 316 550 psi 450 F C045.6.SH1 169A1007 $89.80 per package of 2
5 AISI 316 522 psi 450 F C050.6.SH1 169A1008 $45.50 each
5-1/2 AISI 316 522 psi 450 F C055.6.SH1 169A1009 $61.70 each
6 AISI 316 522 psi 450 F C060.6.SH1 169A1010 $78.55 each
6-5/8 AISI 316 480 psi 450 F C066.6.SH1 169A1011 $96.70 each
8 AISI 316 348 psi 450 F C080.6.SH1 169A1012 $116.03 each
8-5/8 AISI 316 302 psi 450 F C086.6.SH1 169A1013 $134.90 each

L.J. Star, Inc

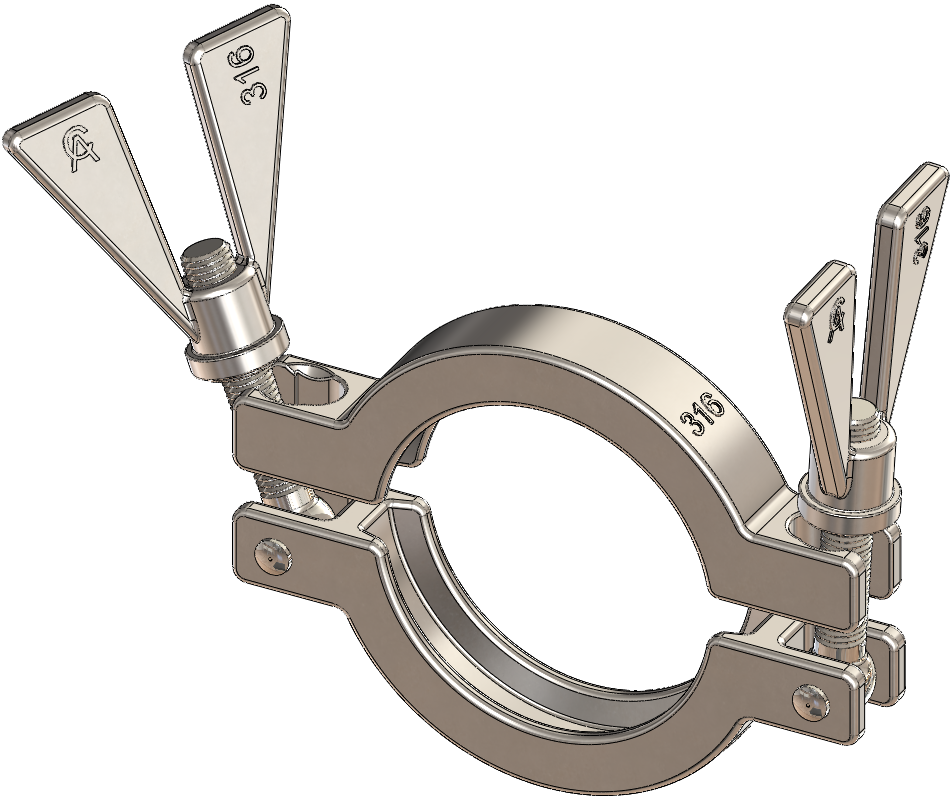

Hygienic Clamps, SH Type II, 316 Stainless Steel, Double Wing Nuts

Hygienic Clamps, SH Type II, 316 Stainless Steel, Double Wing Nuts
SH Type II Clamps, standard in 316 Stainless Steel are a double bolt design; the clamps come standard with stainless steel wing nuts, one at each end. Similar to Type I clamps, SH Type II clamps have a unique latch safety, where the gate-style openings combined with the stepped eyebolts prevent accidental bumping-off of the bolts.
Clamp Size Clamp Material Max Operating Pressure Max Operating Temp Mfg P/N Encole P/N Price
5-1/2 AISI 316 522 psi 450 F C055.6.SH2 219A1000 $95.68 each
6 AISI 316 522 psi 450 F C060.6.SH2 219A1001 $109.55 each
6-5/8 AISI 316 522 psi 450 F C066.6.SH2 219A1002 $114.37 each
8 AISI 316 348 psi 450 F C080.6.SH2 219A1003 $148.10 each
8-5/8 AISI 316 278 psi 450 F C086.6.SH2 219A1004 $152.73 each
10 AISI 316 278 psi 450 F C100.6.SH2 219A1005 $198.60 each
10-3/4 AISI 316 206 psi 450 F C108.6.SH2 219A1006 $212.15 each
12 AISI 316 171 psi 450 F C120.6.SH2 219A1007 $300.85 each
12-3/4 AISI 316 131 psi 450 F C128.6.SH2 219A1008 $324.52 each

L.J. Star, Inc

Hygienic Clamps, SHX Type I, 316 Stainless Steel, Hex Nut

Hygienic Clamps, SHX Type I, 316 Stainless Steel, Hex Nut
SHX Type I Clamps, standard in 316 Stainless Steel. The SHX Type I clamps are similar to SH Type I clamps, except the wing nut is replaced with a hex nut.

The clamp incorporates a two-pin hinge allowing for a more uniform compression of the gasket. The SHX Type I clamp is a single bolt design; the clamp comes standard with a stainless steel hex nut.
Clamp Size Clamp Material Max Operating Pressure Max Operating Temp Mfg P/N Encole P/N Price
3/4 AISI 316 1160 psi 450 F C005.6.SHX1 220A1000 $56.20 per package of 4
1-1/2 AISI 316 870 psi 450 F C010.6.SHX1 220A1001 $71.92 per package of 4
2 AISI 316 870 psi 450 F C020.6.SHX1 220A1002 $74.76 per package of 3
2-1/2 AISI 316 870 psi 450 F C025.6.SHX1 220A1003 $83.94 per package of 3
3 AISI 316 870 psi 450 F C030.6.SHX1 220A1004 $93.15 per package of 3
3-1/2 AISI 316 870 psi 450 F C035.6.SHX1 220A1005 $79.26 per package of 2
4 AISI 316 610 psi 450 F C040.6.SHX1 220A1006 $86.56 per package of 2
5 AISI 316 522 psi 450 F C050.6.SHX1 220A1008 $97.00 per package of 2
6 AISI 316 522 psi 450 F C060.6.SHX1 220A1010 $83.55 each
8 AISI 316 348 psi 450 F C080.6.SHX1 220A1012 $126.03 each

L.J. Star, Inc

Hygienic Clamps, SHX Type II, 316 Stainless Steel, Double Hex Nuts

Hygienic Clamps, SHX Type II, 316 Stainless Steel, Double Hex Nuts
SHX Type II Clamps, standard in 316 Stainless Steel. The SHX Type II clamp is similar to SH Type II clamp, except the wing nuts are replaced with two hex nuts, one on each end of the clamp.
Clamp Size Clamp Material Max Operating Pressure Max Operating Temp Mfg P/N Encole P/N Price
5-1/2 AISI 316 522 psi 450 F C055.6.SHX2 221A1000 $69.00 each
6 AISI 316 428 psi 450 F C060.6.SHX2 221A1001 $83.17 each
6-5/8 AISI 316 400 psi 450 F C066.6.SHX2 221A1002 $99.00 each
8 AISI 316 342 psi 450 F C080.6.SHX2 221A1003 $127.00 each
8-5/8 AISI 316 330 psi 450 F C086.6.SHX2 221A1004 $138.00 each
10 AISI 316 268 psi 450 F C100.6.SHX2 221A1005 $166.00 each
10-3/4 AISI 316 258 psi 450 F C108.6.SHX2 221A1006 $177.25 each
12 AISI 316 171 psi 450 F C120.6.SHX2 221A1007 $212.25 each
12-3/4 AISI 316 162 psi 450 F C128.6.SHX2 221A1008 $235.75 each

L.J. Star, Inc

Hygienic Metric Clamps, SH Type I, 316 Stainless Steel, Wing Nut

Hygienic Metric Clamps, SH Type I, 316 Stainless Steel, Wing Nut
SH Type I Metric Clamp, standard in 316 Stainless Steel. All features are the same as on SH Type I clamp, except the nominal clamp size is metric.

Standard SH Type I Clamp are the most popular clamp for sanitary piping systems. The clamp incorporates a two-pin hinge allowing for a more uniform compression of the gasket. The SH Type I clamps come with a stainless steel wing nut. A unique feature of SH Type I clamps is their latch safety. The gate-style opening combined with the stepped eyebolt prevent accidental bumping-off of the bolt.
Clamp Size Clamp Material Max Operating Pressure Max Operating Temp Mfg P/N Encole P/N Price
ISO-20 AISI 316 870 psi 450 F CL SH D010 222A1000 $99.00 per package of 4
ISO-25 AISI 316 870 psi 450 F CL SH D025 222A1001 $119.20 per package of 4
ISO-50 AISI 316 870 psi 450 F CL SH D050 222A1002 $98.34 per package of 3
ISO-65 AISI 316 696 psi 450 F CL SH 0300 222A1003 $125.61 per package of 3
ISO-80 AISI 316 610 psi 450 F CL SH 0350 222A1004 $104.94 per package of 2
ISO-100 AISI 316 522 psi 450 F CL SH 0400 222A1005 $185.64 per package of 3
ISO-125 AISI 316 348 psi 450 F CH SH 0550 222A1006 $79.80 each
ISO-150 AISI 316 278 psi 450 F CL SH 0658 222A1007 $90.75 each
ISO-200 AISI 316 174 psi 450 F CL SH 0858 222A1008 $138.50 each

L.J. Star, Inc

Hygienic Metric Clamps, SH Type 2 , 316 Stainless Steel, Wing Nut

Hygienic Metric Clamps, SH Type 2 , 316 Stainless Steel, Wing Nut
SH Metric Clamps in 316 Stainless Steel. Double wing nuts
Clamp Size Clamp Material Max Operating Pressure Max Operating Temp Mfg P/N Encole P/N Price
ISO-250 AISI 316 80 psi 450 F CL SH 1058 1386A0001 $298.60 each
ISO-300 AISI 316 60 psi 450 F CL SH 1258 1386A0002 $395.14 each

L.J. Star, Inc

Hygienic Clamps, SSH Type, 304 Stainless Steel, Brass Nuts

Hygienic Clamps, SSH Type, 304 Stainless Steel, Brass Nuts
Hygienic Clamps, SSH Type, 304 Stainless Steel, with Brass Nuts
Clamp Size Clamp Material Max Operating Pressure Max Operating Temp Mfg P/N Encole P/N Price
3/4 AISI 304 1160 psi 450 F C005.6.SSH 223A1000 $56.79 per package of 3
1-1/2 AISI 304 1450 psi 450 F C010.4.SSH 223A1003 $59.78 per package of 2
2 AISI 304 1450 psi 450 F C020.4.SSH 223A1004 $74.90 per package of 2
2-1/2 AISI 304 1305 psi 450 F C025.4.SSH 223A1005 $95.56 per package of 2
3 AISI 304 1160 psi 450 F C030.4.SSH 223A1006 $98.20 per package of 2
3-1/2 AISI 304 1015 psi 450 F C035.4.SSH 223A1007 $116.30 per package of 2
4 AISI 304 870 psi 450 F C040.4.SSH 223A1008 $109.40 per package of 2
6 AISI 304 725 psi 450 F C060.4.SSH 223A1010 $99.60 each

L.J. Star, Inc

Hygienic Clamps to ASME VIII Pressure Vessel Code

Hygienic Clamps to ASME VIII Pressure Vessel Code
These hygienic ASME Clamps are designed for pressure vessels, filter housing and other pressure-intensive applications operating under sterile conditions. The clamps are certified to meet the requirements of ASME Section VIII Appendix 24 of the Pressure Vessel Code.
All components of the ASME Clamp are made from fully traceable 316 Stainless Steel. Maximum operating pressure is 2,480 psi @ 100ºF | 2,393 psi @ 450ºF.
Clamp Size Clamp Material Max Operating Pressure Max Operating Temp Mfg P/N Encole P/N Price
1 AISI 316 2480 psi 450 F C010.6.ASME 224A1000 $252.82 each
2 AISI 316 1595 psi 450 F C020.6.ASME 224A1001 $270.89 each
3 AISI 316 1595 psi 450 F C030.6.ASME 224A1002 $379.24 each
4 AISI 316 1015 psi 450 F C040.6.ASME 224A1003 $415.36 each
6 AISI 316 493 psi 450 F C060.6.ASME 224A1004 $457.50 each
8 AISI 316 373 psi 450 F C080.6.ASME 224A1006 $493.62 each
10 AISI 316 174 psi 450 F C100.6.ASME 224A1007 $553.81 each
