Rectangular Glasses | Encole

Rectangular Glasses

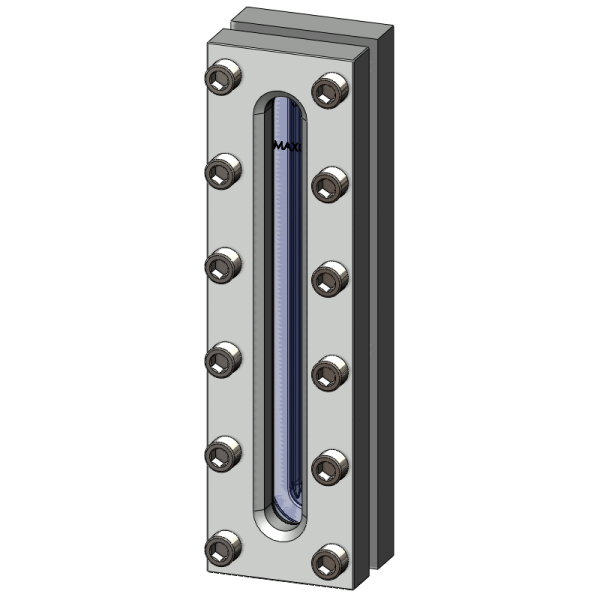

Obround and rectangular sight windows with a weld-on base pad. In typical applications the base flange is welded to the process vessel, and the rest of the sight window components mount into that base flange. Glass is sandwiched between a sealing gasket and a cushion gasket. Cover flange is bolted to the base flange holding the assembly together. Gaskets, mounting hardware and the glass can be replaced during scheduled service intervals or as needed. Choose from obround or rectangular sight glasses. Rectangular and obround sightglass fittings are common for viewing inside pipelines, pressure vessels, liquid tanks. Primarily used for liquid level observation.

L.J. Star, Inc

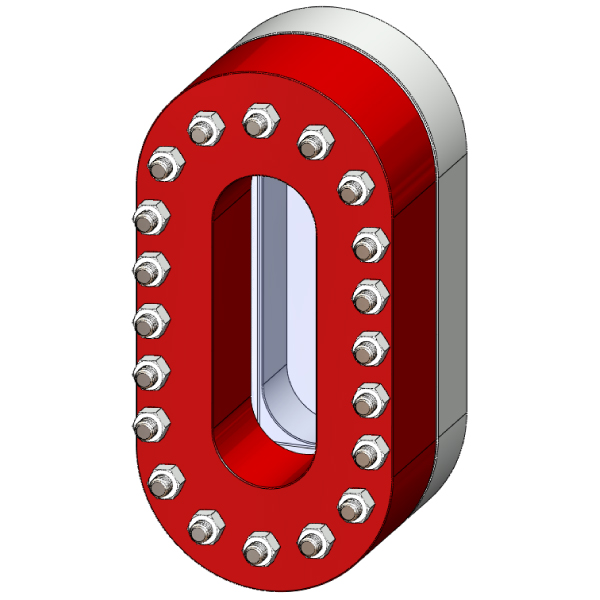

Obround Weld Pad Gauge Sight Glasses

Obround Weld Pad Gauge Sight Glasses
Obround sight glasses designed for visual inspection of levels inside a tank or a pipeline. The sight glass base flange is a weld pad designed to be welded directly to the pressure vessel. The glass is sandwiched between a sealing gasket and a cushion gasket held in place with a clamping flange. The cushion gasket is made from a material harder than the sealing gasket to insure proper compression. Glass is clear, made from tempered borosilicate. These windows are suitable for the ASME pressure code requirements.
Length width Housing Material Window Material Mfg P/N Encole P/N Price
10.000 inch 5.000 inch AISI 304L Borosilicate OBWP2-6-T304L-BORO-T304-EPDM-T304-T304 1395A0001 $2465.00 each
10.000 inch 5.000 inch AISI 316L Borosilicate OBWP2-6-T316L-BORO-T304-EPDM-T304-T304 1395A0002 $2465.00 each
10.000 inch 5.000 inch SA516-70 Borosilicate OBWP2-6-SA516-BORO-T304-EPDM-T304-T304 1395A0003 $2065.00 each
0.000 inch 5.000 inch SA240 Borosilicate OBWP2-6-SA240-BORO-T304-EPDM-T304-T304 1395A0004 $2065.00 each
16.000 inch 5.000 inch AISI 304L Borosilicate OBWP2-12-T304L-BORO-T304-EPDM-T304-T304 1395A0005 $3639.00 each
16.000 inch 5.000 inch AISI 316L Borosilicate OBWP2-12-T316L-BORO-T304-EPDM-T304-T304 1395A0006 $3639.00 each
16.000 inch 5.000 inch SA516-70 Borosilicate OBWP2-12-SA516-BORO-T304-EPDM-T304-T304 1395A0007 $2874.00 each
16.000 inch 5.000 inch SA240 Borosilicate OBWP2-12-SA240-BORO-T304-EPDM-T304-T304 1395A0008 $2874.00 each
22.000 inch 5.000 inch AISI 304L Borosilicate OBWP2-18-T304L-BORO-T304-EPDM-T304-T304 1395A0009 $4095.00 each
22.000 inch 5.000 inch AISI 316L Borosilicate OBWP2-18-T316L-BORO-T304-EPDM-T304-T304 1395A0010 $4095.00 each
22.000 inch 5.000 inch SA516-70 Borosilicate OBWP2-18-SA516-BORO-T304-EPDM-T304-T304 1395A0011 $4095.00 each
22.000 inch 5.000 inch SA240 Borosilicate OBWP2-18-SA240-BORO-T304-EPDM-T304-T304 1395A0012 $4095.00 each
28.000 inch 5.000 inch AISI304L Borosilicate OBWP2-24-T304L-BORO-T304-EPDM-T304-T304 1395A0013 $5937.00 each
28.000 inch 5.000 inch AISI316L Borosilicate OBWP2-24-T316L-BORO-T304-EPDM-T304-T304 1395A0014 $5937.00 each
28.000 inch 5.000 inch SA516-70 Borosilicate OBWP2-24-SA516-BORO-T304-EPDM-T304-T304 1395A0015 $4580.00 each
28.000 inch 5.000 inch SA240 Borosilicate OBWP2-24-SA240-BORO-T304-EPDM-T304-T304 1395A0016 $4580.00 each
11.000 inch 6.000 inch AISI 304L Borosilicate OBWP3-6-T304L-BORO-T304-EPDM-T304-T304 1395A0017 $3030.00 each
11.000 inch 6.000 inch AISI 316L Borosilicate OBWP3-6-T316L-BORO-T304-EPDM-T304-T304 1395A0018 $3030.00 each
11.000 inch 6.000 inch SA516-70 Borosilicate OBWP3-6-SA516-BORO-T304-EPDM-T304-T304 1395A0019 $2699.00 each
11.000 inch 6.000 inch SA240 Borosilicate OBWP3-6-SA240-BORO-T304-EPDM-T304-T304 1395A0020 $2699.00 each
17.000 inch 6.000 inch AISI 304L Borosilicate OBWP3-12-T304L-BORO-T304-EPDM-T304-T304 1395A0021 $4305.00 each
17.000 inch 6.000 inch AISI 316L Borosilicate OBWP3-12-T316L-BORO-T304-EPDM-T304-T304 1395A0022 $4305.00 each
17.000 inch 6.000 inch SA516-70 Borosilicate OBWP3-12-SA516-BORO-T304-EPDM-T304-T304 1395A0023 $3503.00 each
17.000 inch 6.000 inch SA240 Borosilicate OBWP3-12-SA240-BORO-T304-EPDM-T304-T304 1395A0024 $3503.00 each
23.000 inch 6.000 inch AISI 304L Borosilicate OBWP3-18-T304L-BORO-T304-EPDM-T304-T304 1395A0025 $6177.00 each
23.000 inch 6.000 inch AISI 316L Borosilicate OBWP3-18-T316L-BORO-T304-EPDM-T304-T304 1395A0026 $6177.00 each
23.000 inch 6.000 inch SA516-70 Borosilicate OBWP3-18-SA516-BORO-T304-EPDM-T304-T304 1395A0027 $4784.00 each
23.000 inch 6.000 inch SA240 Borosilicate OBWP3-18-SA240-BORO-T304-EPDM-T304-T304 1395A0028 $4784.00 each
29.000 inch 6.000 inch AISI 304L Borosilicate OBWP3-24-T304L-BORO-T304-EPDM-T304-T304 1395A0029 $7459.00 each
29.000 inch 6.000 inch AISI 316L Borosilicate OBWP3-24-T316L-BORO-T304-EPDM-T304-T304 1395A0030 $7459.00 each
29.000 inch 6.000 inch SA516-70 Borosilicate OBWP3-24-SA516-BORO-T304-EPDM-T304-T304 1395A0031 $5507.00 each
29.000 inch 6.000 inch SA240 Borosilicate OBWP3-24-SA240-BORO-T304-EPDM-T304-T304 1395A0032 $5507.00 each
11.000 inch 7.000 inch AISI 304L Borosilicate OBWP4-6-T304L-BORO-T304-EPDM-T304-T304 1395A0033 $3611.00 each
11.000 inch 7.000 inch AISI 316L Borosilicate OBWP4-6-T316L-BORO-T304-EPDM-T304-T304 1395A0034 $3611.00 each
11.000 inch 7.000 inch SA516-70 Borosilicate OBWP4-6-SA516-BORO-T304-EPDM-T304-T304 1395A0035 $2791.00 each
11.000 inch 7.000 inch SA240 Borosilicate OBWP4-6-SA240-BORO-T304-EPDM-T304-T304 1395A0036 $2791.00 each
17.000 inch 7.000 inch AISI 304L Borosilicate OBWP4-12-T304L-BORO-T304-EPDM-T304-T304 1395A0037 $5011.00 each
17.000 inch 7.000 inch AISI 316L Borosilicate OBWP4-12-T316L-BORO-T304-EPDM-T304-T304 1395A0038 $5011.00 each
17.000 inch 7.000 inch SA516-70 Borosilicate OBWP4-12-SA516-BORO-T304-EPDM-T304-T304 1395A0039 $4042.00 each
17.000 inch 7.000 inch SA240 Borosilicate OBWP4-12-SA240-BORO-T304-EPDM-T304-T304 1395A0040 $4042.00 each
23.000 inch 7.000 inch AISI 304L Borosilicate OBWP4-18-T304L-BORO-T304-EPDM-T304-T304 1395A0041 $7226.00 each
23.000 inch 7.000 inch AISI 316L Borosilicate OBWP4-18-T316L-BORO-T304-EPDM-T304-T304 1395A0042 $7226.00 each
23.000 inch 7.000 inch SA516-70 Borosilicate OBWP4-18-SA516-BORO-T304-EPDM-T304-T304 1395A0043 $5496.00 each
23.000 inch 7.000 inch SA240 Borosilicate OBWP4-18-SA240-BORO-T304-EPDM-T304-T304 1395A0044 $5496.00 each
29.000 inch 7.000 inch AISI 304L Borosilicate OBWP4-24-T304L-BORO-T304-EPDM-T304-T304 1395A0045 $9651.00 each
29.000 inch 7.000 inch AISI 316L Borosilicate OBWP4-24-T316L-BORO-T304-EPDM-T304-T304 1395A0046 $9651.00 each
29.000 inch 7.000 inch SA516-70 Borosilicate OBWP4-24-SA516-BORO-T304-EPDM-T304-T304 1395A0047 $7298.00 each
29.000 inch 7.000 inch SA240 Borosilicate OBWP4-24-SA240-BORO-T304-EPDM-T304-T304 1395A0048 $7298.00 each

Papenmeier - F. H. / Lumiglas

Rectangular Sightglass Fittings in Carbon Steel

Rectangular Sightglass Fittings in Carbon Steel
Carbon steel base flange is welded onto the vessel wall. The glass is sandwiched between gaskets on both sides and is held in place with a cover flange, bolted to the base flange. For use as a fluid level visual indicator inside silos, pressure tanks, and internals of pipelines.
Length width Housing Material Window Material Mfg P/N Encole P/N Price
250.00 mm 70.00 mm RSt 37-2 Soda lime RSF1-8-BASE-RST-SODA-Rfx-KLG-FLG-RST 1405A0001 $443.00 each
250.00 mm 70.00 mm RSt 37-2 Borosilicate RSF1-8-BASE-RST-BORO-Rfx-KLG-FLG-RST 1405A0002 $451.00 each
300.00 mm 70.00 mm RSt 37-2 Soda lime RSF1-10-BASE-RST-SODA-Rfx-KLG-FLG-RST 1405A0003 $525.00 each
300.00 mm 70.00 mm RSt 37-2 Borosilicate RSF1-10-BASE-RST-BORO-Rfx-KLG-FLG-RST 1405A0004 $533.00 each
350.00 mm 70.00 mm RSt 37-2 Soda lime RSF1-12-BASE-RST-SODA-Rfx-KLG-FLG-RST 1405A0005 $610.00 each
350.00 mm 70.00 mm RSt 37-2 Borosilicate RSF1-12-BASE-RST-BORO-Rfx-KLG-FLG-RST 1405A0006 $618.00 each
400.00 mm 70.00 mm RSt 37-2 Soda lime RSF1-14-BASE-RST-SODA-Rfx-KLG-FLG-RST 1405A0007 $703.00 each
400.00 mm 70.00 mm RSt 37-2 Borosilicate RSF1-14-BASE-RST-BORO-Rfx-KLG-FLG-RST 1405A0008 $711.00 each
500.00 mm 70.00 mm RSt 37-2 Soda lime RSF2-18-BASE-RST-SODA-Rfx-KLG-FLG-RST 1405A0009 $900.00 each
500.00 mm 70.00 mm RSt 37-2 Borosilicate RSF2-18-BASE-RST-BORO-Rfx-KLG-FLG-RST 1405A0010 $908.00 each
600.00 mm 70.00 mm RSt 37-2 Soda lime RSF2-22-BASE-RST-SODA-Rfx-KLG-FLG-RST 1405A0011 $1069.00 each
600.00 mm 70.00 mm RSt 37-2 Borosilicate RSF2-22-BASE-RST-BORO-Rfx-KLG-FLG-RST 1405A0012 $1077.00 each
700.00 mm 70.00 mm RSt 37-2 Soda lime RSF2-26-BASE-RST-SODA-Rfx-KLG-FLG-RST 1405A0013 $1247.00 each
700.00 mm 70.00 mm RSt 37-2 Borosilicate RSF2-26-BASE-RST-BORO-Rfx-KLG-FLG-RST 1405A0014 $1255.00 each
800.00 mm 70.00 mm RSt 37-2 Soda lime RSF2-30-BASE-RST-SODA-Rfx-KLG-FLG-RST 1405A0015 $1350.00 each
800.00 mm 70.00 mm RSt 37-2 Borosilicate RSF2-30-BASE-RST-BORO-Rfx-KLG-FLG-RST 1405A0016 $1358.00 each
1000.00 mm 70.00 mm RSt 37-2 Soda lime RSF4-38-BASE-RST-SODA-Rfx-KLG-FLG-RST 1405A0017 $2006.00 each
1000.00 mm 70.00 mm RSt 37-2 Borosilicate RSF4-38-BASE-RST-BORO-Rfx-KLG-FLG-RST 1405A0018 $2014.00 each
